Component Locations
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2005 Acura NSX, 2004 Acura NSX, 2003 Acura NSX-T, 2003 Acura NSX, and 2002 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.
For a list of related components and their locations, see COMPONENT LOCATIONS .
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Dash Fuse Box | Under left side of dash, at kick panel |
| Driver's Seat Belt Switch | In driver's seat belt buckle |
| Ignition Key Switch | Underside of steering column, on ignition switch |

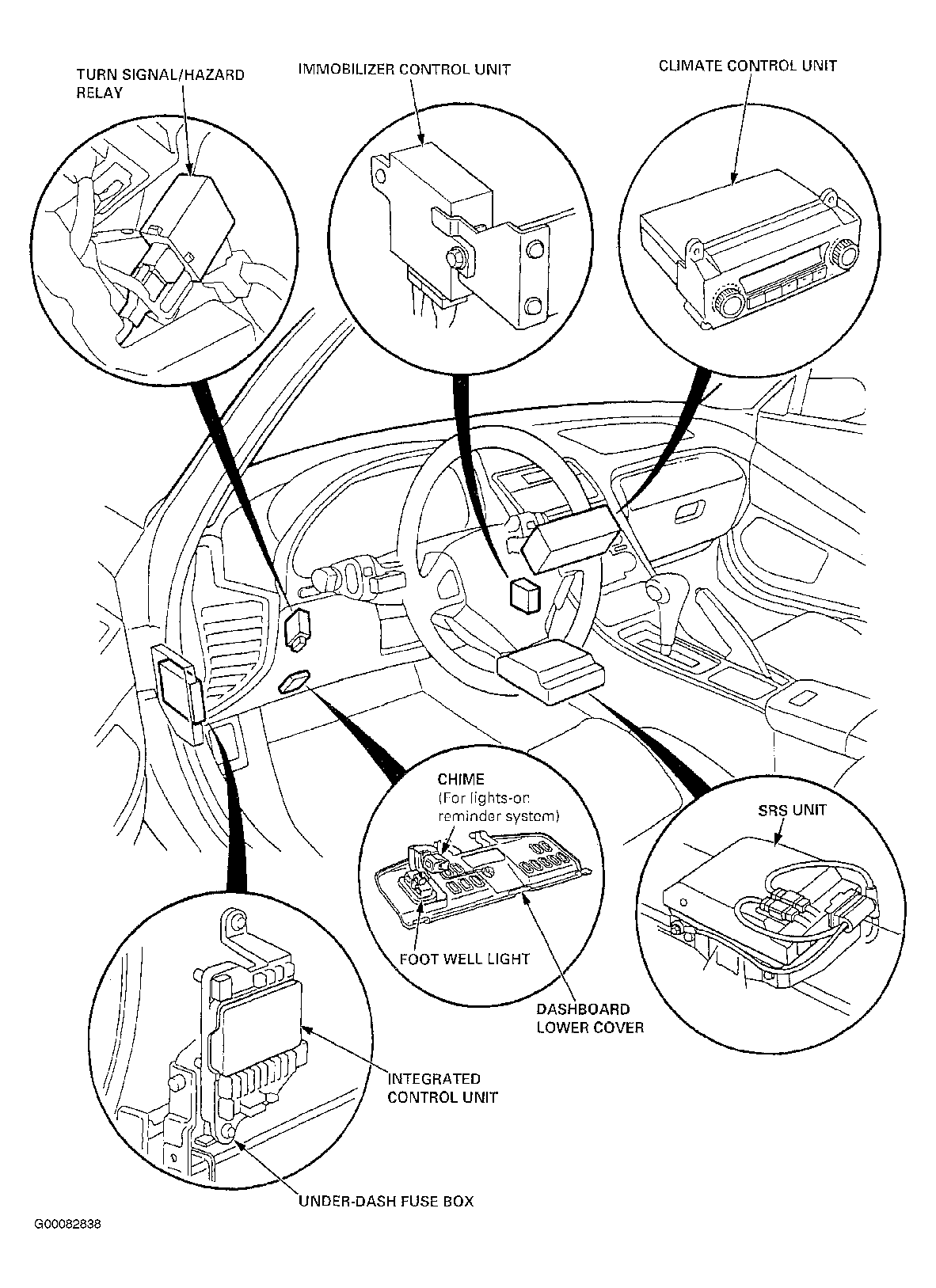

| Integrated Control Unit | On front of dash fuse box. See Fig 1 . |
| Left Door Switch | Rear of left door |

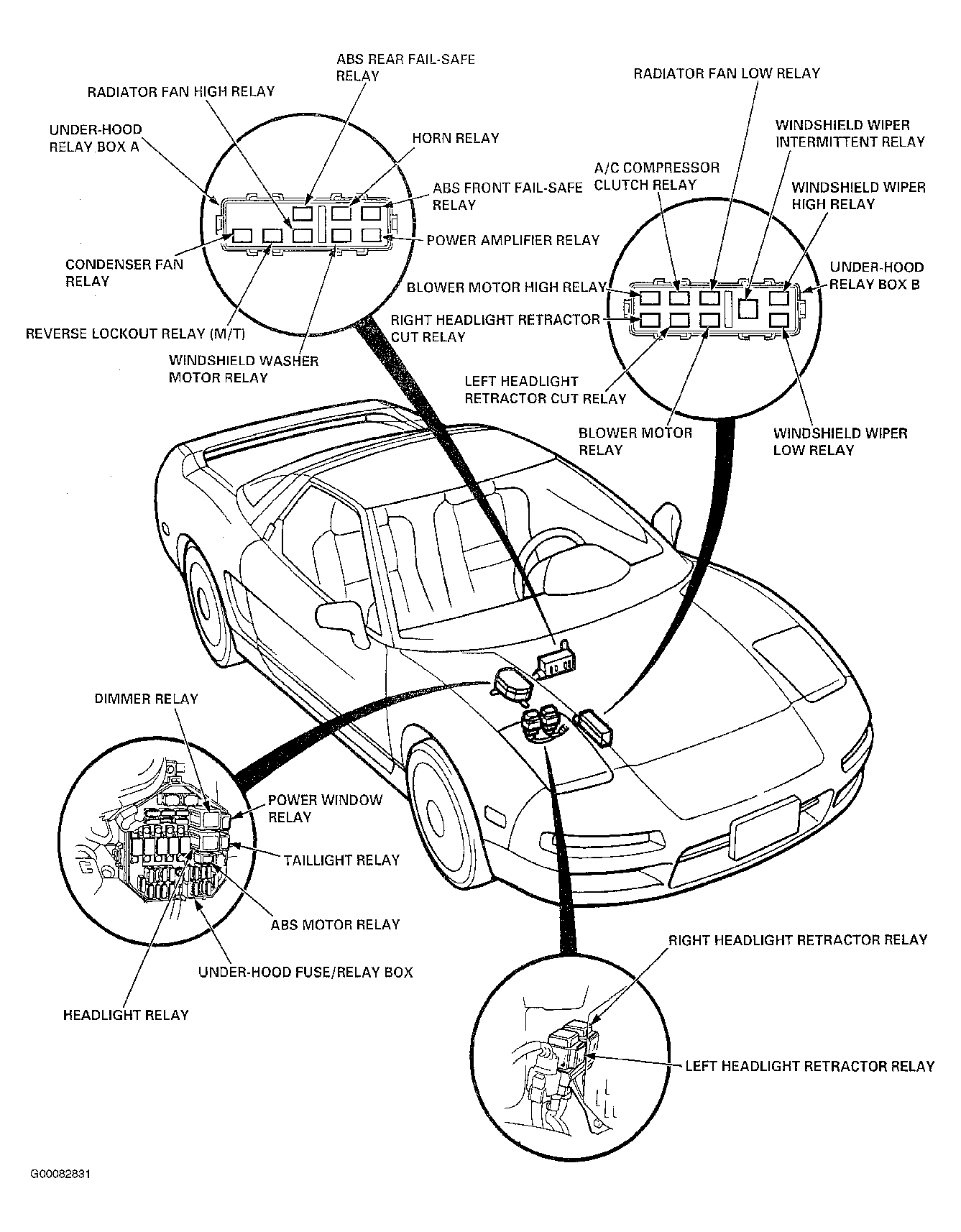

| Relay Box | Right side of front compartment. See Fig 2 . |
| Right Door Switch | Rear of right door |
| C244 (BLU 20-Pin) | Behind right kick panel |

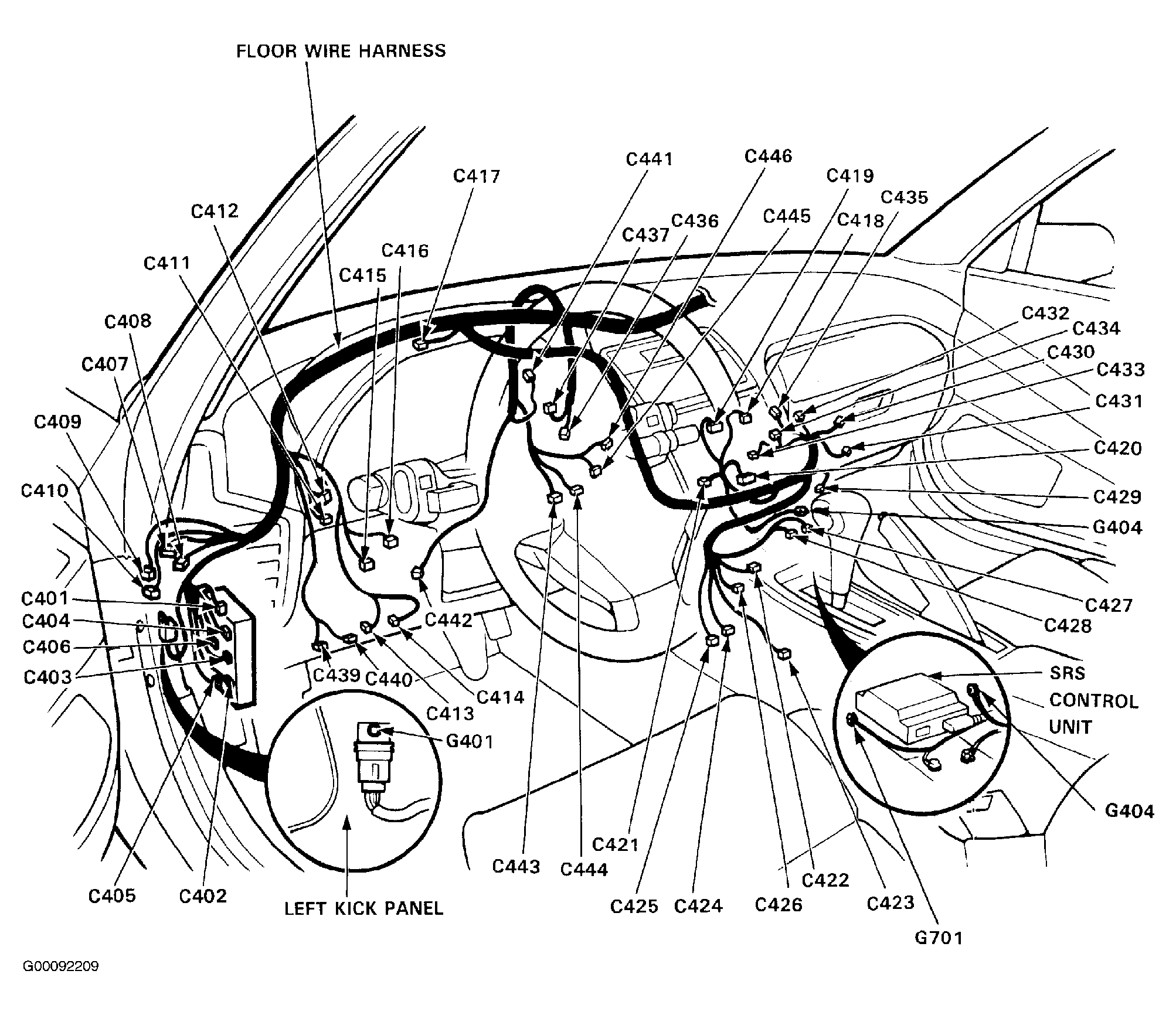

| C401 (GRN, 16-Pin) | On integrated control unit, on dash fuse box. See Fig 3 . |
| C402 (BRN, 12-Pin) | On rear of dash fuse box. See Fig 3 . |
| C403 (BRN, 14-Pin) | On rear of dash fuse box. See Fig 3 . |
| C404 (BRN, 16-Pin) | On rear of dash fuse box. See Fig 3 . |
| C405 (BRN, 5-Pin) | On rear of dash fuse box. See Fig 3 . |
| C406 (BRN, 18-Pin) | On rear of dash fuse box. See Fig 3 . |
| C409 (GRY, 18-Pin) | Behind left kick panel, on bracket. See Fig 3 . |
| C444 (GRY, 18-Pin) | Behind dash, right of steering column. See Fig 3 . |
| C445 (GRY, 8-Pin) | Behind dash, right of steering column. See Fig 3 . |
| C472 (GRY, 14-Pin) | Behind right kick panel |
| C521 (BRN, 20-Pin) | On rear of dash fuse box |
| C525 (GRY, 6-Pin) | Under left seat |
| C615 (GRY, 2-Pin) | Rear of left door |
| C660 (GRY, 2-Pin) | Rear of right door |
| C786 (BLU/GRY, 2-Pin) | Right side of left seat |
| C909 | On integrated control unit, front of dash fuse box |
| G401 | Behind left kick panel. See Fig 3 . |
NOTE:
For more information on component locations, see NSX & NSX-T
.
For floor wire harness connector locations, see Fig 3 .
