System Control Unit Input Tests

NOTE: Different wires with same wire color have been given a number suffix to identify them, for example, Yellow/Green (1) and Yellow/Green (2) are different wires.

Remove glove box. Disconnect security control unit connectors. Inspect connectors and terminals. Check for bent, loose or corroded terminals. Perform security control unit input tests. See Fig 1 and Fig 2 . If security control unit input tests are all okay, replace faulty security control unit.

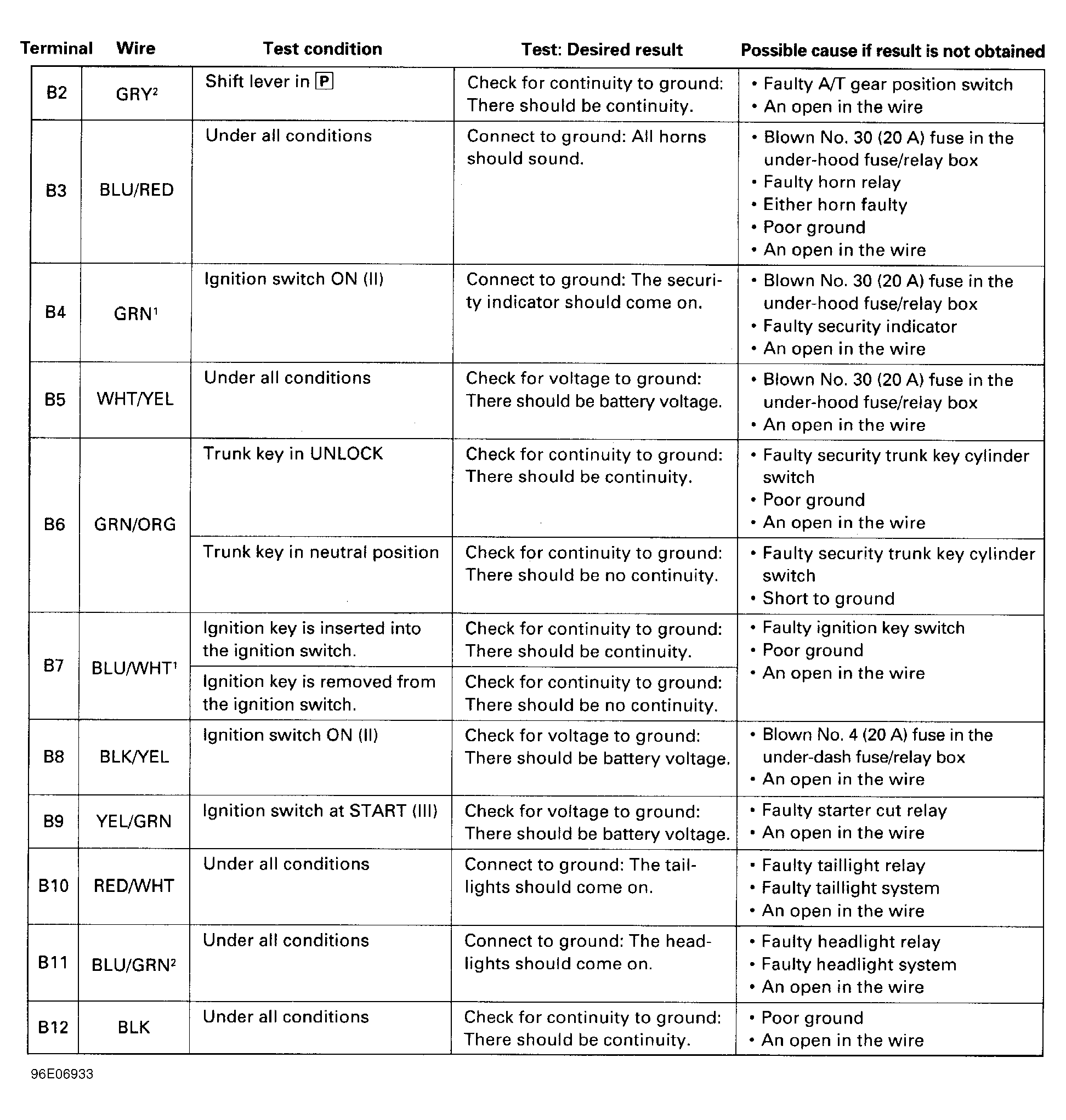

Fig 1: Security Control Unit Input Test (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

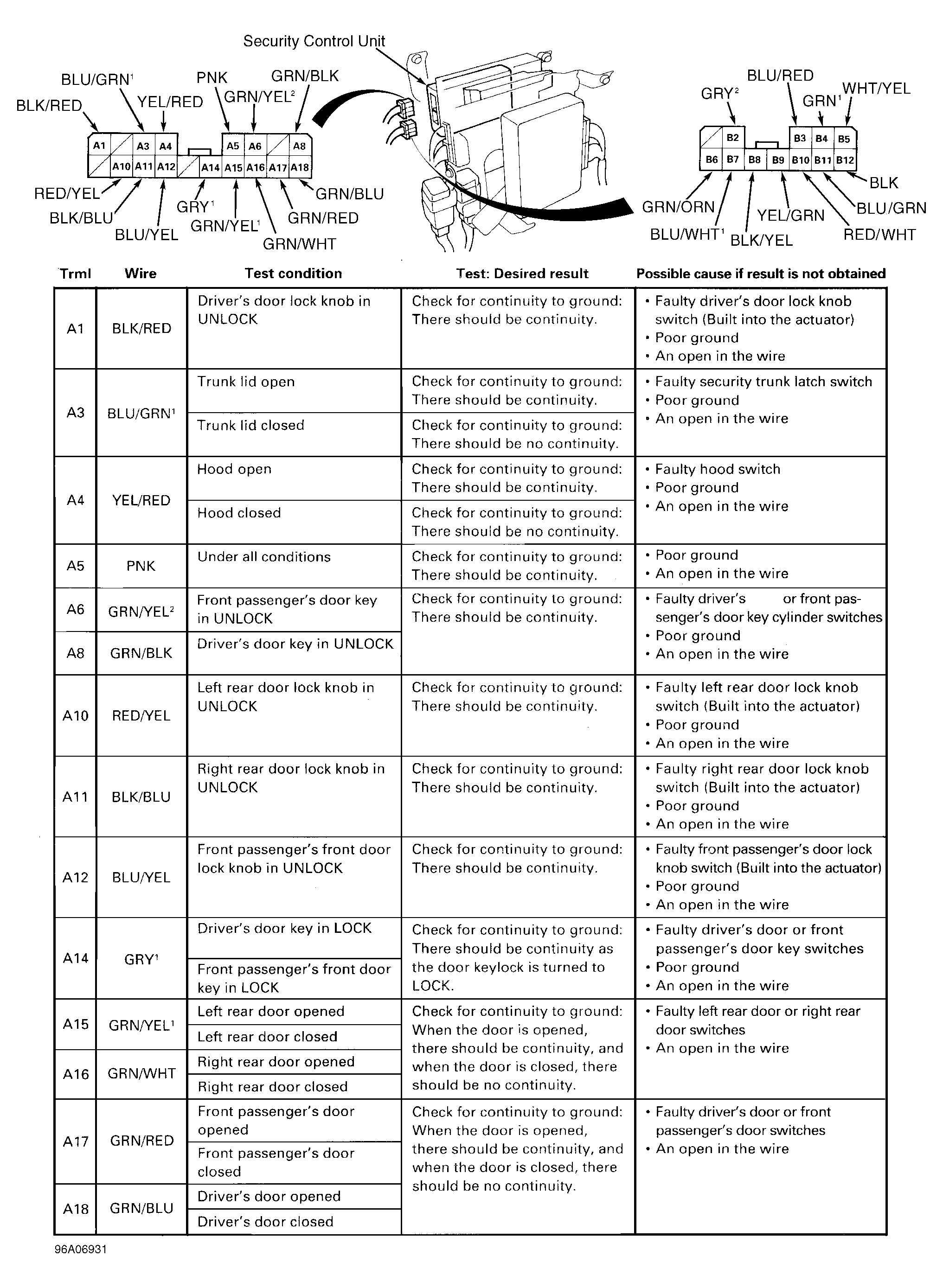

Fig 2: Security Control Unit Input Test (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
