DTC 3-6: Throttle Position Sensor Signal - TPS
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DTC 3-6: Throttle Position Sensor Signal - TPS

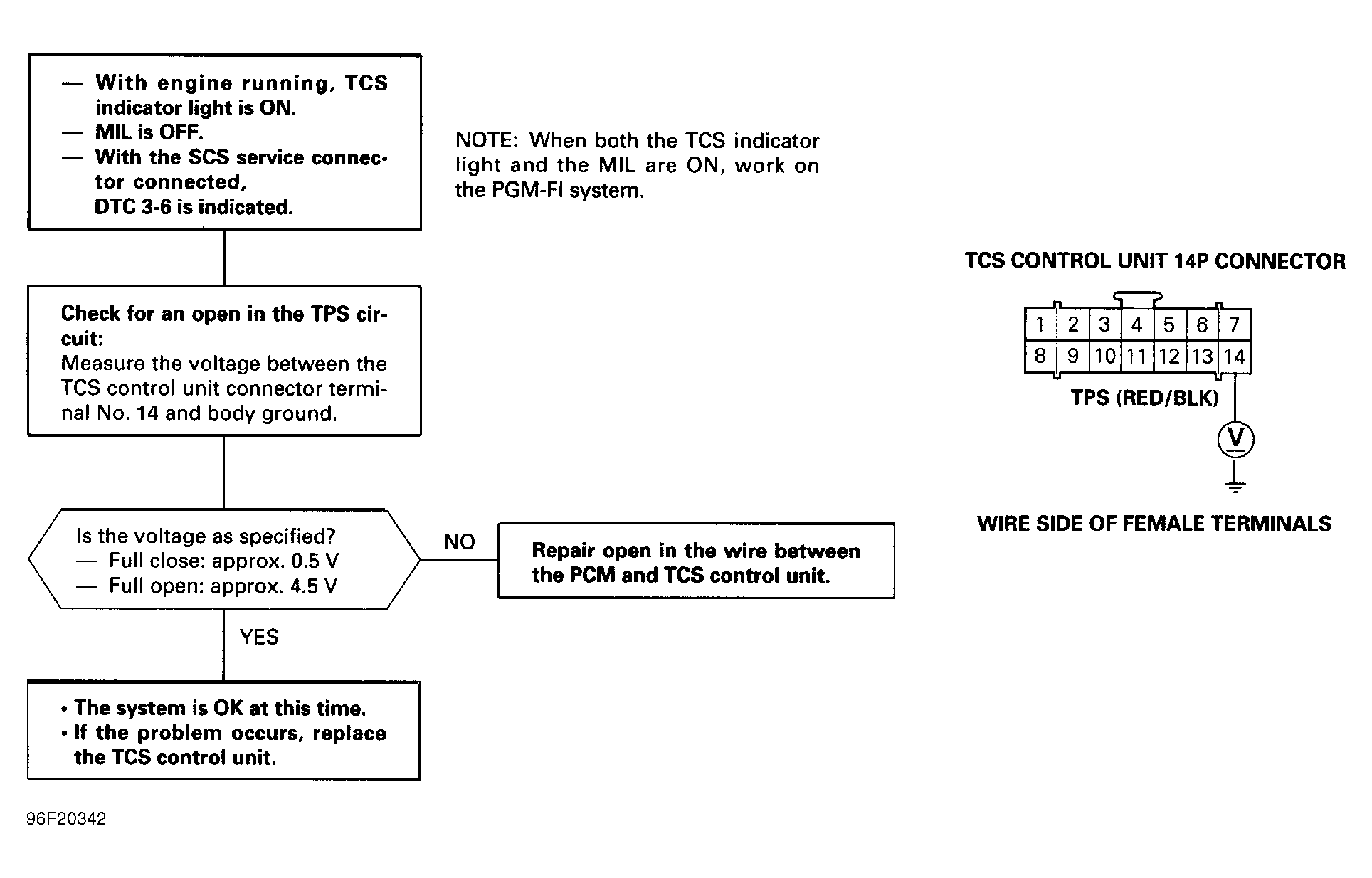

Fig 1: DTC 3-6: Throttle Position Sensor Signal - TPS
Courtesy of AMERICAN HONDA MOTOR CO., INC.
