Cruise Control Power Source Circuit Checking Procedure

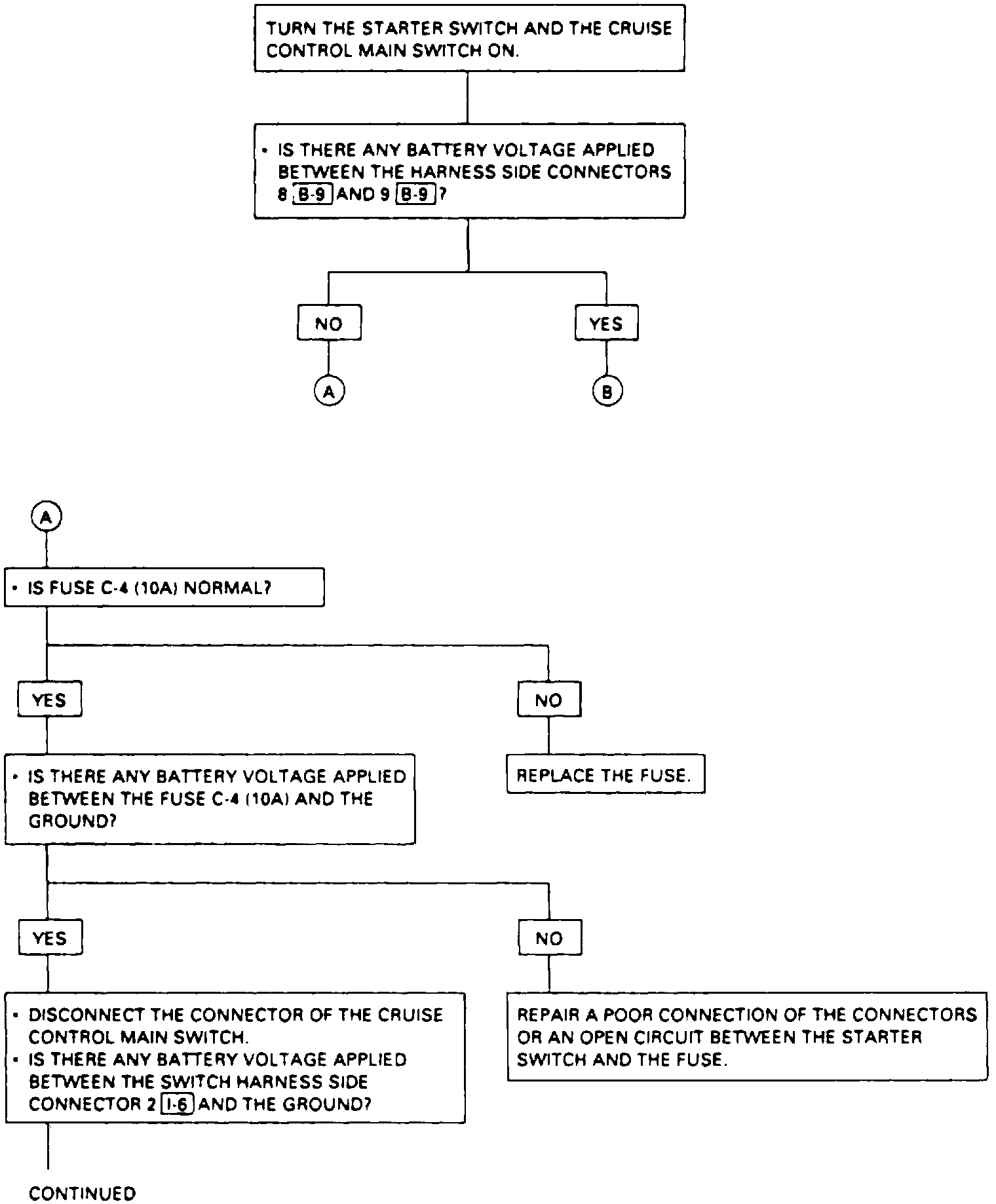

Fig. 25 Chart 1, Cruise Control Power Circuit Checking Procedure (Part 1 Of 5):

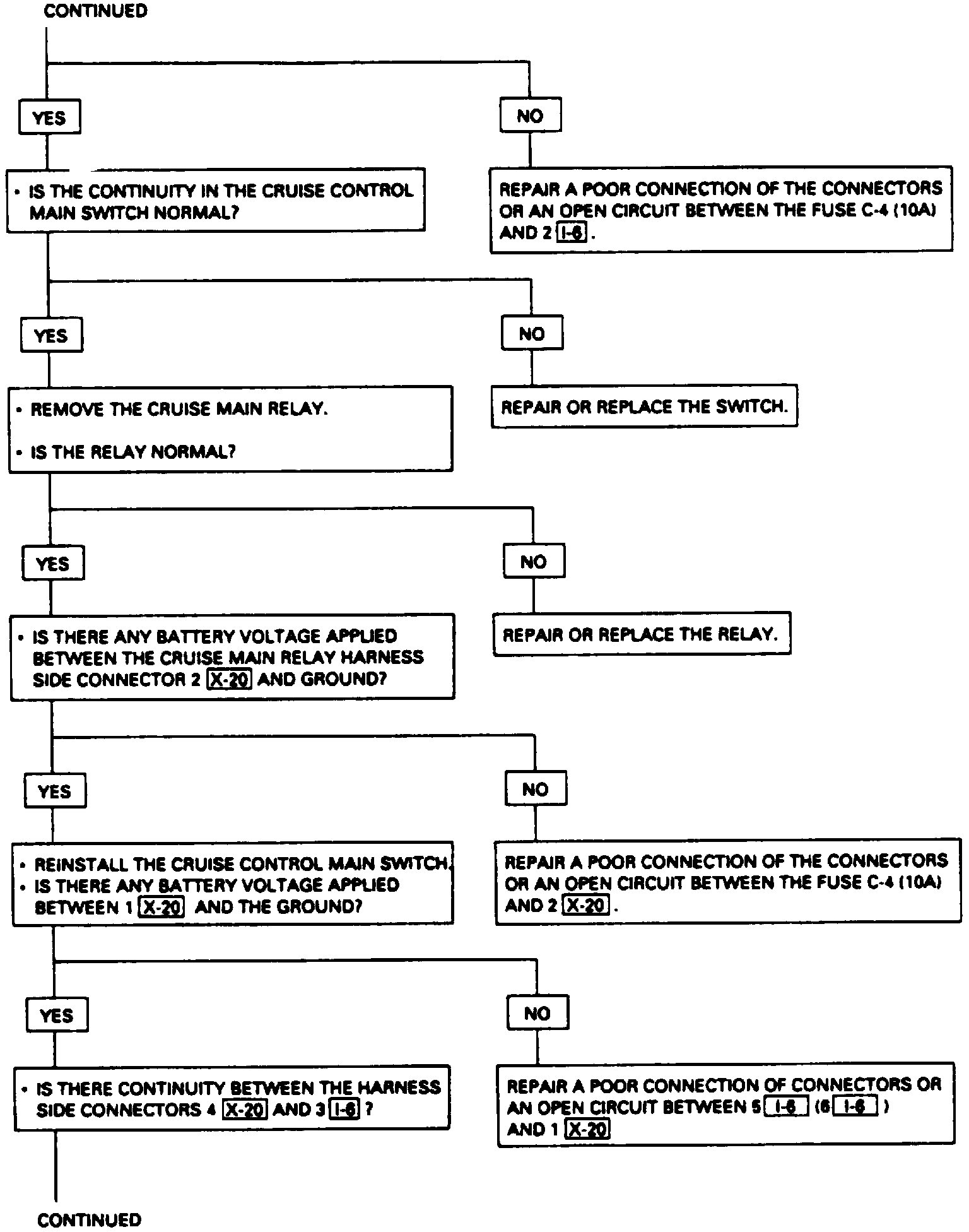

Fig. 25 Chart 1, Cruise Control Power Circuit Checking Procedure (Part 2 Of 5):

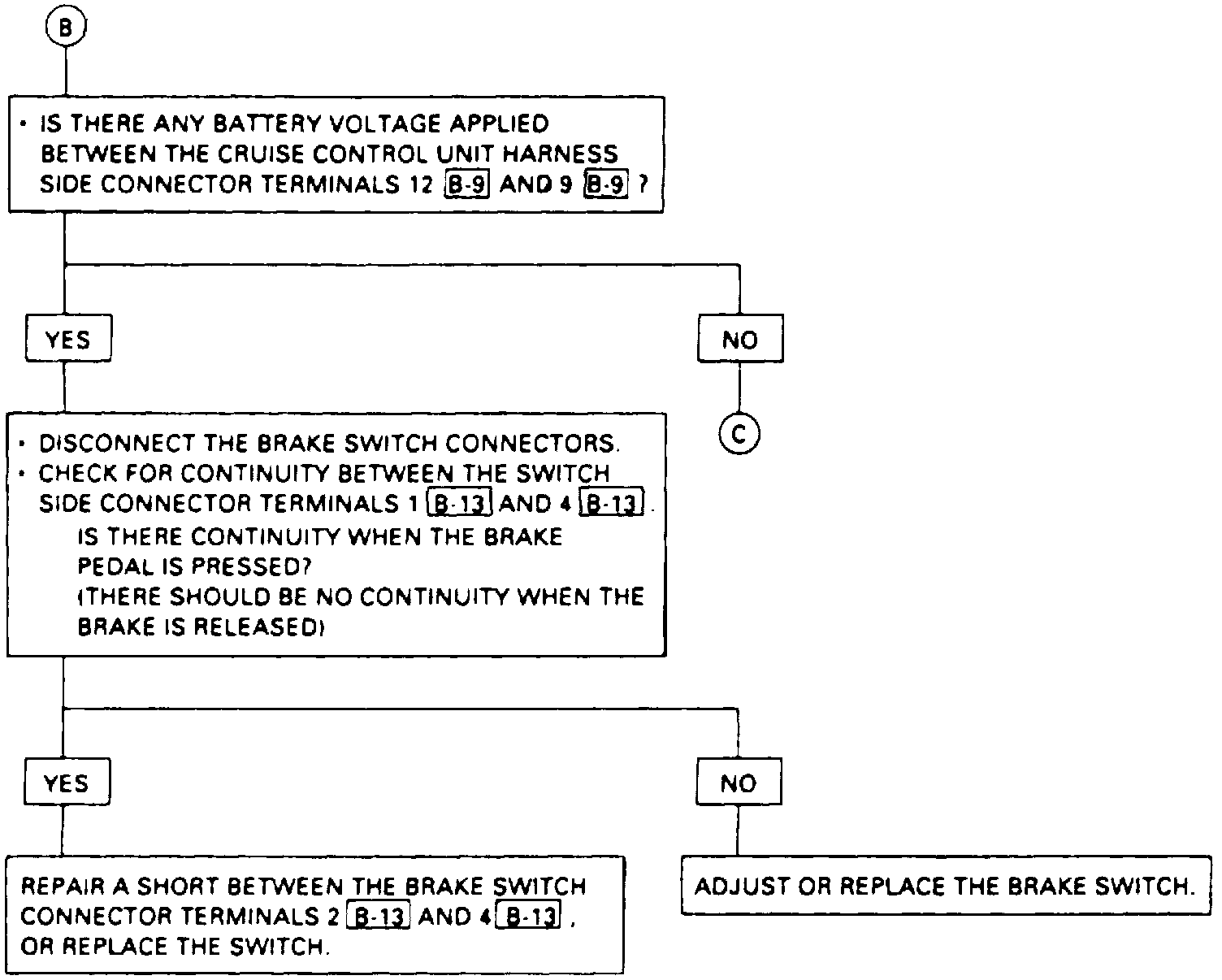

Fig. 25 Chart 1, Cruise Control Power Circuit Checking Procedure (Part 3 Of 5):

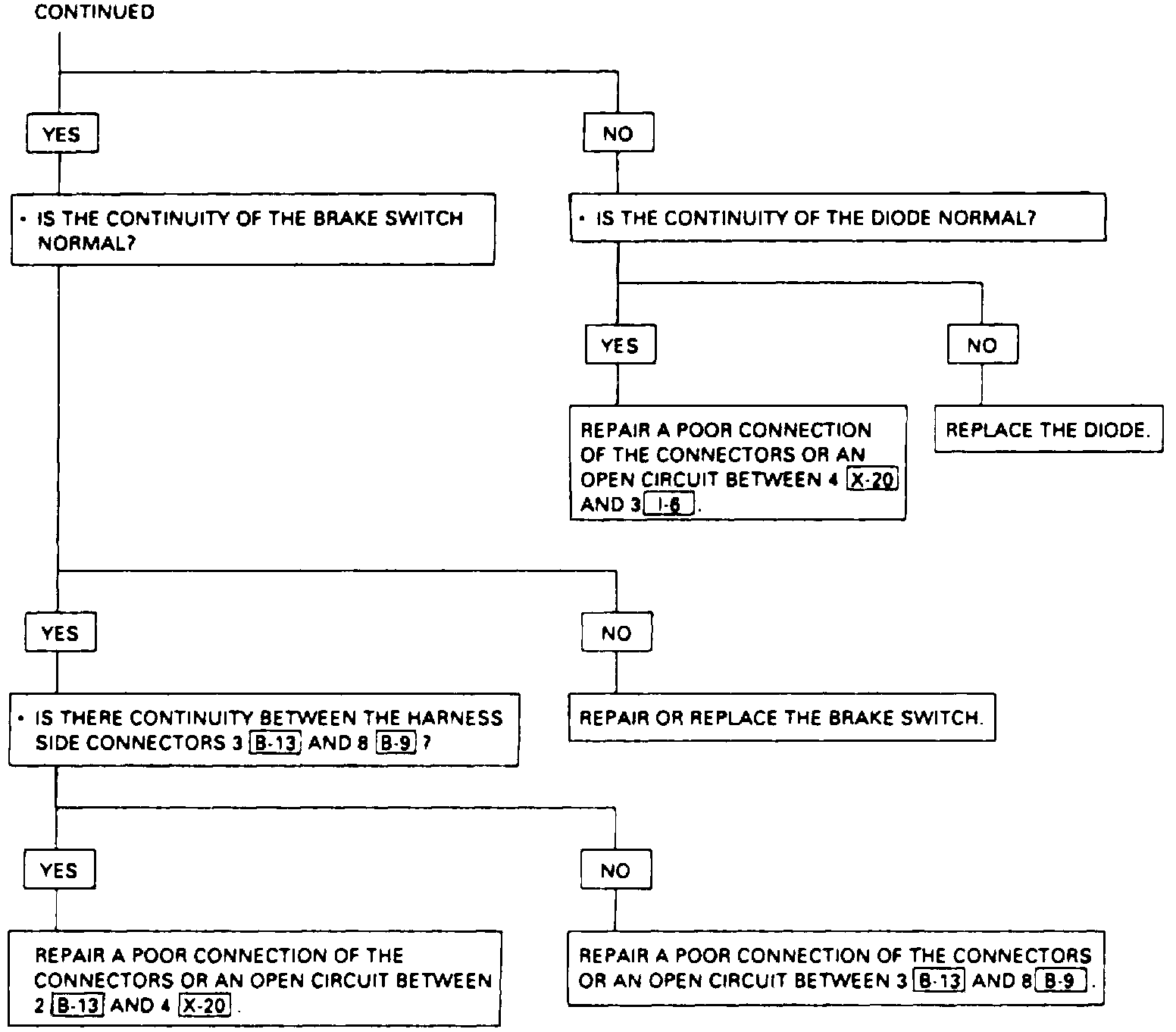

Fig. 25 Chart 1, Cruise Control Power Circuit Checking Procedure (Part 4 Of 5):

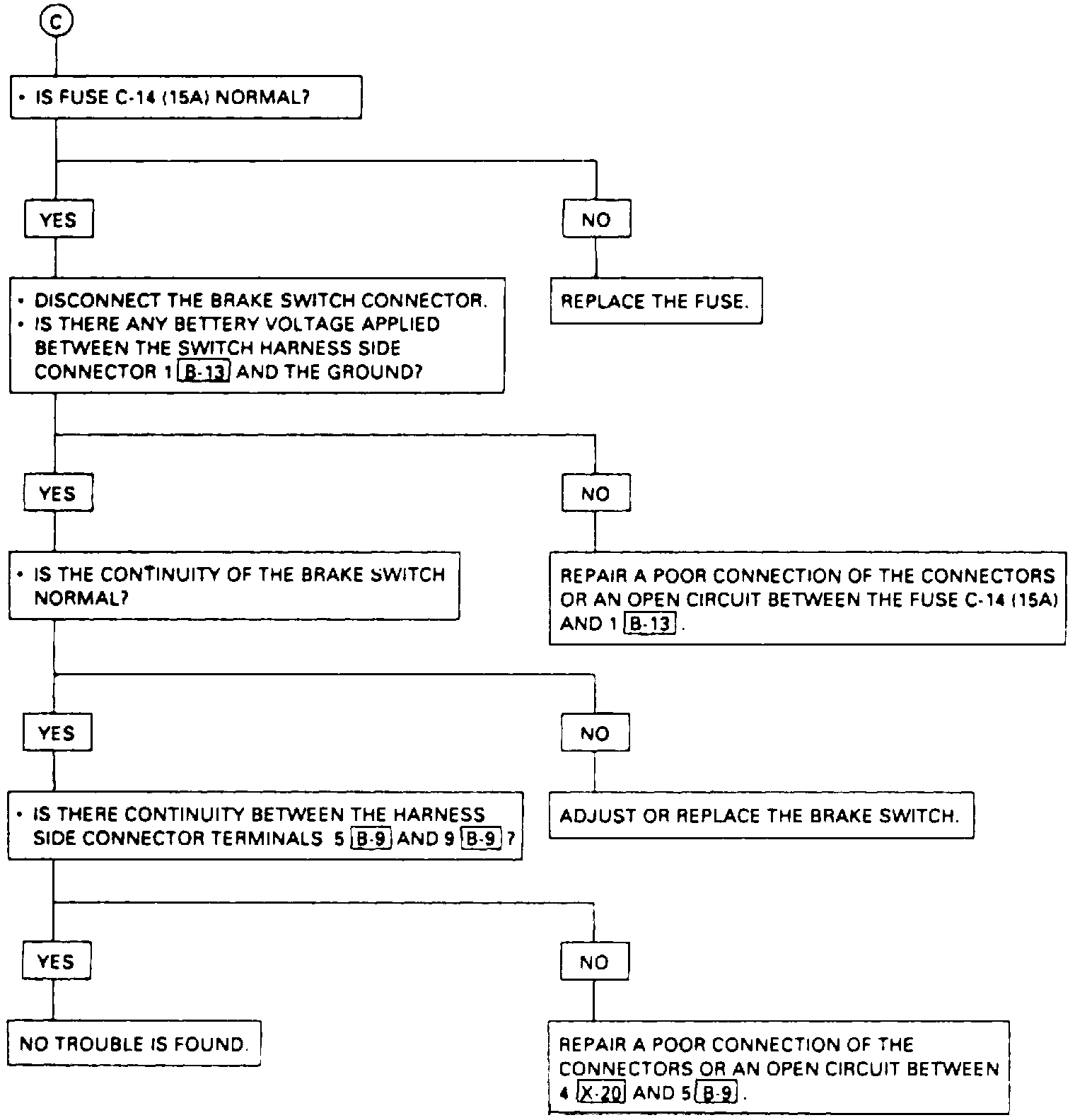

Fig. 25 Chart 1, Cruise Control Power Circuit Checking Procedure (Part 5 Of 5):

Refer to Fig. 25 for cruise control diagnosis and testing.
