Distributor Replacement: Removal

  1. Disconnect the connector from the distributor.
  2. Disconnect the ignition wires from the distributor ignition (DI) cap.
  3. Remove the mounting bolts from the distributor, then remove the distributor from the cylinder head.

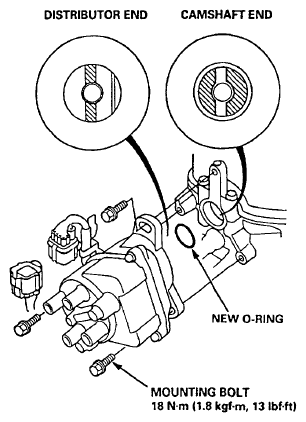

    Fig 1: Identifying Distributor, O-ring End And Camshaft End
    G06289318
