Component Locations

WARNING: This page is about a different car, the 1997 Acura 2.2CL. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENT LOCATIONS ⁽¹⁾

Component

Location

Actuator Assembly

On Right Side Of Engine Compartment Against Firewall

A/T Gearshift Position Switch

In Center Console

Brakelight Switch

Under Dash On Pedal Bracket

Clutch Switch

Under Instrument Panel On Pedal Bracket

Cruise Control Unit

Under Left Side Of Instrument Panel Under Knee Bolster & Lower Cover

Main Switch

In Instrument Panel To Left Of Steering Column

SET/RESUME Switch

In Steering Wheel

⁽¹⁾	See Fig 1 or Fig 2 .

Fig 1: Locating Instrument Panel Cruise Control Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

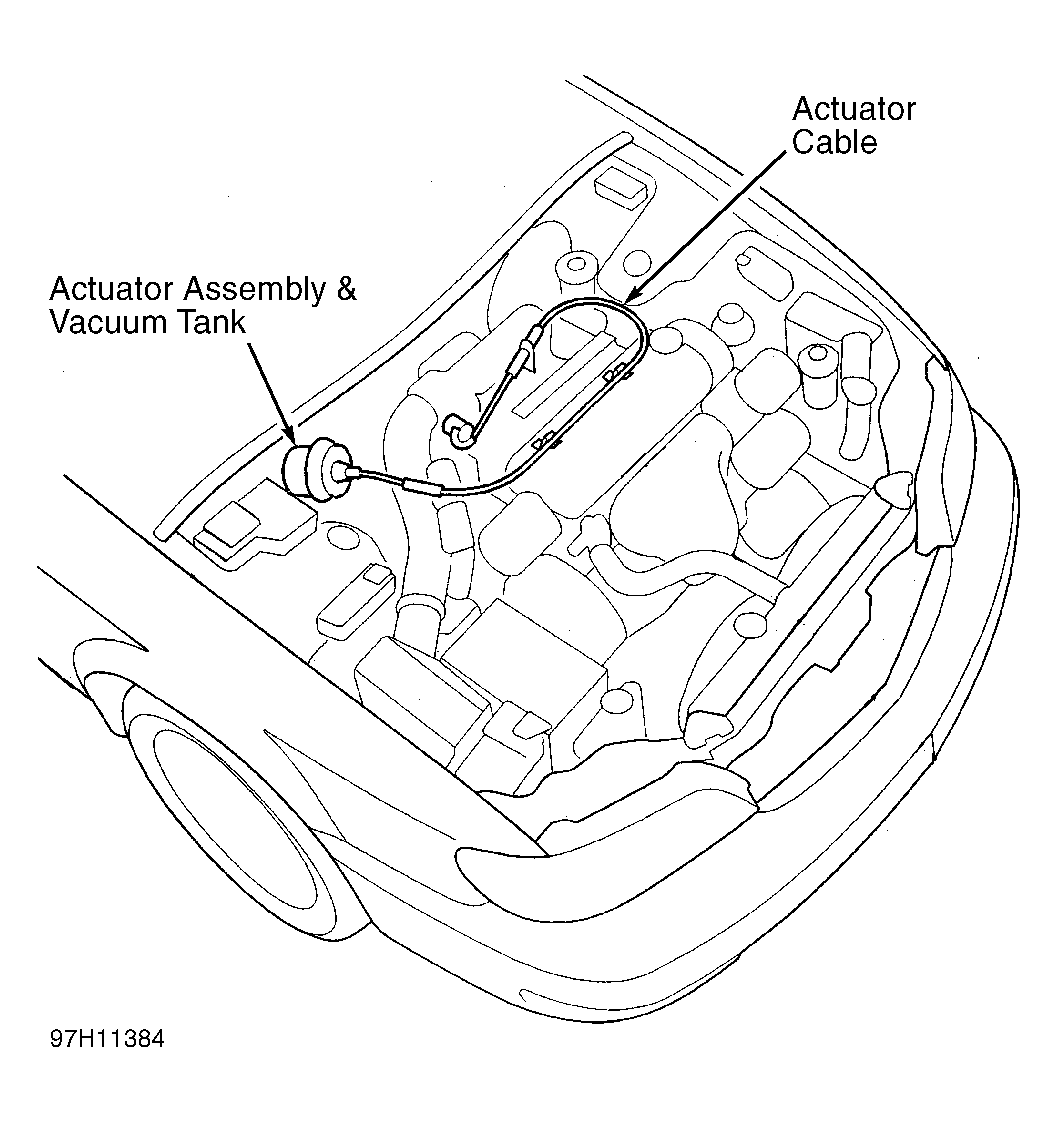

Fig 2: Locating Engine Compartment Cruise Control Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
