A/T Shift Position Signal

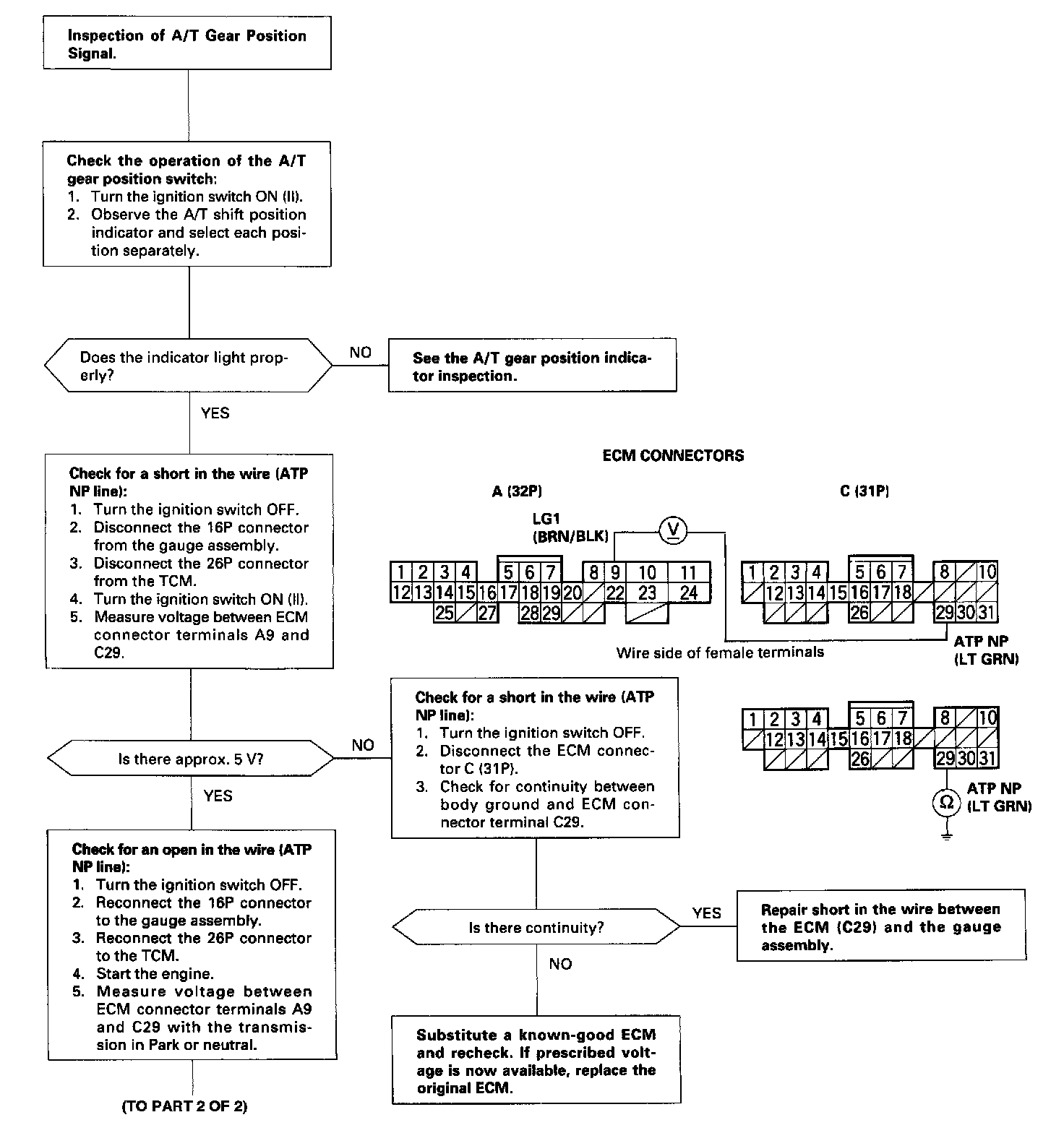

Part 1 Of 2:

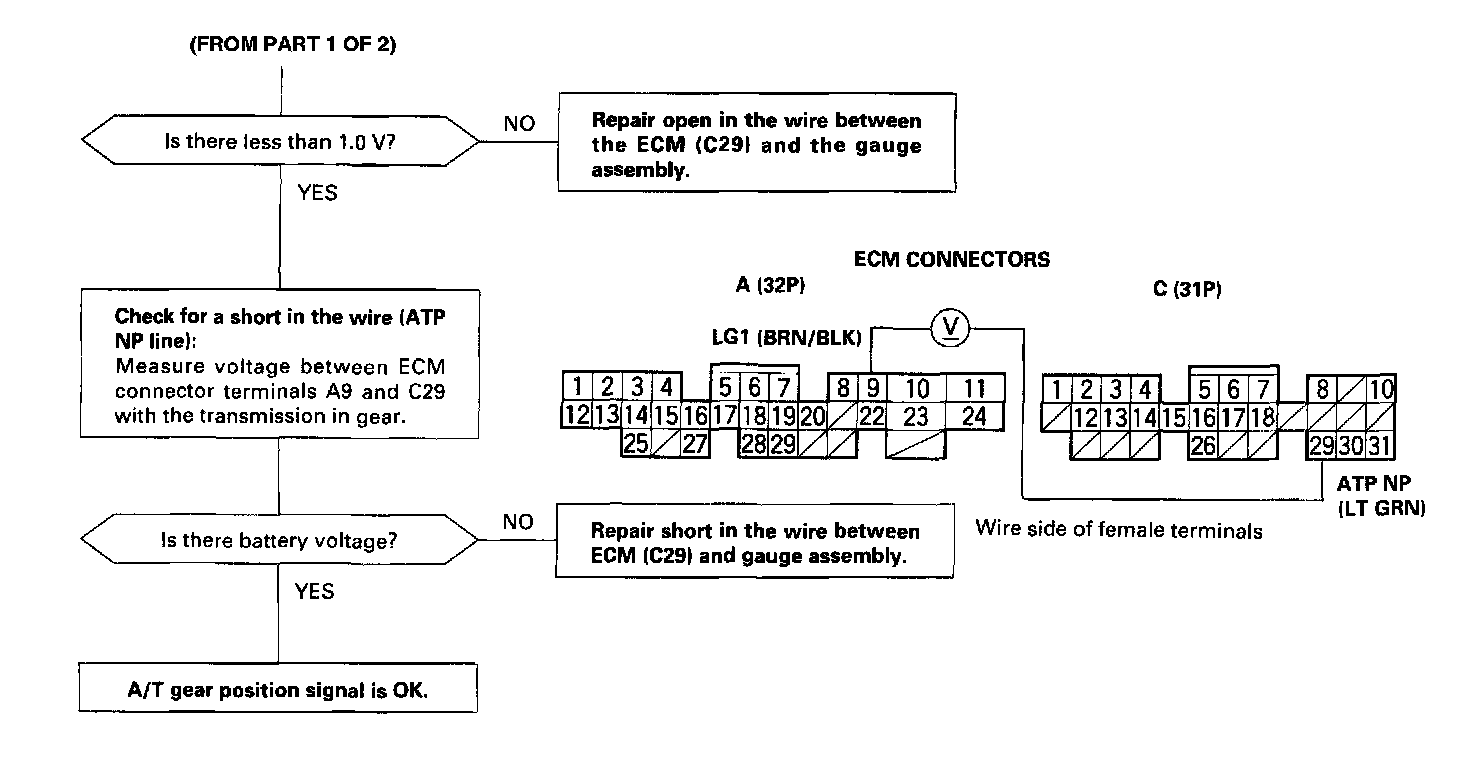

Part 2 Of 2:
This signals the ECM when the transmission is in Park or neutral.
