Transmission Assembly

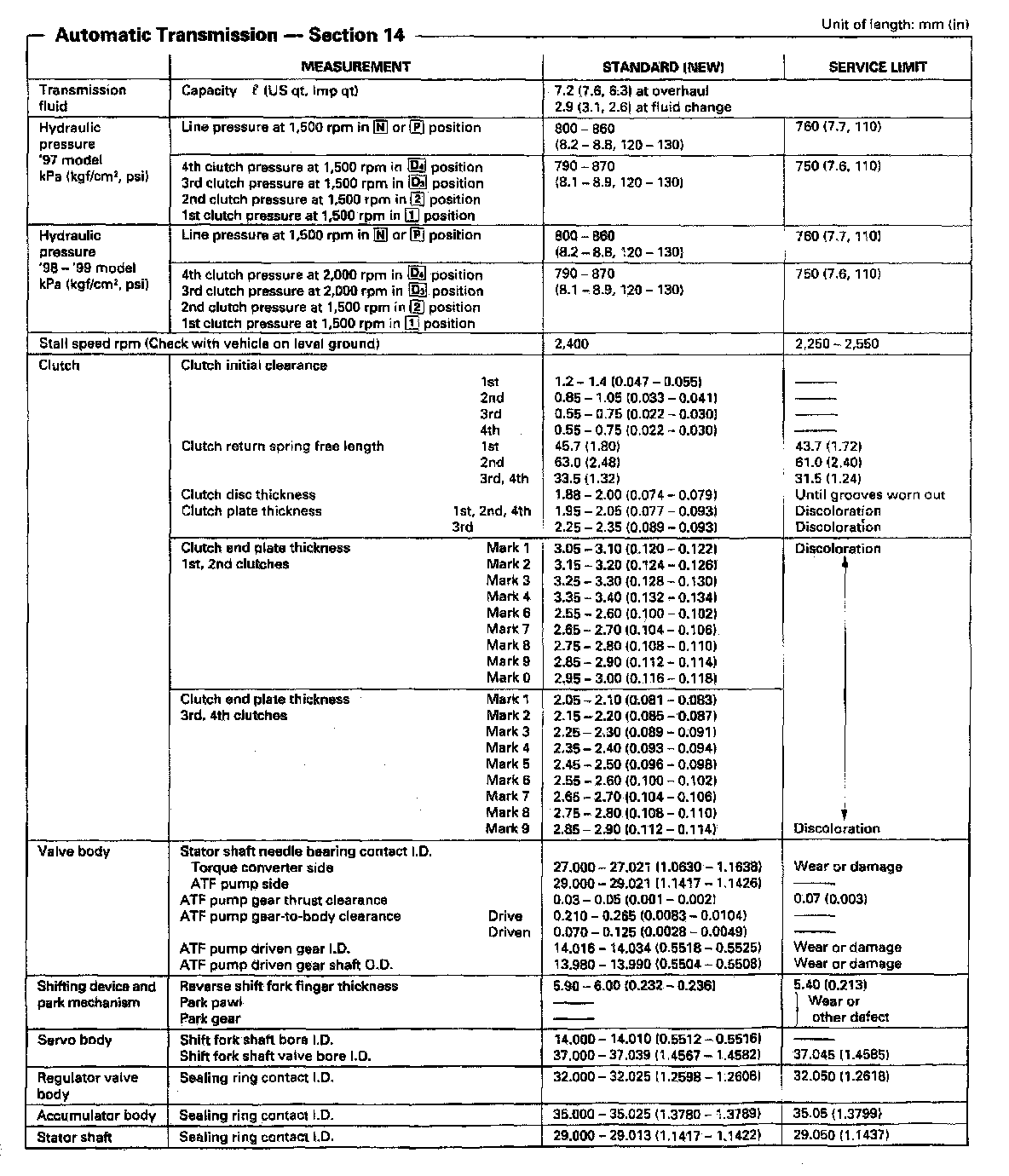

M7ZA / B7ZA 4-spsd A/T, Line Pressure, Stall Speed Measurements:

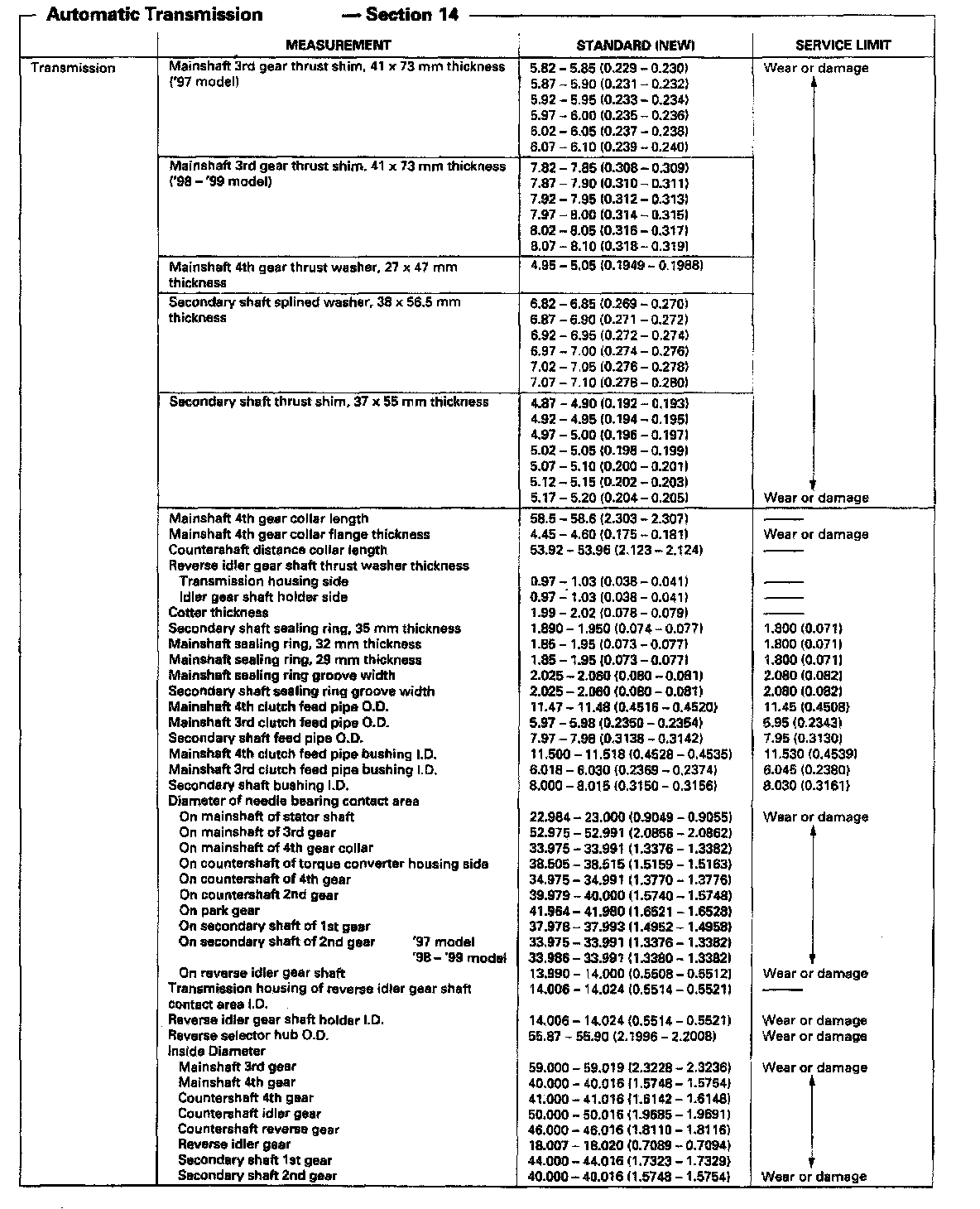

M7ZA / B7ZA 4-spd A/T, Mainshaft/Countershaft Measurements:

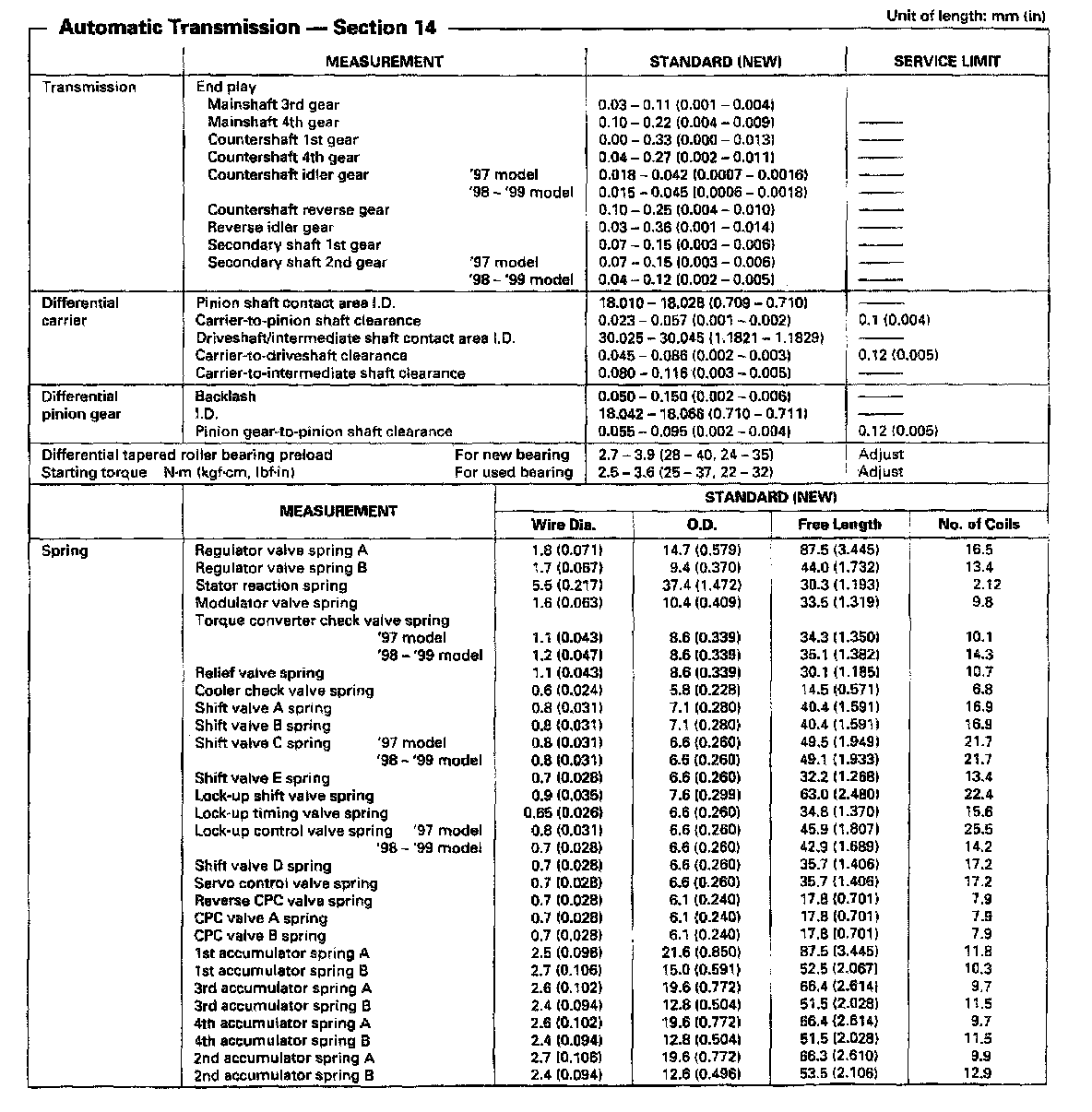

M7ZA / B7ZA 4-Spd A/T, Transmission / Differential Measurements:





Automatic Transmission Gear Ratios:
