Control Module: Testing and Inspection




PCM Terminal Locations

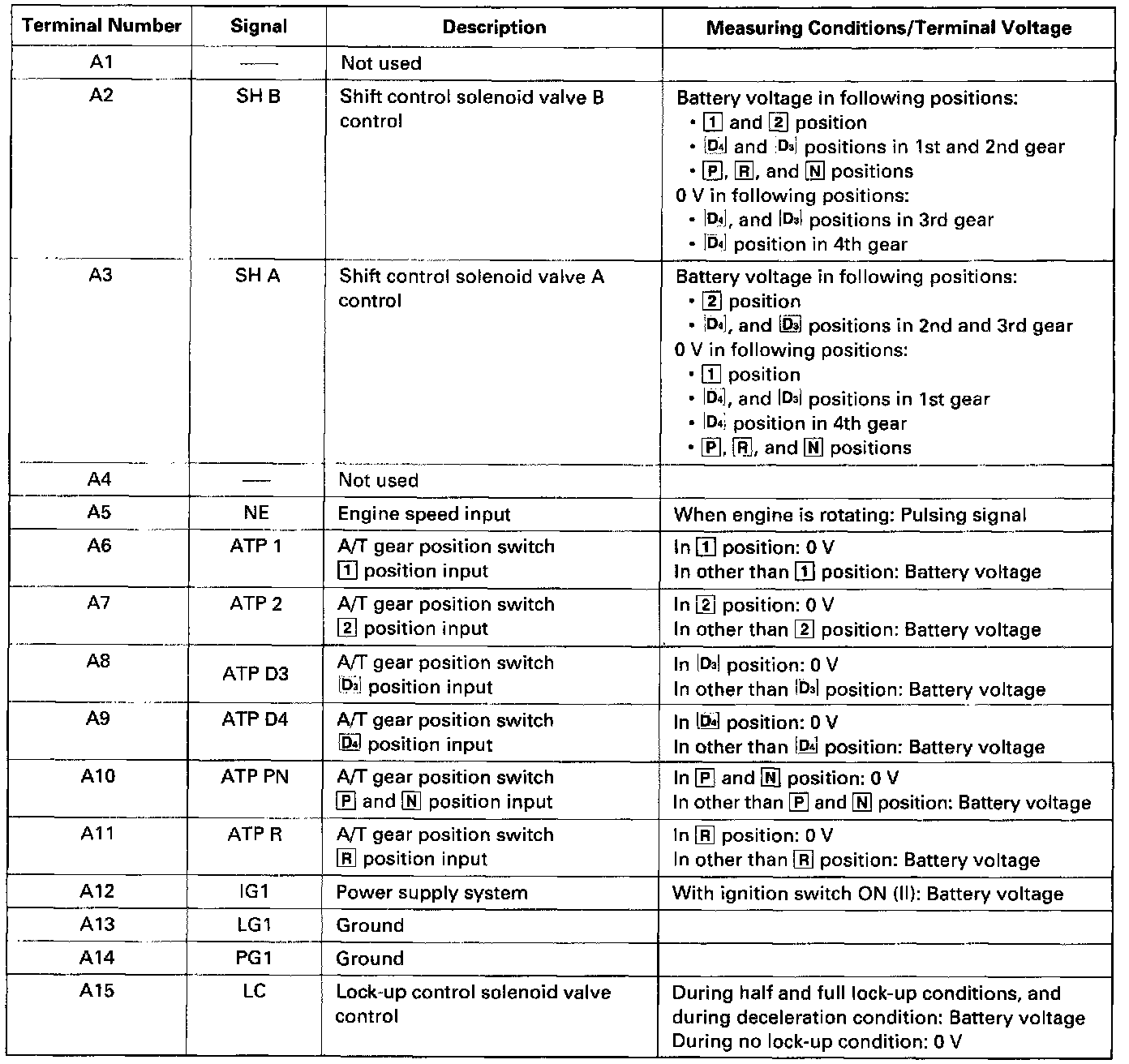

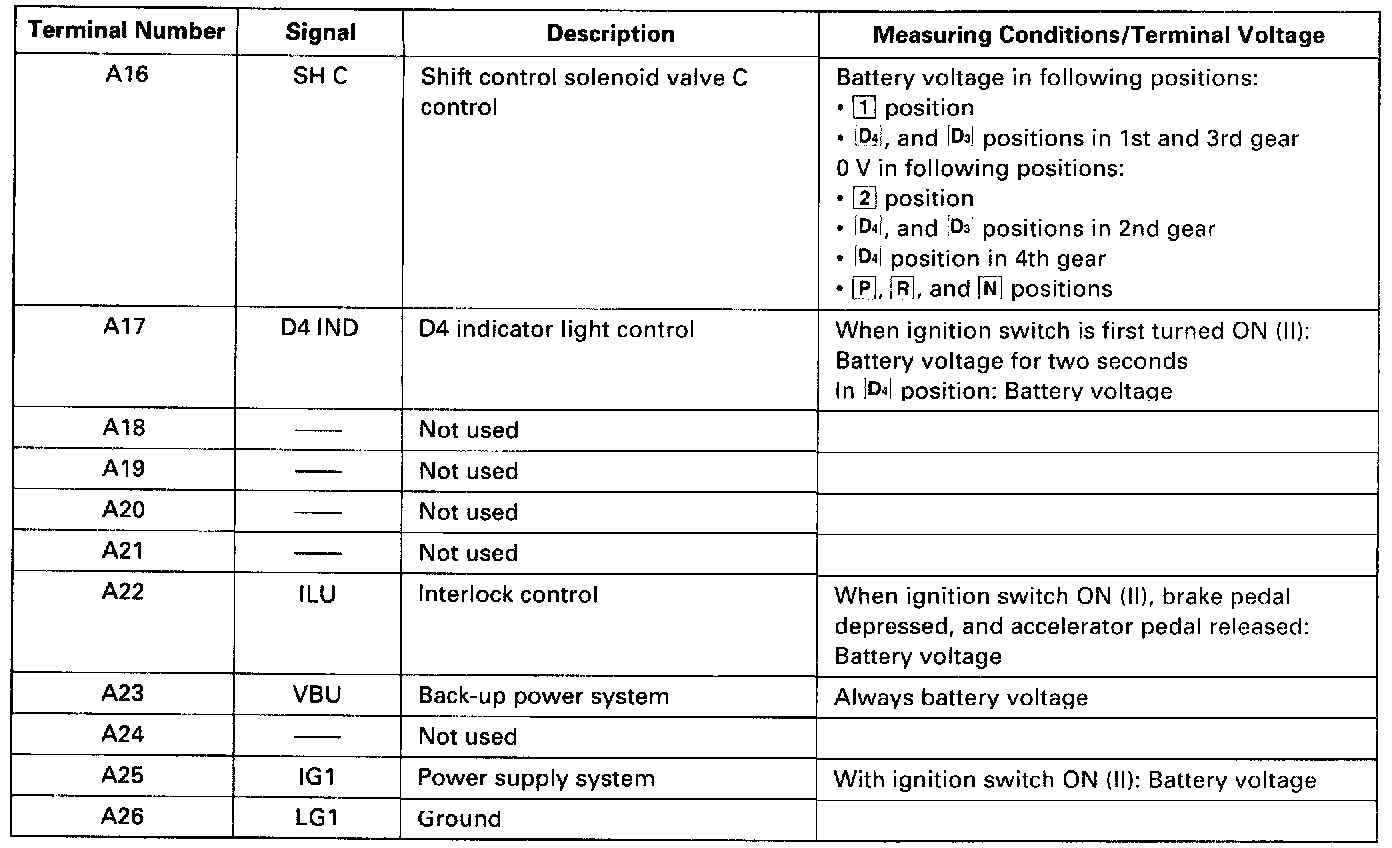

PCM CONNECTOR A (26P)

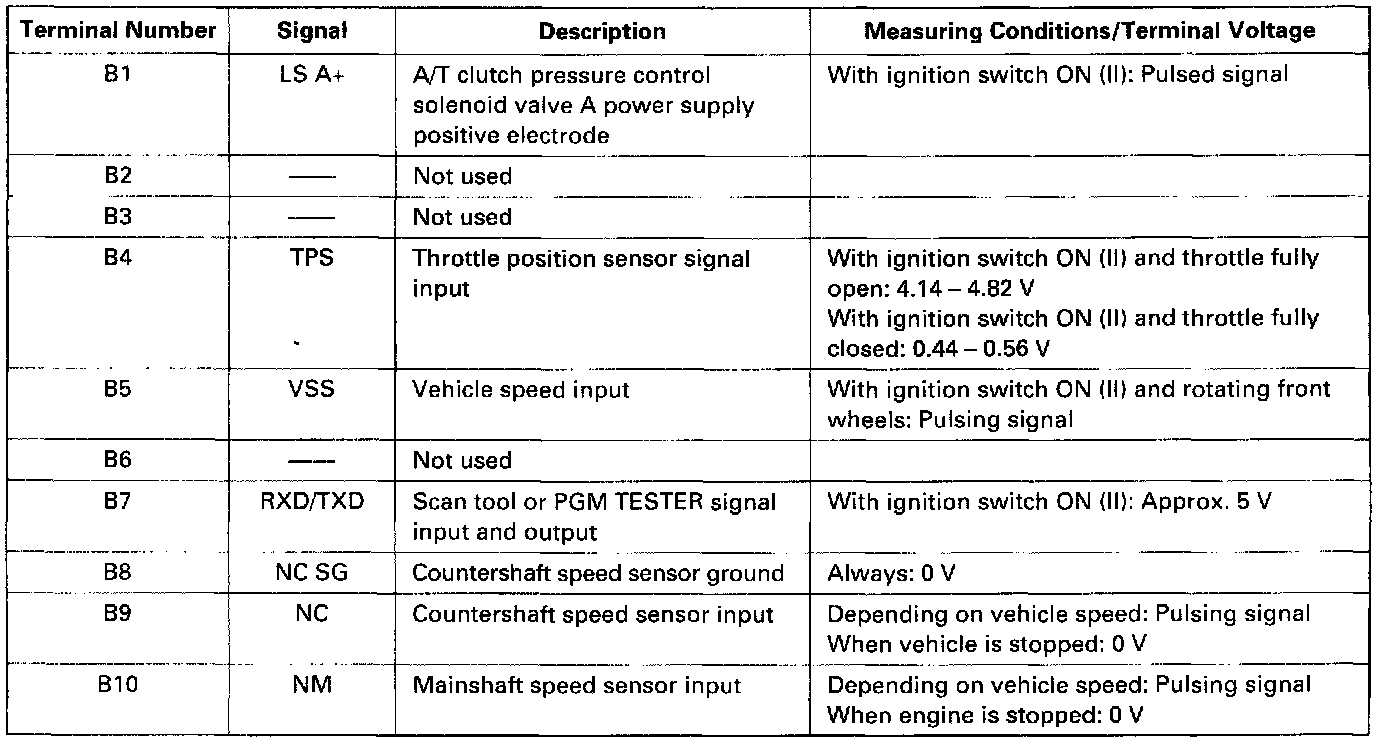

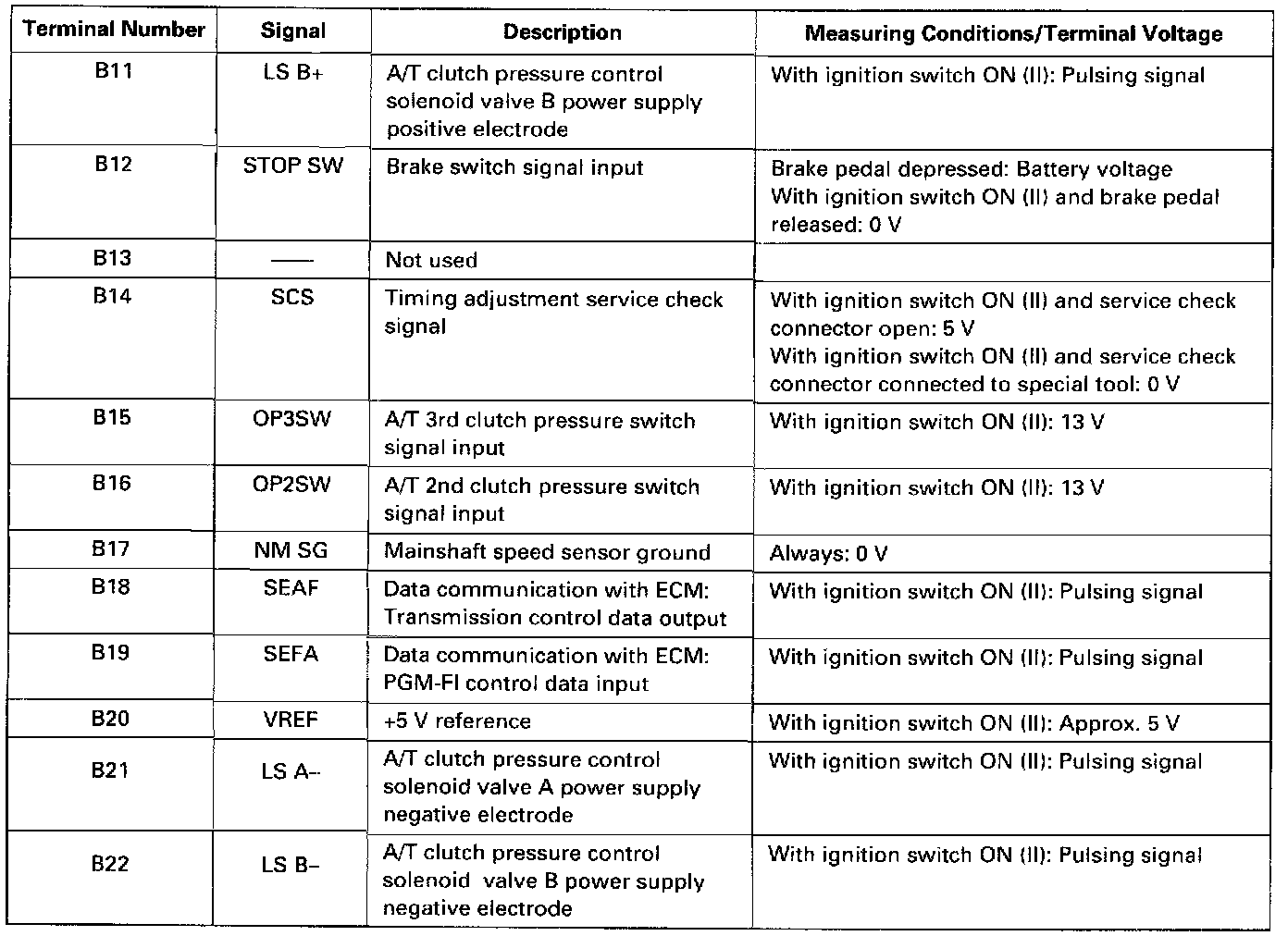

PCM CONNECTOR B (22P)
