Cruise Control Switch: Service and Repair

Preparation: Disconnect the battery ground cable.

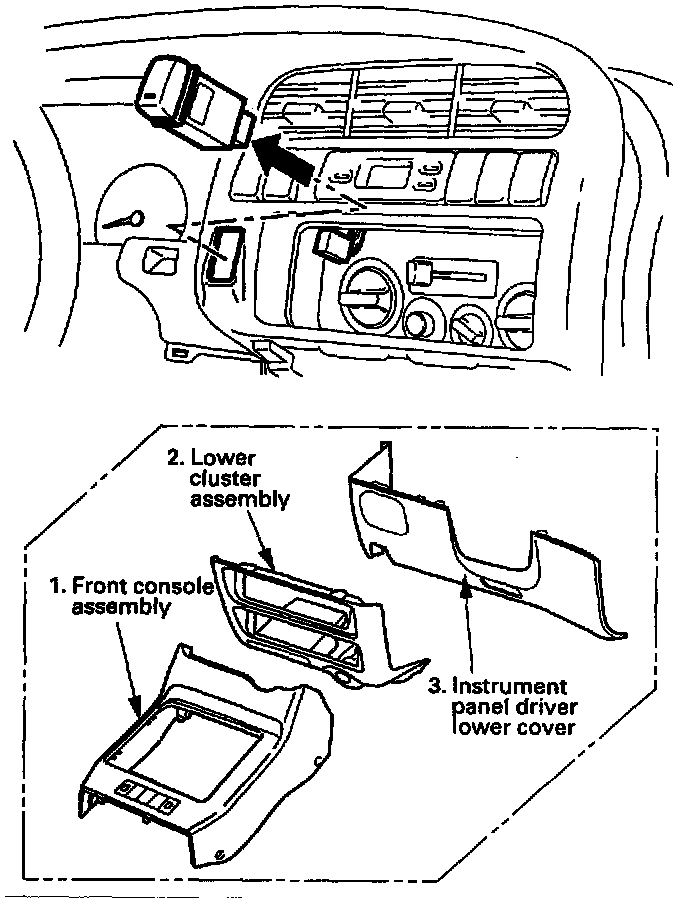

1. Front console assembly
2. Lower cluster assembly
3. Instrument panel driver lower cover
4. Instrument panel cluster assembly
^ Refer to "FOG LIGHT SWITCH" removal steps in "CHASSIS ELECTRICAL" system.
5. Cruise control main switch
^ To remove the switch, pushing the lock from the back side of the cluster assembly.

INSTALLATION
To install, follow the removal steps in the reverse order, noting the following point.
1. Push in the switch with your fingers until the switch is locked securely.
