Fuse/Relay Box
>>
Fuse/Relay Box
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fuse/Relay Box

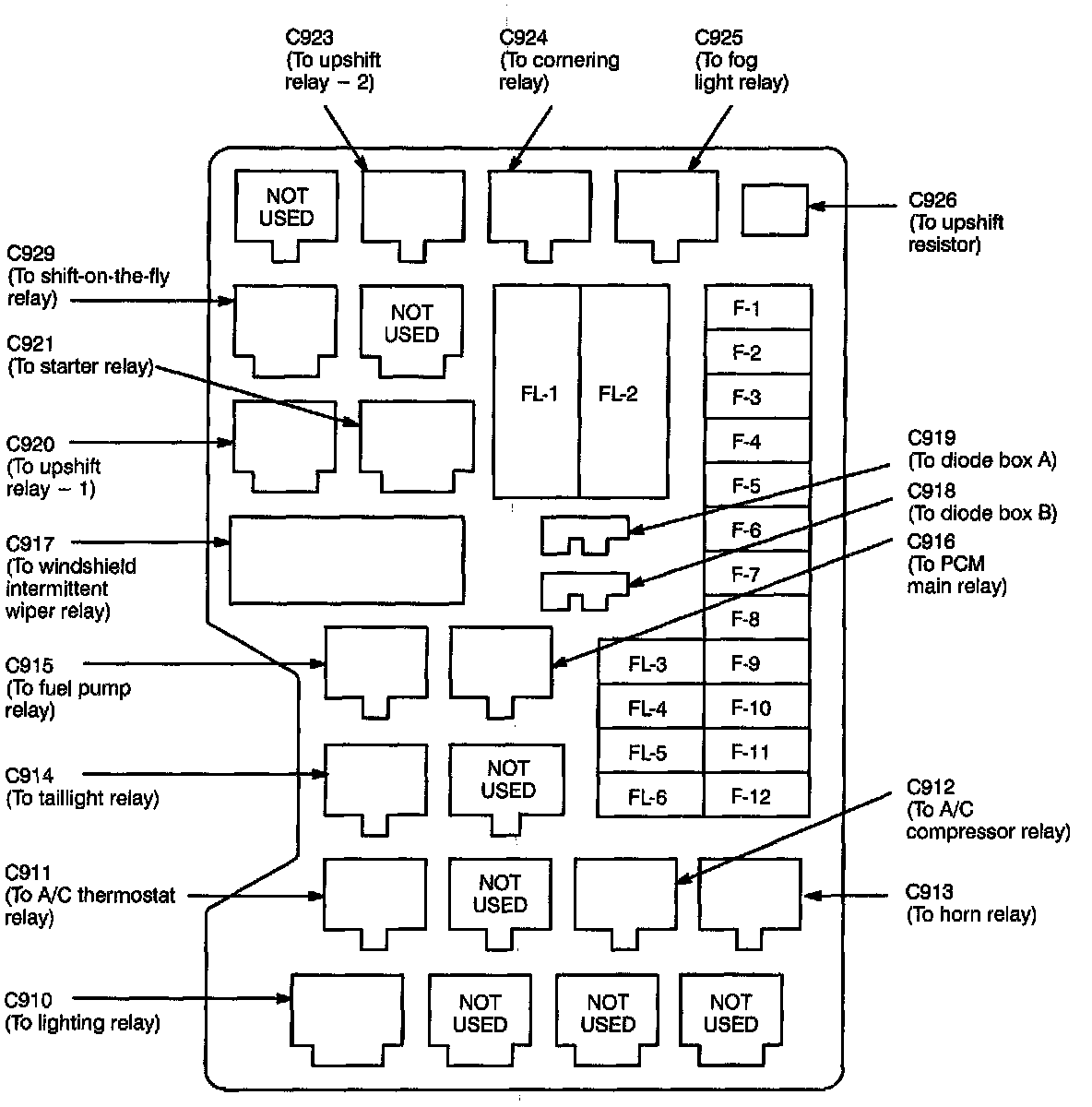

Fuse/Relay Box (Part 1 Of 2):

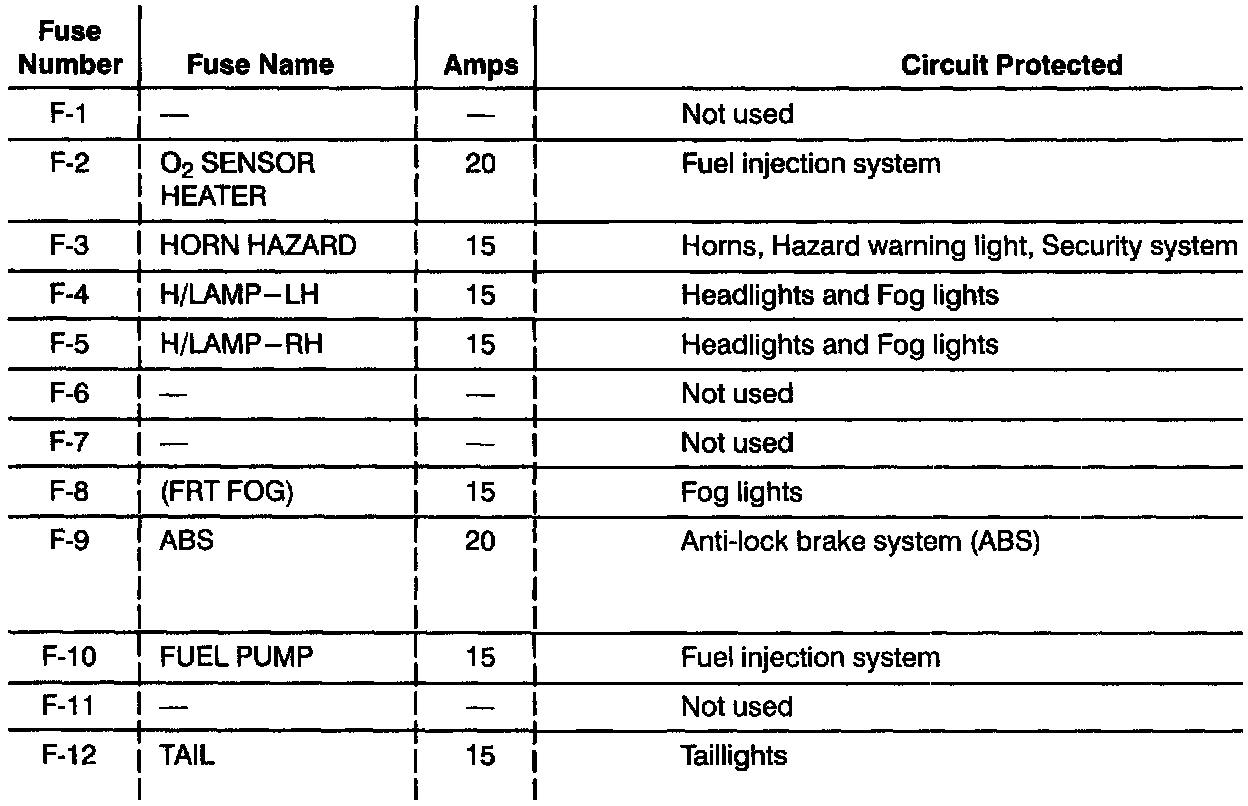

Fuse/Relay Box (Part 2 Of 2):
Fuse/Relay Box (Part 2 Of 2):
