Symbols

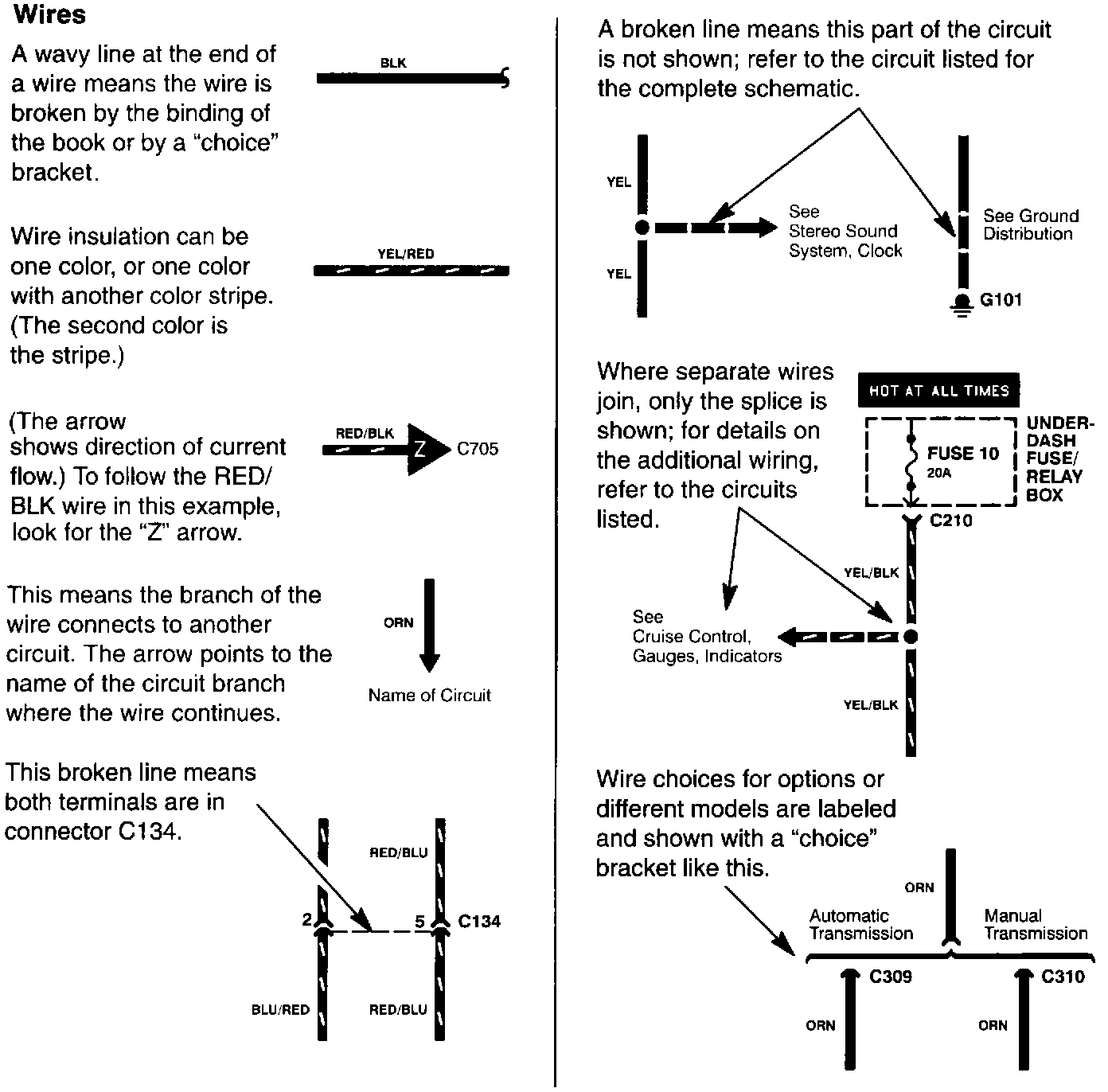

Wires:

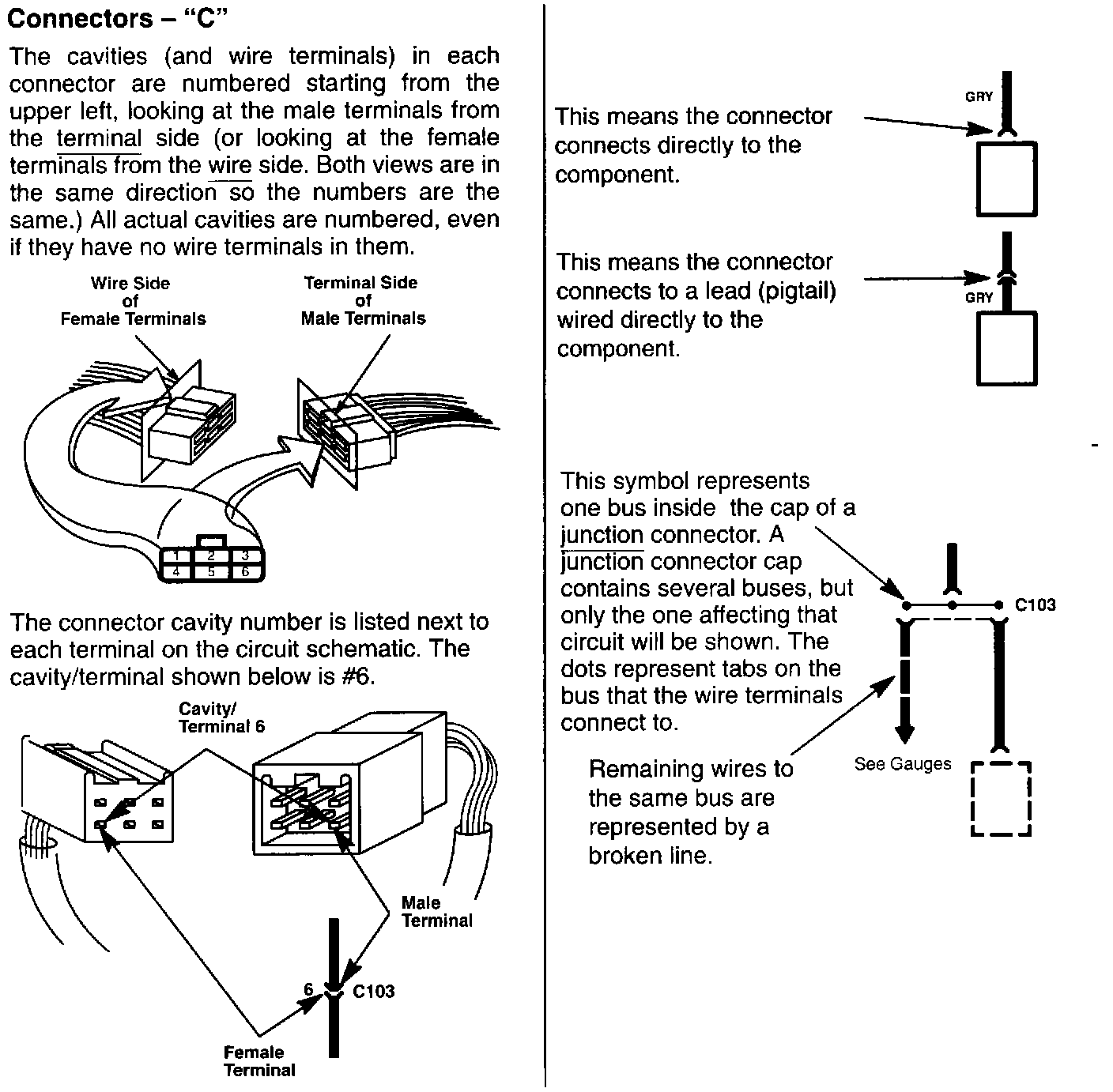

Connectors - "C":





Splices:





Components:

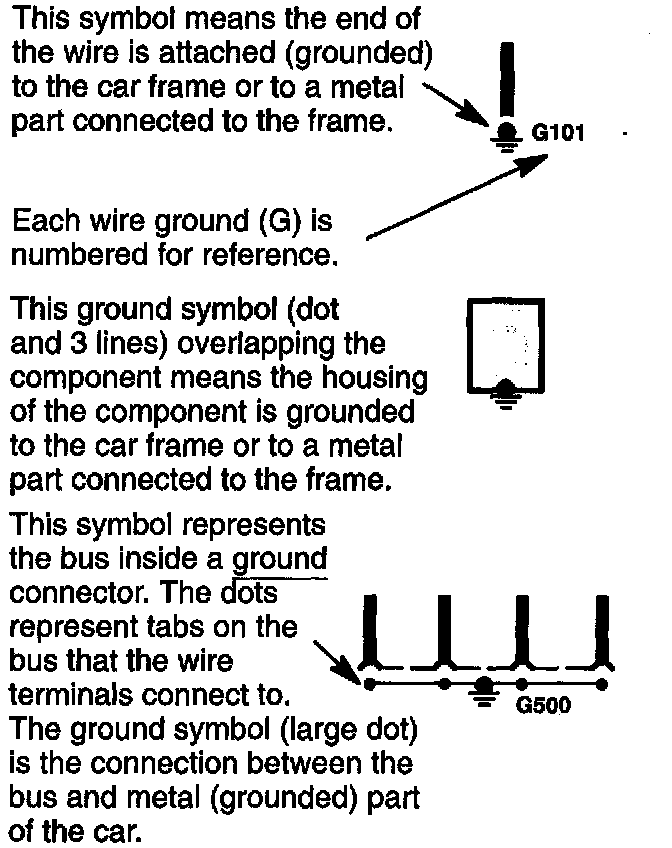

Ground - "G":





Terminals - "T":





Shielding:





Switches:





Fuses:





Diodes:
