Transmission Assembly

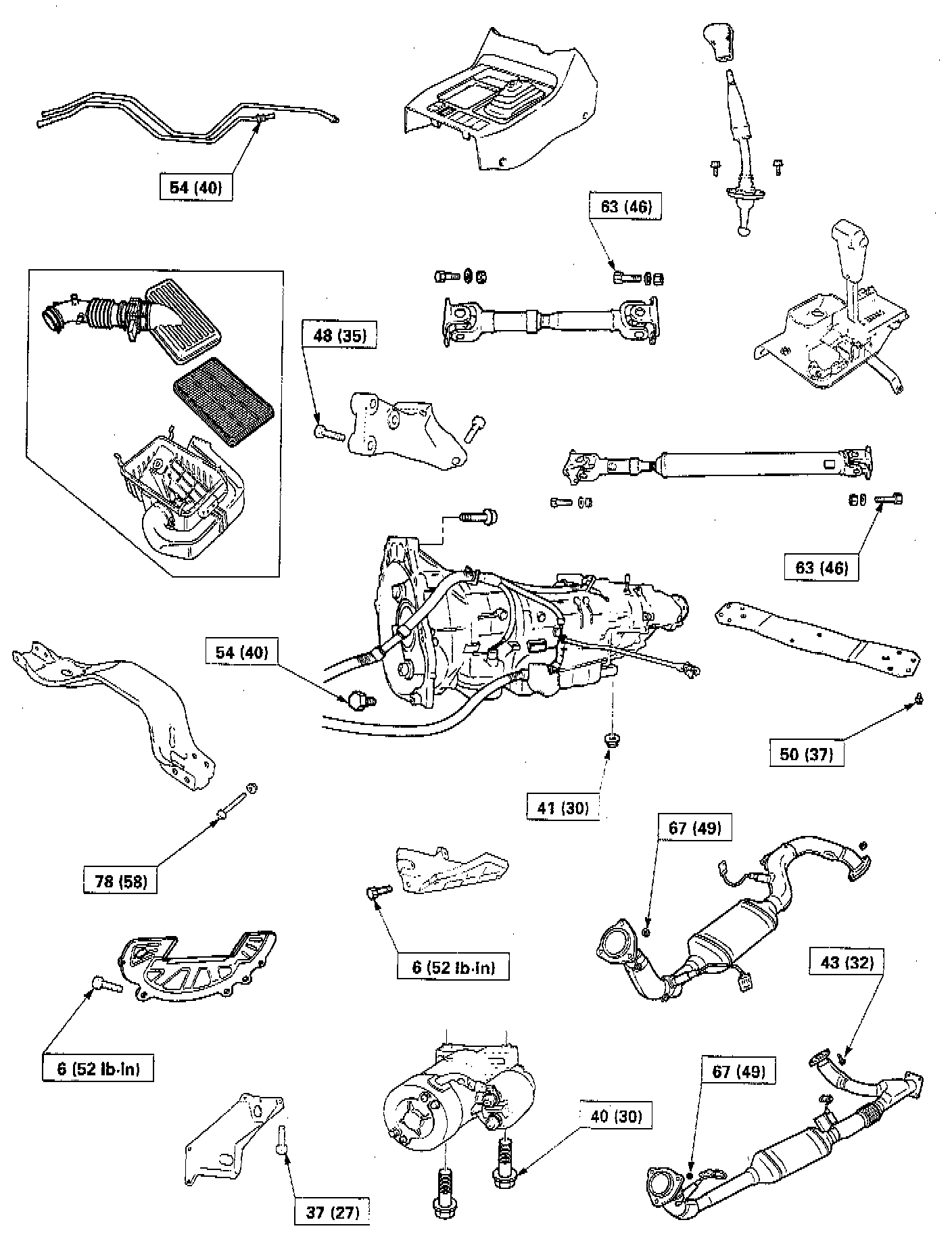

Captions Are Nm (ft. Lbs.) Part 1 Of 3:

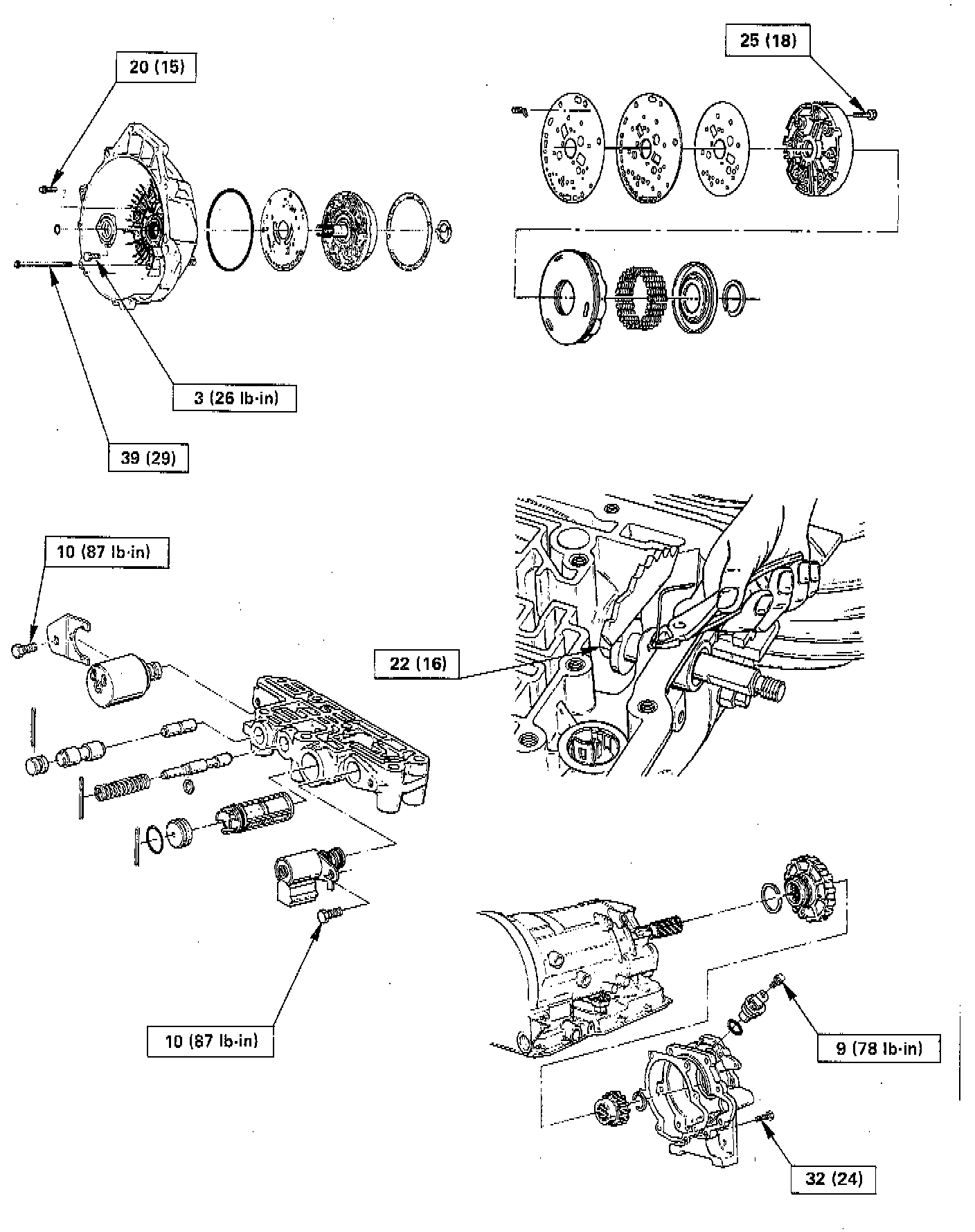

Captions Are Nm (ft. Lbs.) Part 2 Of 3:

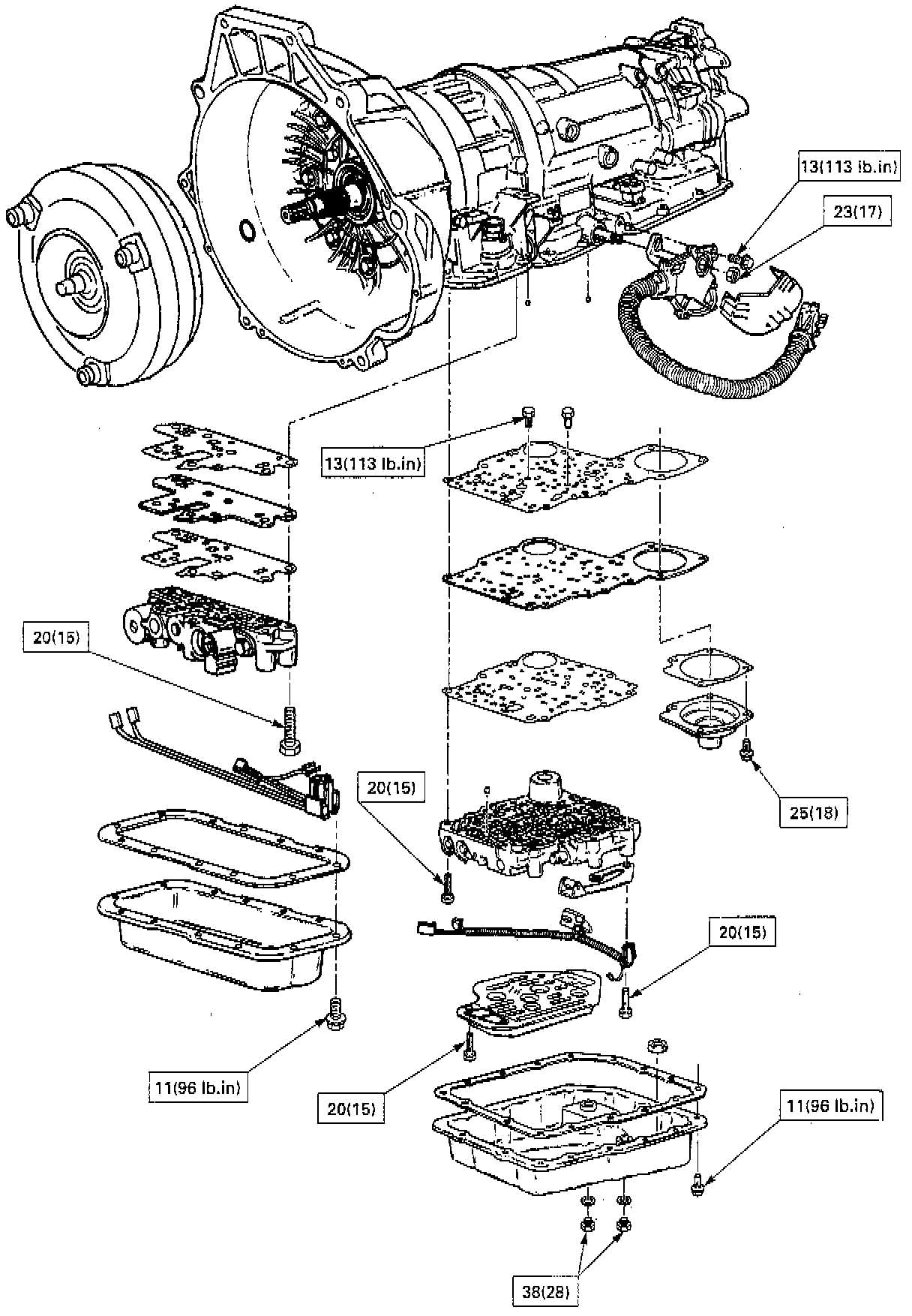

Captions Are Nm (ft. Lbs.) Part 3 Of 3:
