System Control Unit Input Tests

Remove passenger's seat. Disconnect 12-pin and 18-pin connectors from keyless entry and anti-theft control unit. Inspect connectors and terminals. Check for bent, loose or corroded terminals. Perform control unit input tests. See Fig 1 -Fig 4 . If control unit input test results are as specified, replace faulty security control unit.

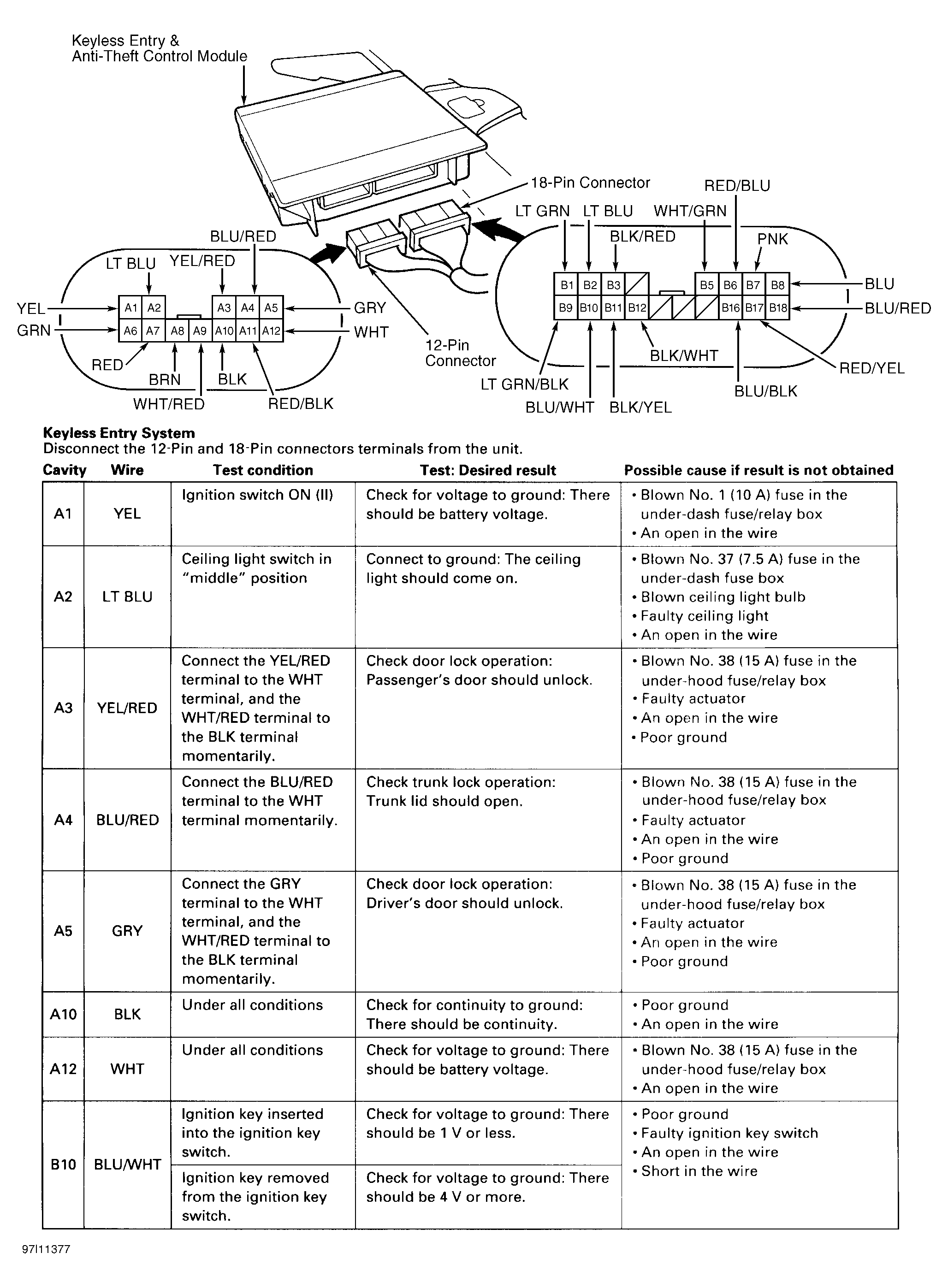

Fig 1: Keyless Entry System Control Unit Input Test (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

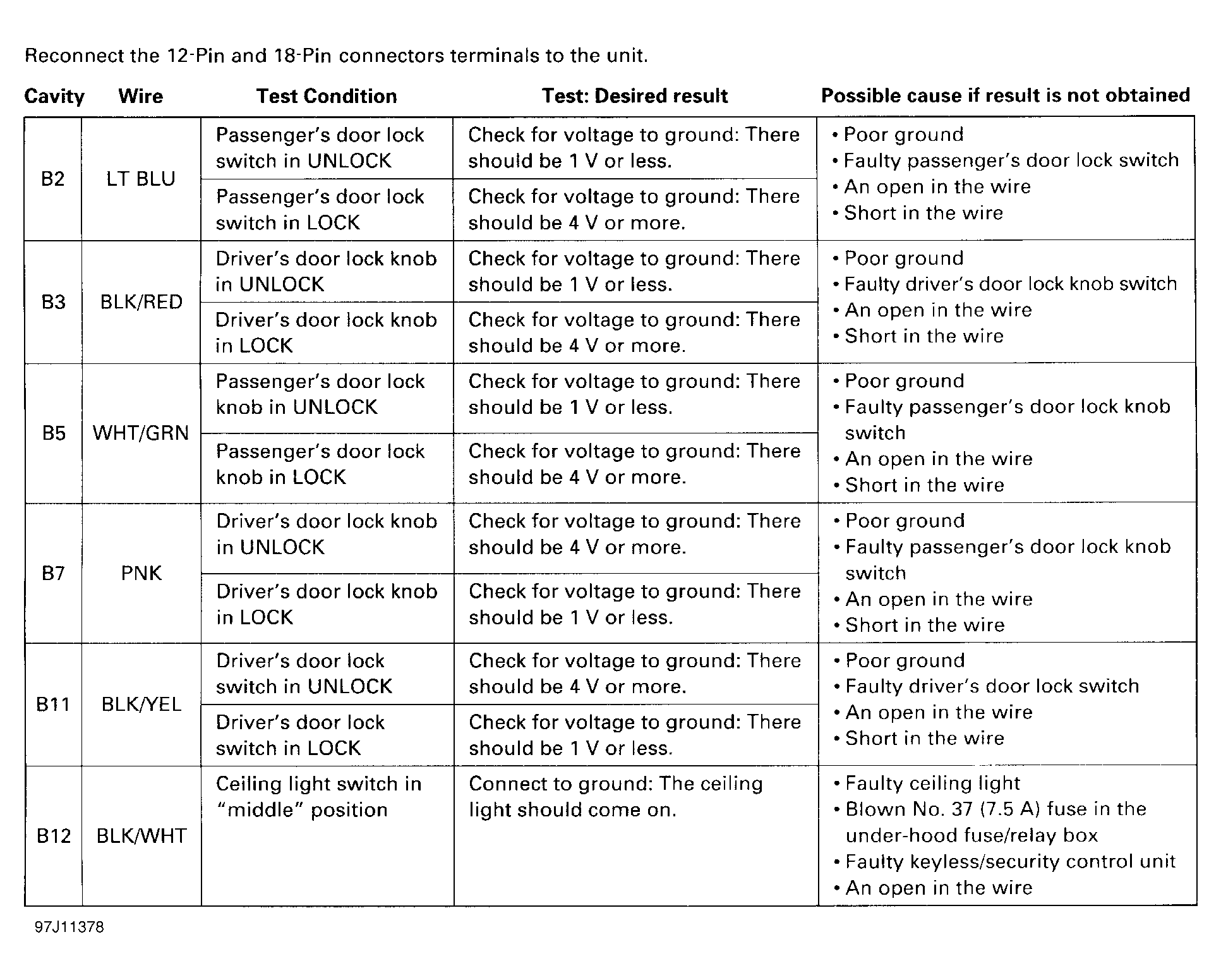

Fig 2: Keyless Entry System Control Unit Input Test (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

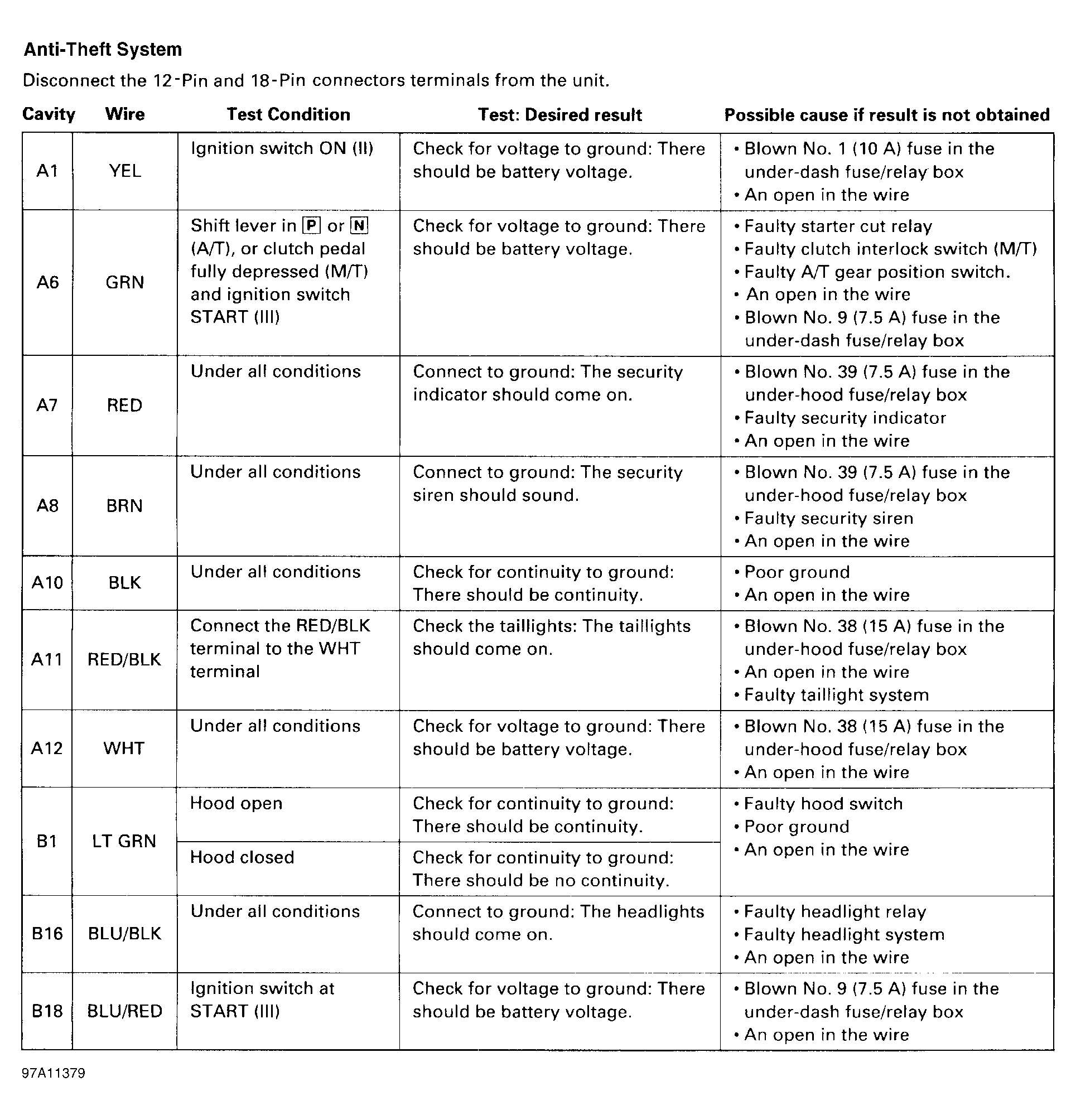

Fig 3: Anti-Theft System Control Unit Input Test (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

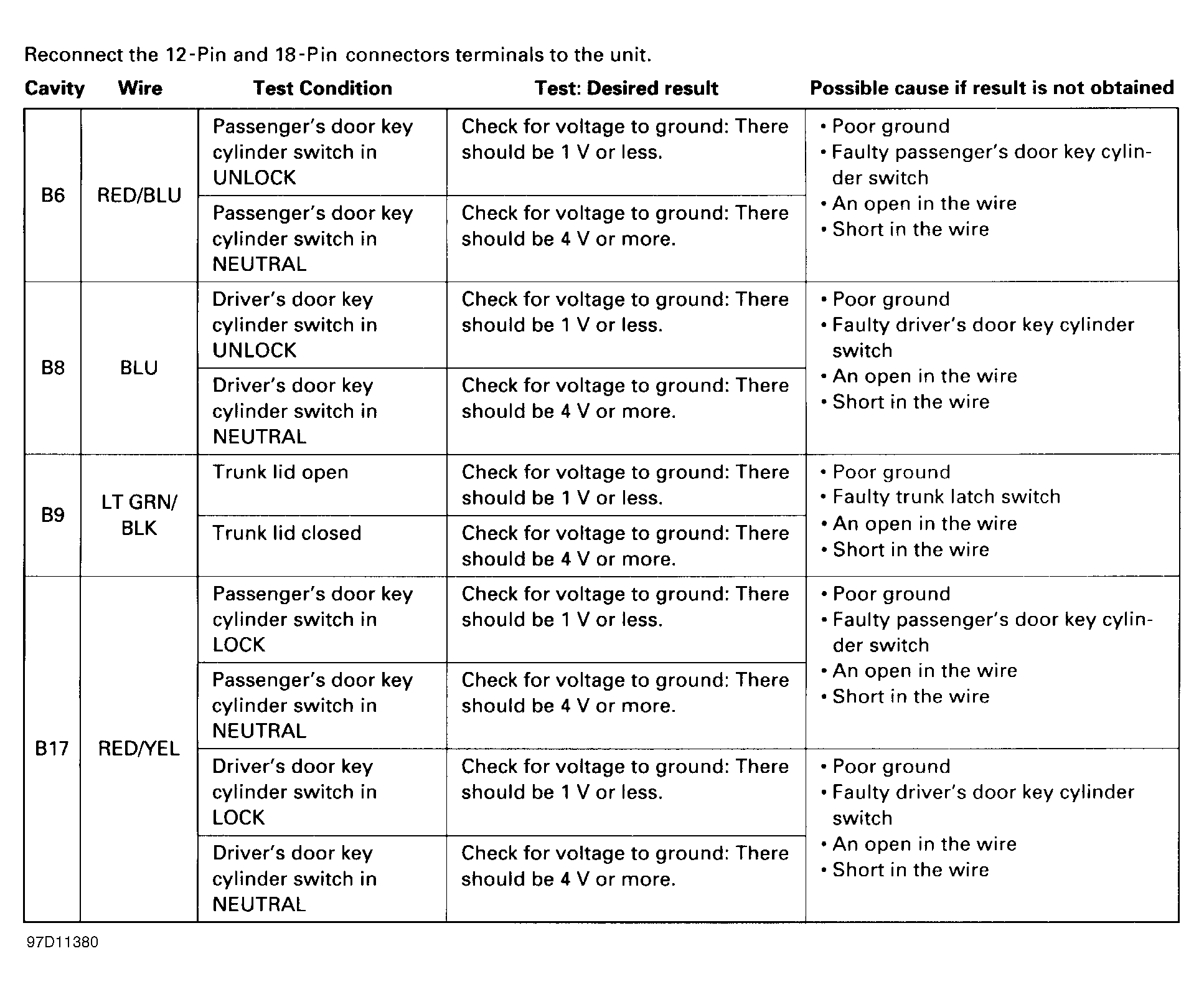

Fig 4: Anti-Theft System Control Unit Input Test (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
