Left Mirror Inoperative (2.3CL & 3.0CL)

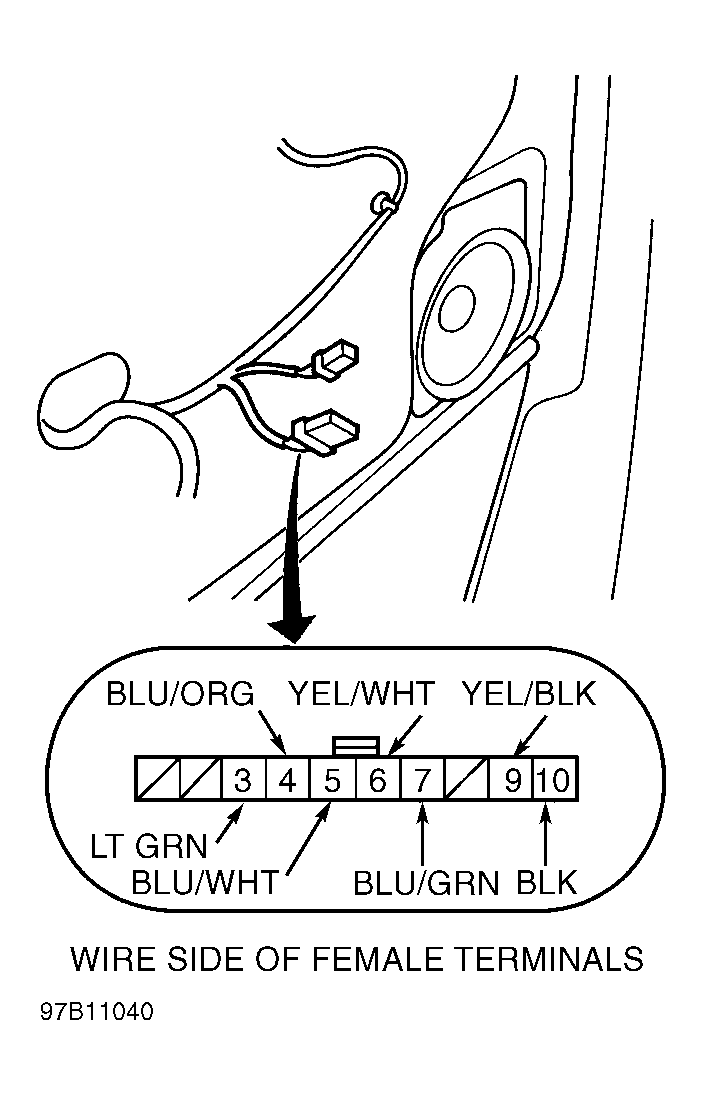

Connect a jumper wire between 10-pin connector terminal No. 9 (Yellow/Black wire) and terminal No. 7 (Blue/Green wire). See Figure. Connect jumper wire between 10-pin connector terminal No. 5 (Blue/White wire) and ground. Turn ignition on. Left mirror should tilt down. If mirror does not tilt down, check for open in Blue/White wire. If mirror does not tilt down or swing left, check for open in Blue/Green wire. If wires are okay, check mirror switch. See POWER MIRROR SWITCH TEST  under COMPONENT TESTS.
