Left Mirror Inoperative (Integra)

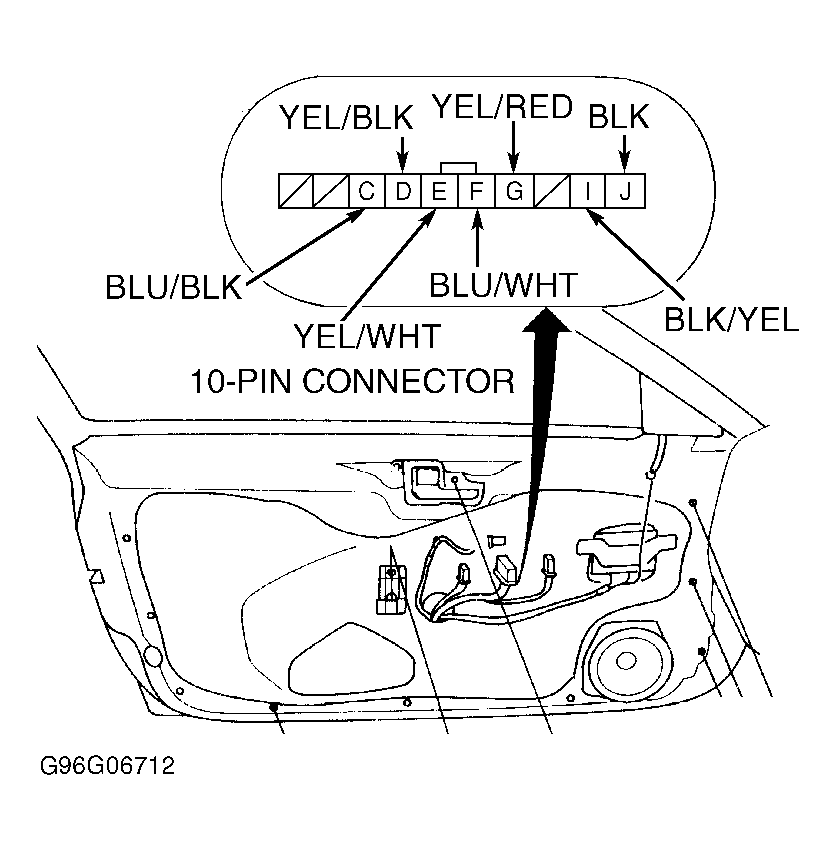

  1. Connect a jumper wire between power mirror switch connector terminal "I" (Black/Yellow wire) and terminal "G" (Yellow/Red wire). See Figure. Connect a jumper wire between terminal "E" (Yellow/White wire) and ground. Turn ignition on. Left mirror should tilt down. If mirror does not tilt down, check for open in Yellow/White wire. If wire is okay, go to next step.
  2. Move jumper wire from terminal "E" (Yellow/White wire) to terminal "D" (Yellow/Black wire). Left mirror should swing left. If mirror does not swing left, check for open in Yellow/Black wire. If wire is okay, check left mirror motor. See POWER MIRROR MOTOR TEST  under COMPONENT TESTS. If mirror does not tilt down and does not swing left, check for open in Yellow/Red wire. If mirror operates properly, check power mirror switch. See POWER MIRROR SWITCH TEST  under COMPONENT TESTS.
