Component Locations

COMPONENT LOCATIONS

Component (1) Location
Actuator Assembly On Right Side Of Engine Compartment Against Firewall
A/T Gearshift Position Switch In Center Console
Brakelight Switch Under Dash On Pedal Bracket
Clutch Switch (M/T) Under Instrument Panel On Pedal Bracket
Cruise Control Unit Under Left Side Of Instrument Panel Under Knee Bolster & Lower Cover
Main Switch In Instrument Panel To Left Of Steering Column
SET/RESUME Switch In Steering Wheel
(1) SeeFig 1 or Fig 2 .
Fig 1: Locating Instrument Panel Cruise Control Components
G97I11385Courtesy of AMERICAN HONDA MOTOR CO., INC.

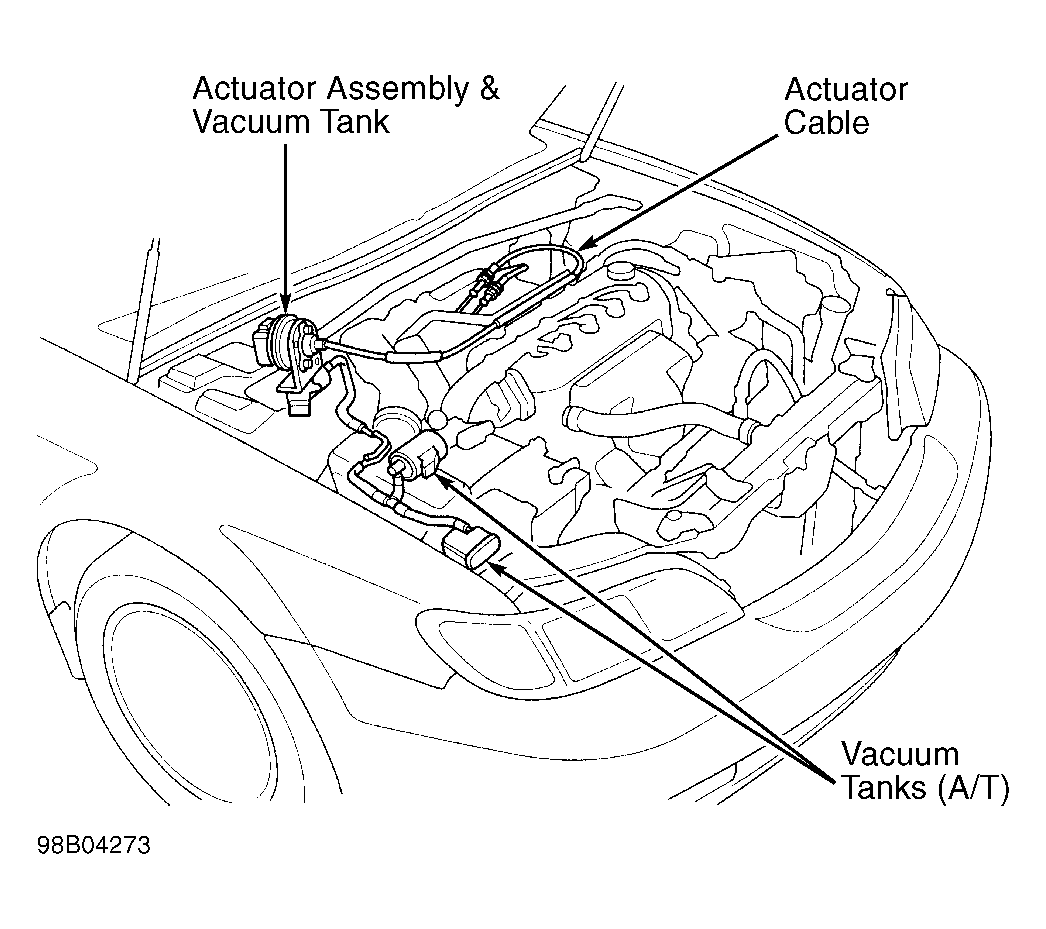

Fig 2: Locating Engine Compartment Cruise Control Components
G98B04273Courtesy of AMERICAN HONDA MOTOR CO., INC.
