Gearshift Position Switch: 3.2TL

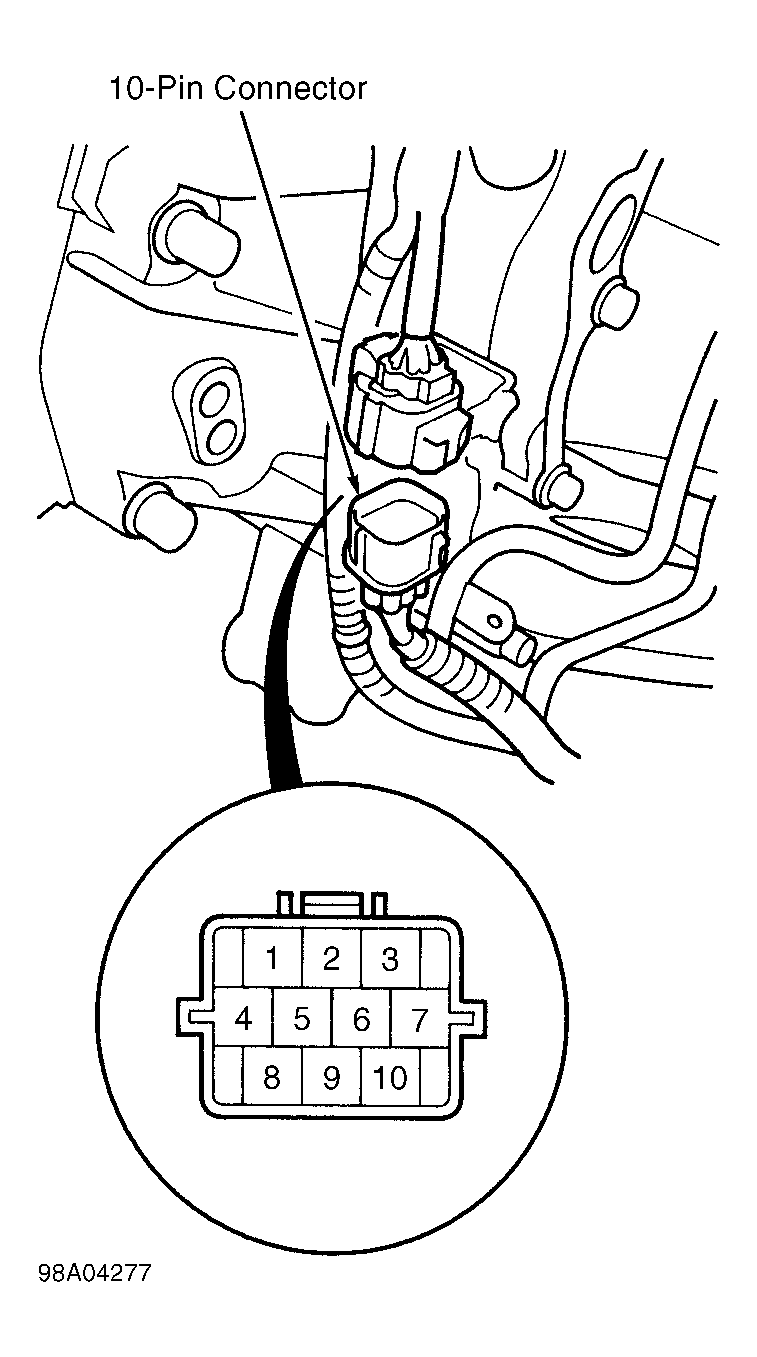

Raise vehicle. Disconnect gearshift position switch connector. Use a DVOM and check for continuity between specified terminals while moving the gearshift lever to specified positions. Refer to the GEARSHIFT POSITION SWITCH TEST (3.2TL) table. Also, see Fig 1 . If switch tests okay, test is complete. If switch does not indicate continuity in any position, adjust switch and retest. See ADJUSTMENTS . If one or more terminals do not indicate continuity, replace switch. See GEARSHIFT POSITION SWITCH under REMOVAL & INSTALLATION.
GEARSHIFT POSITION SWITCH TEST (3.2TL)
| Shifter | Continuity Between Ground & Terminal No. |
|---|---|
| "2" | 8 & 9 |
| "D" | 8 & 9 |
| "D4" | 8 & 9 |
