Driver's Power Seat Switch Test

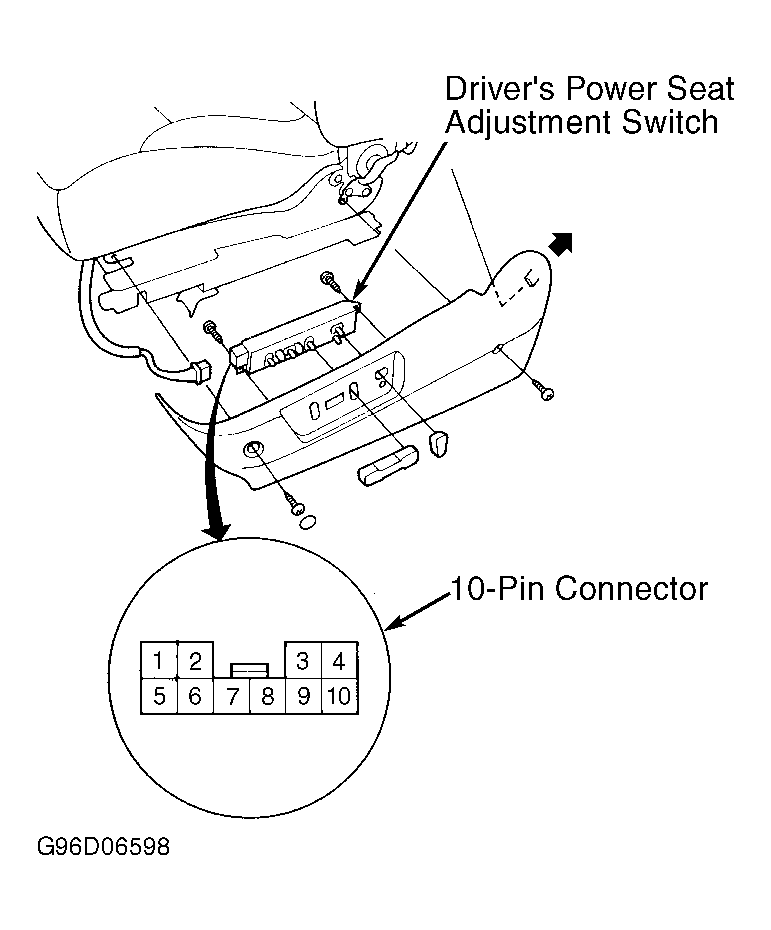

Remove driver's power seat switch. See DRIVER'S POWER SEAT SWITCH under REMOVAL & INSTALLATION. Disconnect driver's power seat switch 10-pin connector. See Fig 1. Using an ohmmeter, verify continuity is as specified in DRIVER'S POWER SEAT SWITCH CONTINUITY table. If switch fails any test, replace faulty switch.
DRIVER'S POWER SEAT SWITCH CONTINUITY
| Position | Continuity Between Terminals | |
|---|---|---|
| Slide Switch | ||
| Forward | 6 & 8 | |
| Backward | 6 & 9 | |
| Recline Switch | ||
| Forward | 1 & 5 | |
| Backward | 2 & 5 | |
| Front Up-Down Switch | ||
| Up | 6 & 10 | |
| Down | 6 & 7 | |
| Rear Up-Down Switch | ||
| Up | 3 & 5 | |
| Down | 4 & 5 | |
