Fuse Block

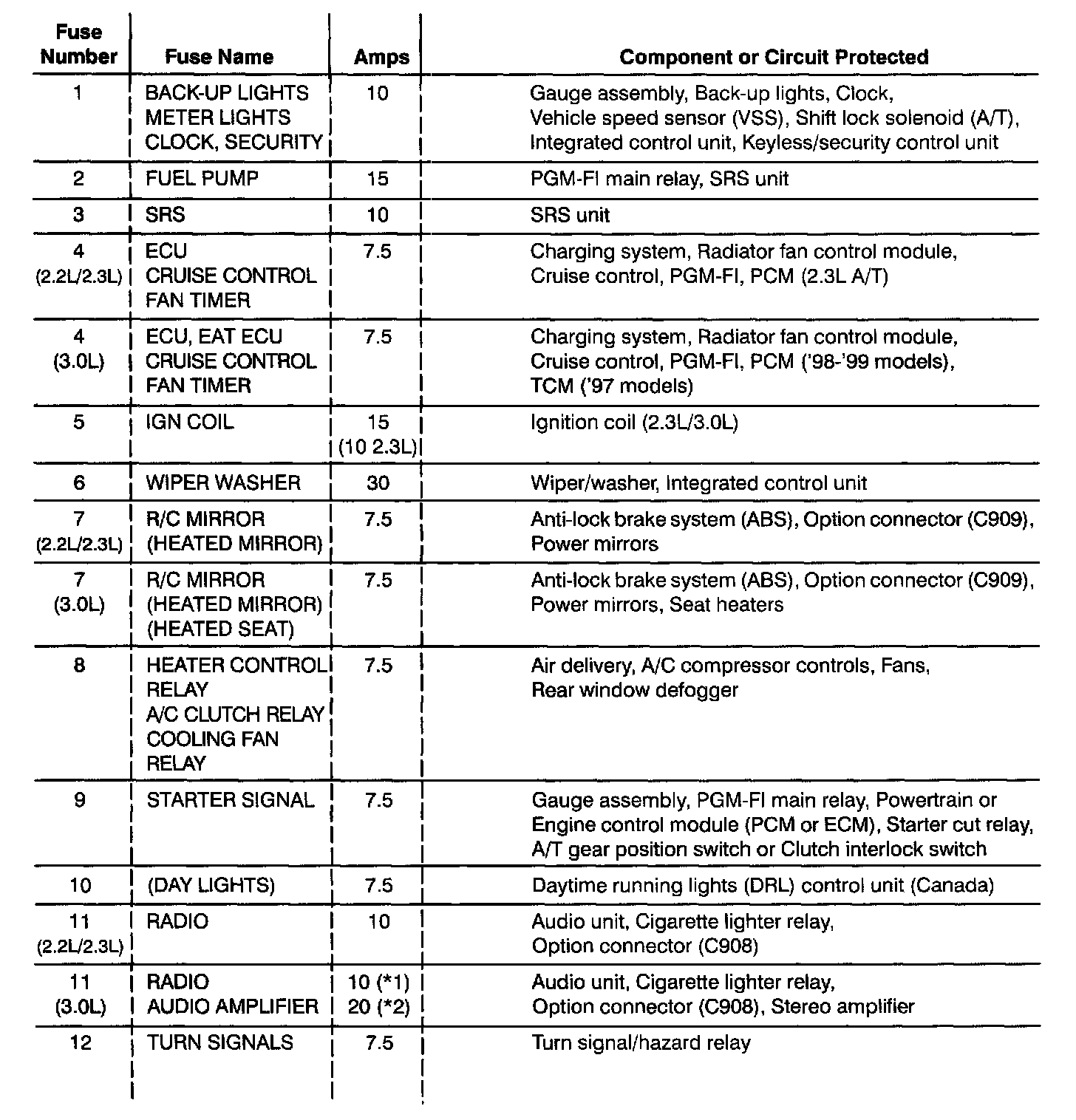

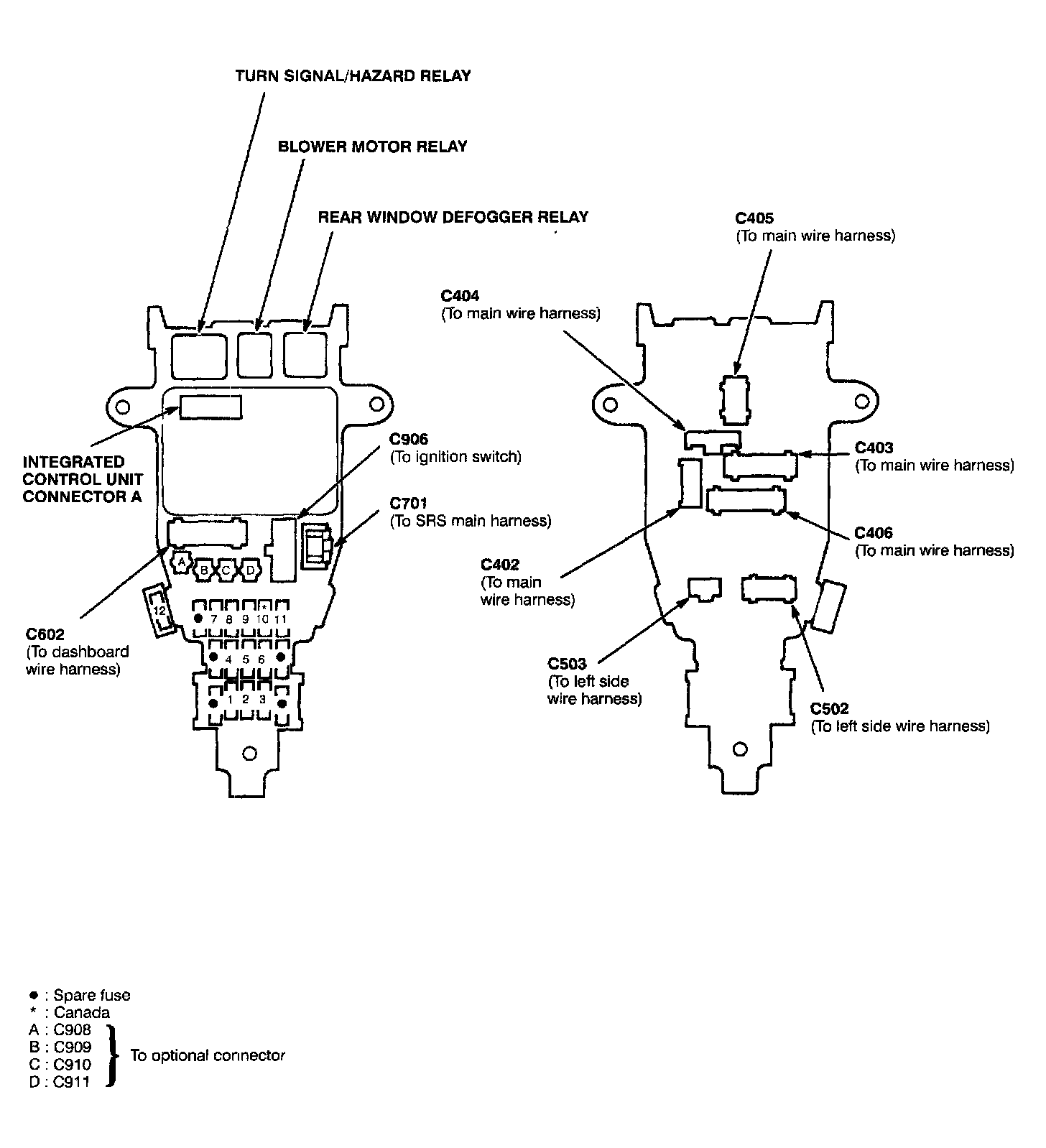

UNDER-DASH FUSE/RELAY BOX

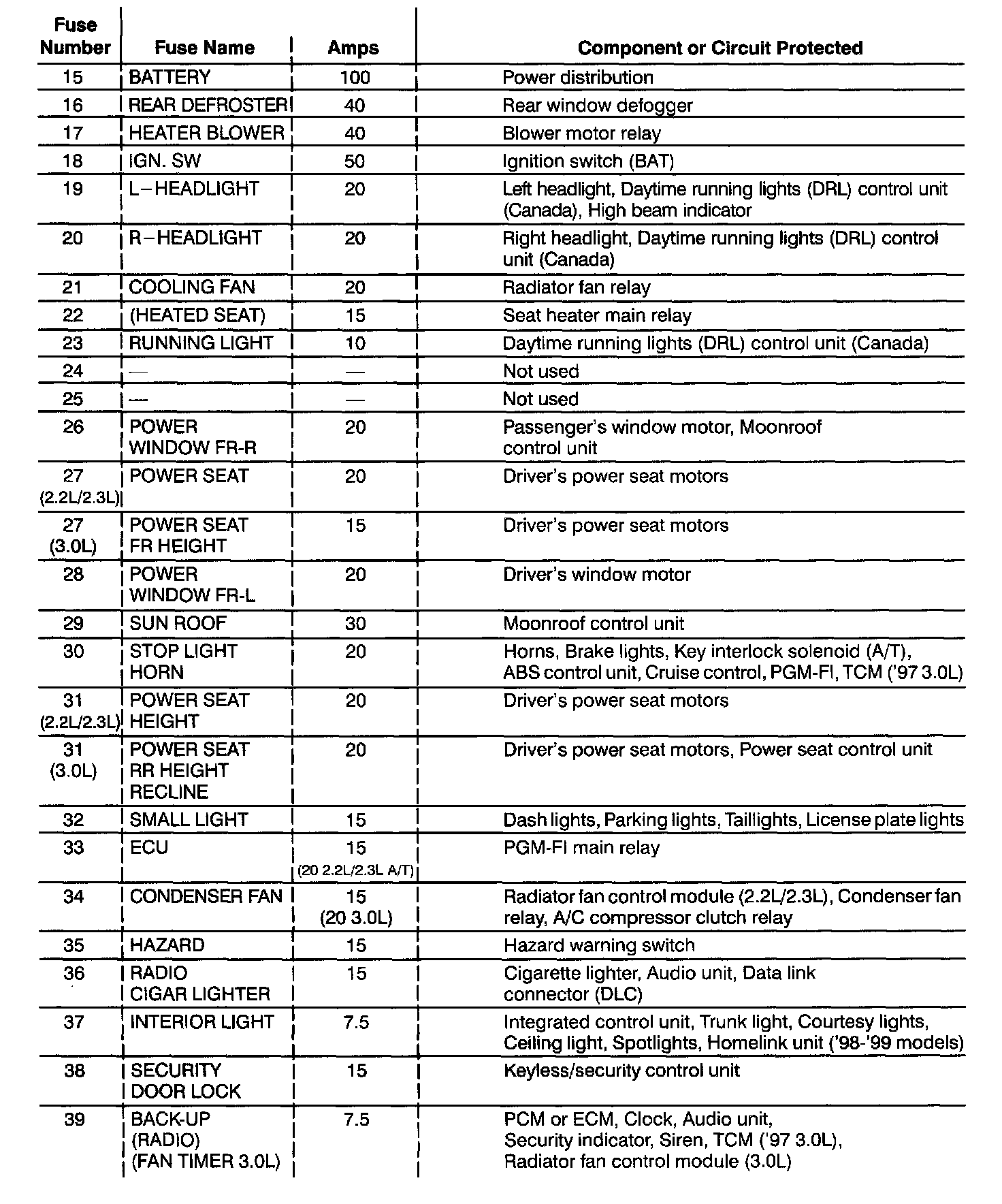

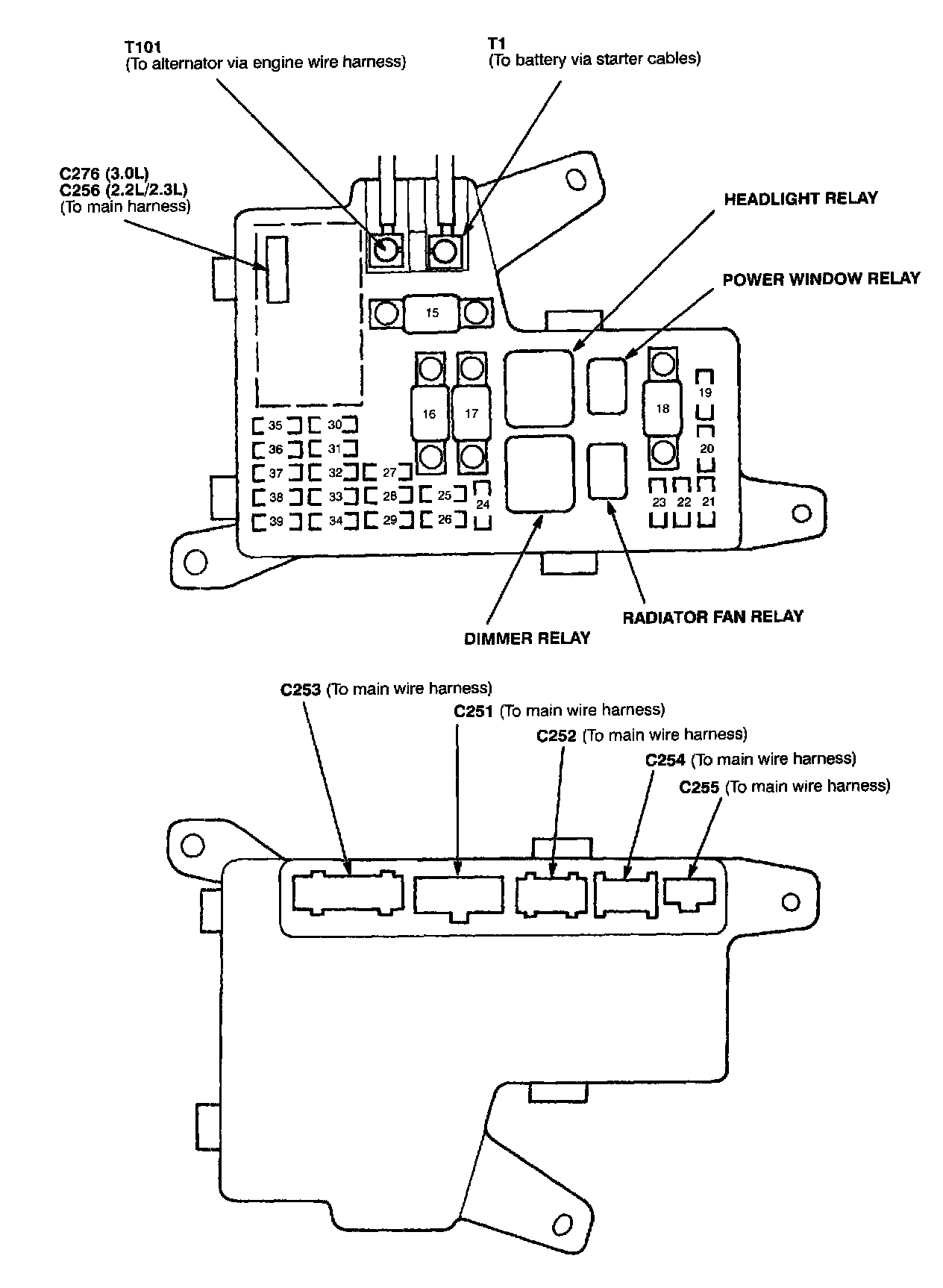

UNDER-HOOD FUSE/RELAY BOX








UNDER-HOOD ABS FUSE/RELAY BOX
