Keyless Entry Module: Testing and Inspection

SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the Supplemental Restraint System before performing repairs or service.

1. Remove the passenger's seat.

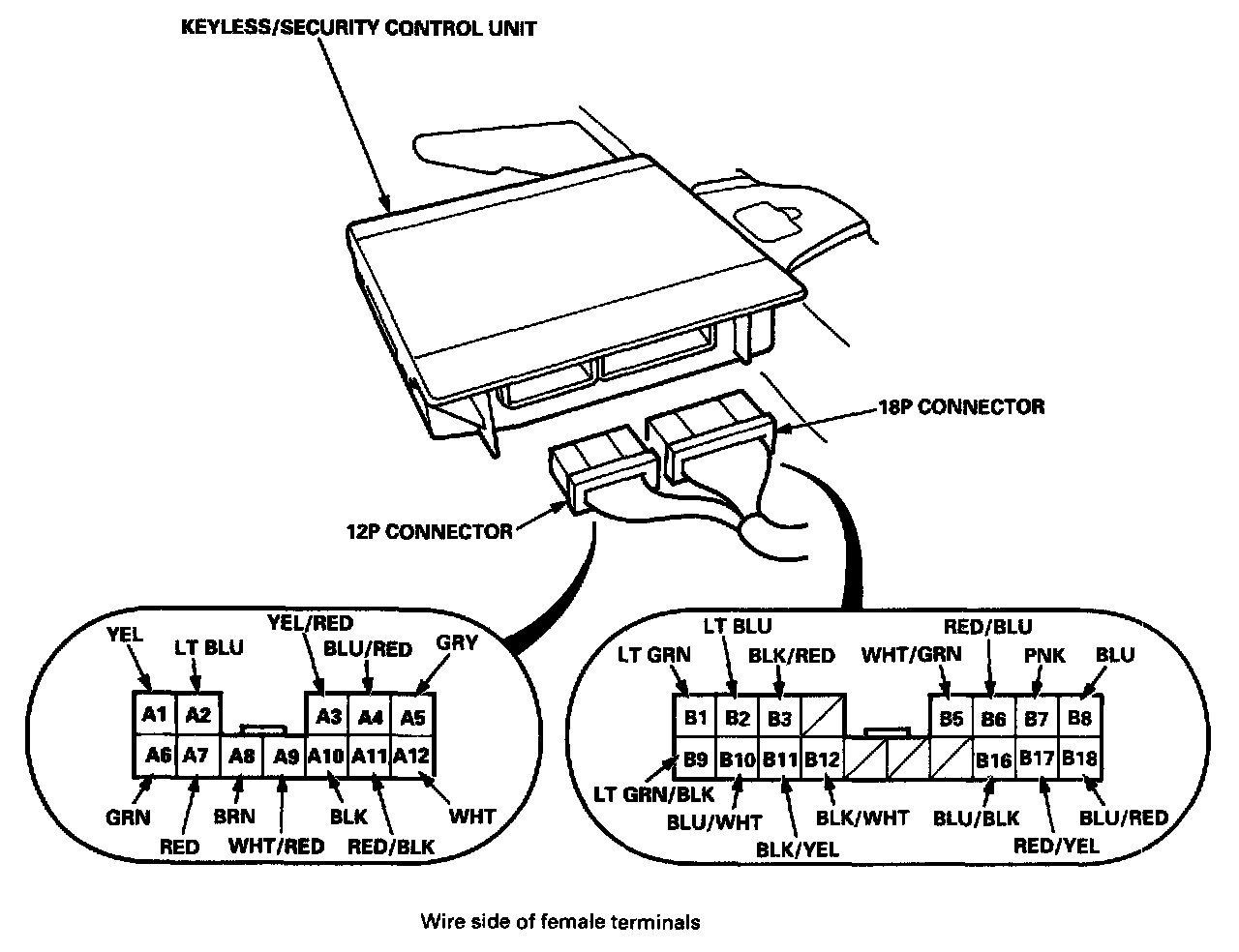

2. Disconnect the 12P and 18P connectors from the security control unit.
3. Inspect the connector and socket terminals to be sure they are all making good contact.
If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.

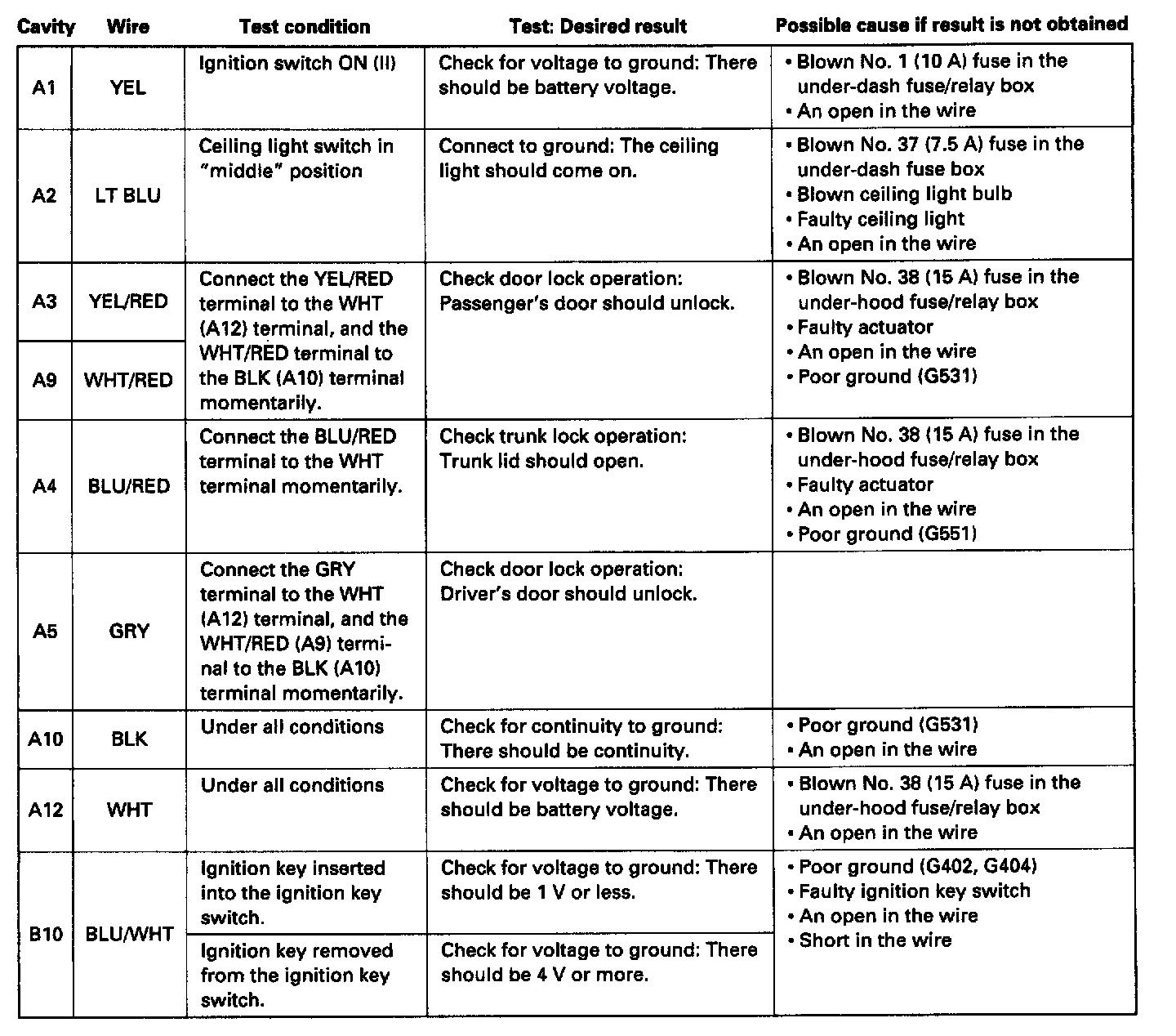

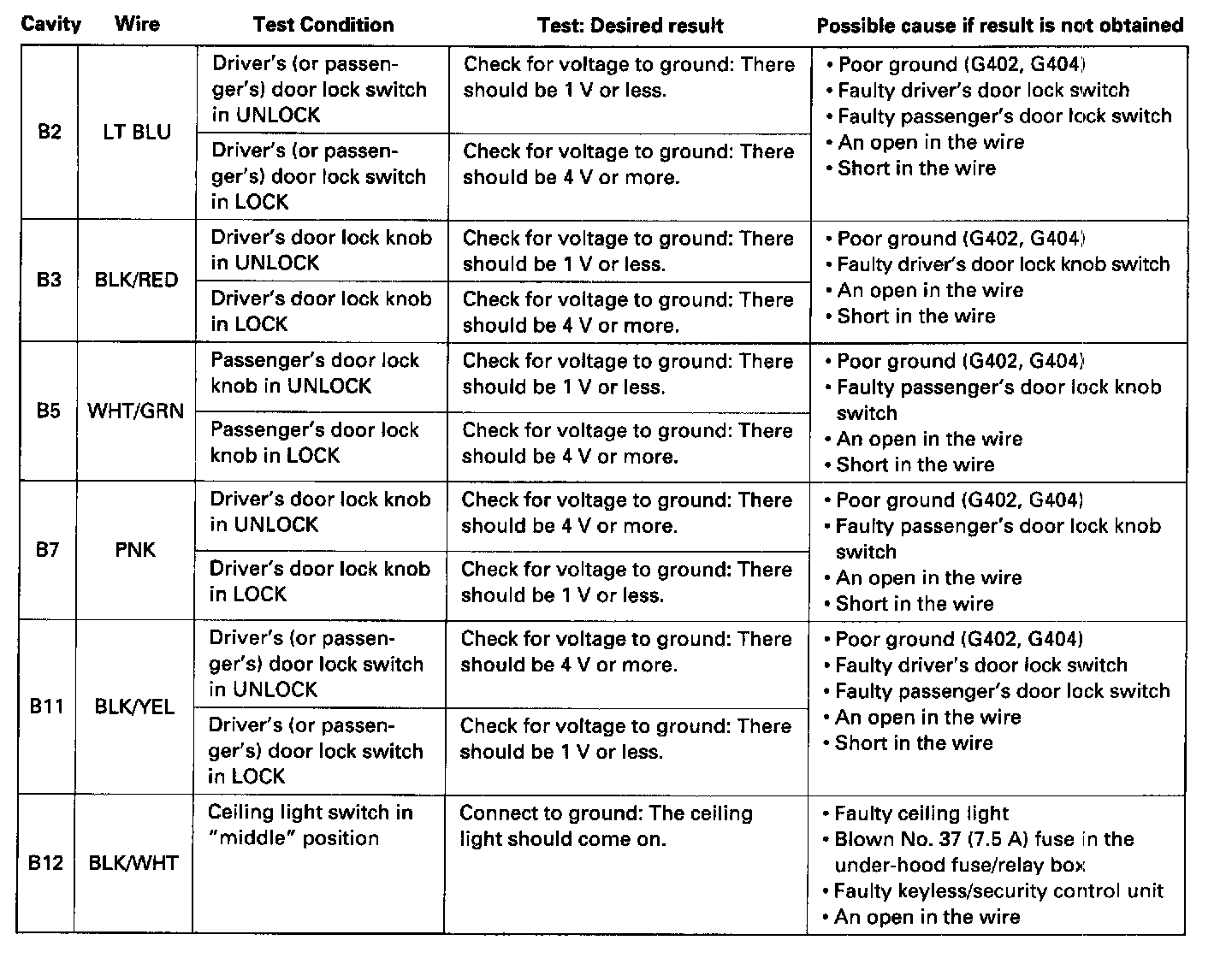

If the terminals look OK, make the following input tests at the connector terminals.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the control unit must be faulty; replace it.




Keyless Entry System:




Disconnect the 12P and 18P connectors terminals from the unit.




Reconnect the 12P and 18P connectors terminals to the unit.
