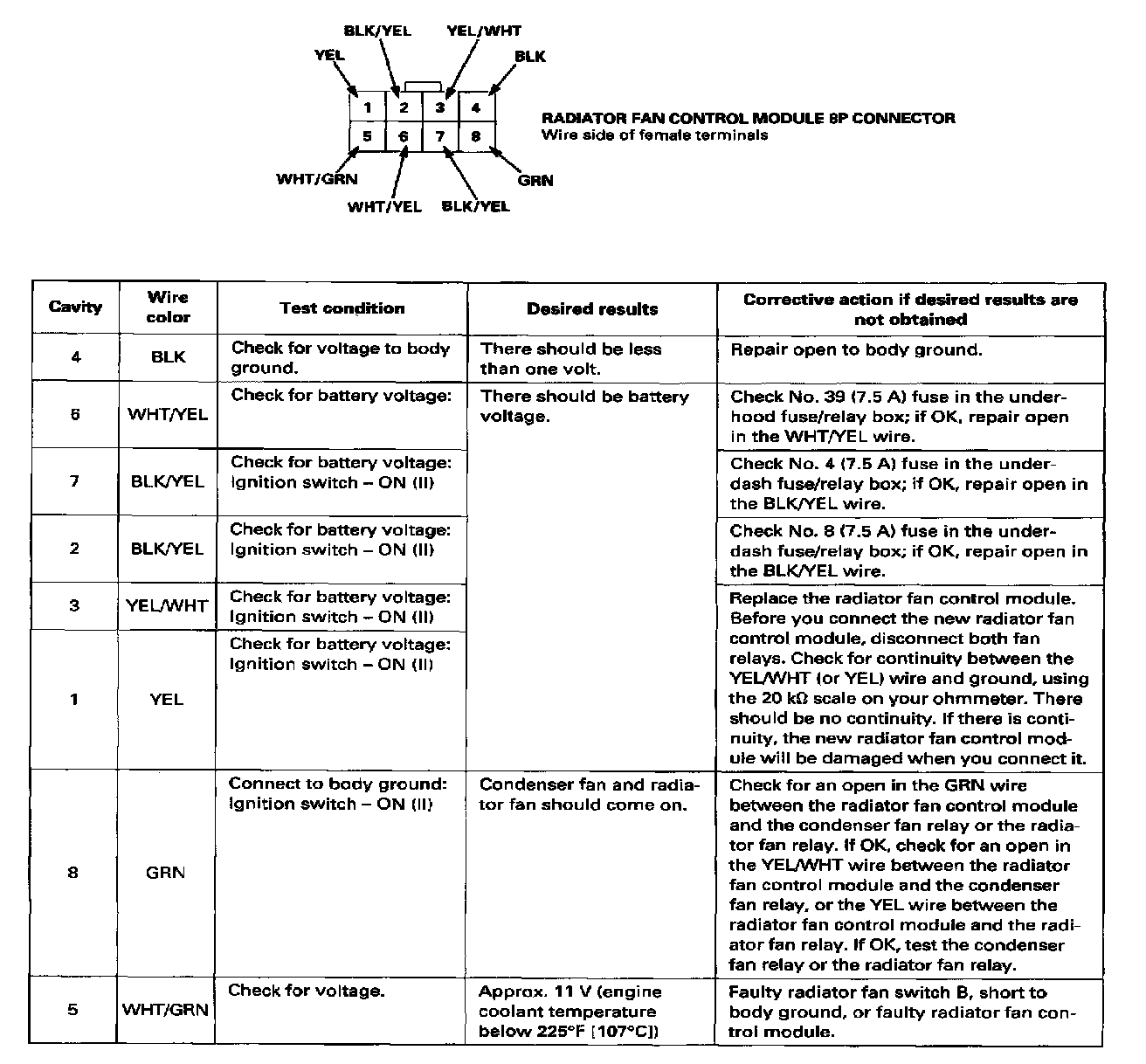

Radiator Cooling Fan Control Module: Testing and Inspection

NOTE: Perform the following tests with the radiator fan control module 8P Connector connected, the ignition switch ON (II). and the A/C switch OFF. If you find the cause of a problem, Correct it before you continue.
