Torque Specifications

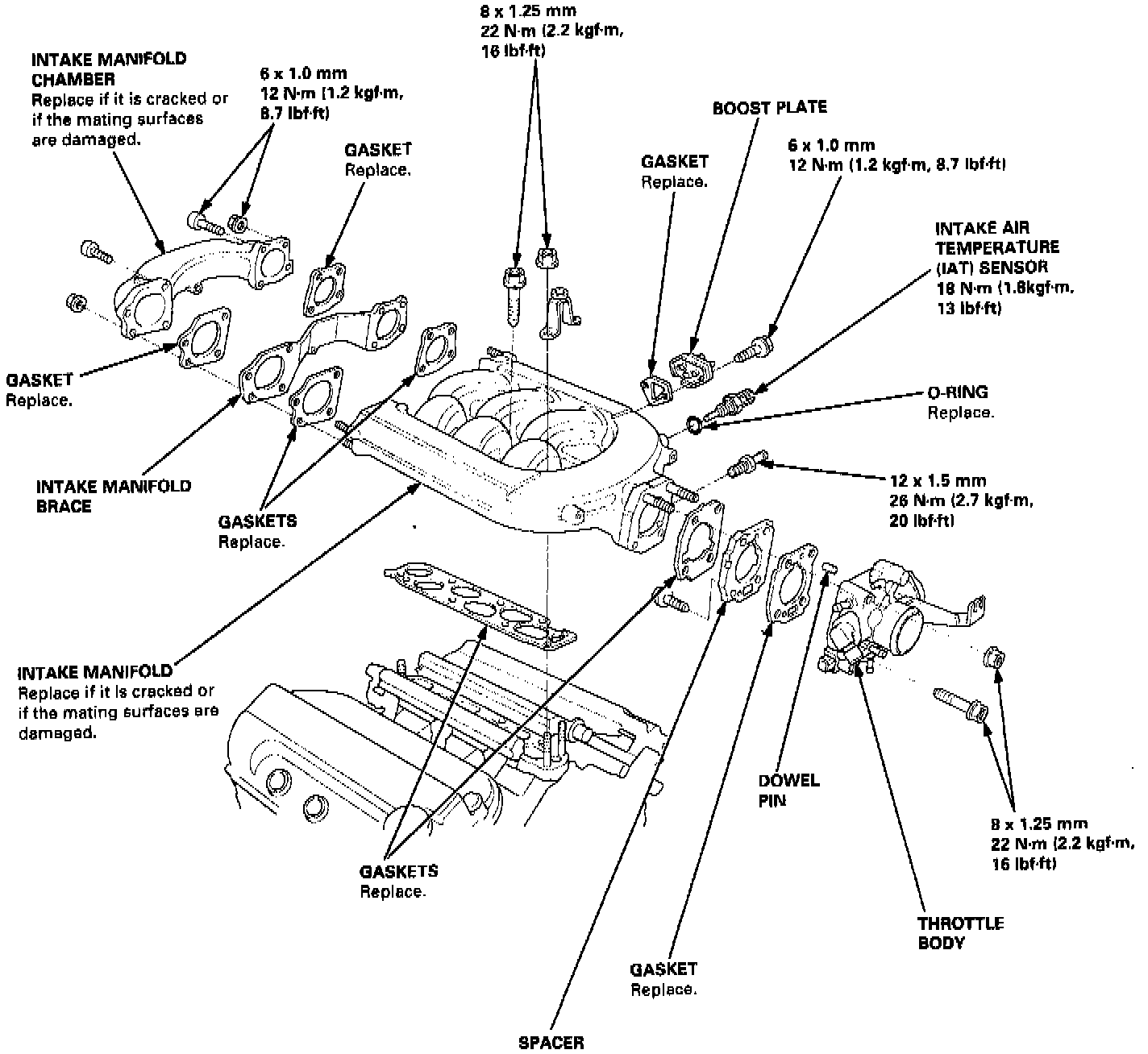

Intake:

Exhaust Manifold:

Exhaust Manifold:

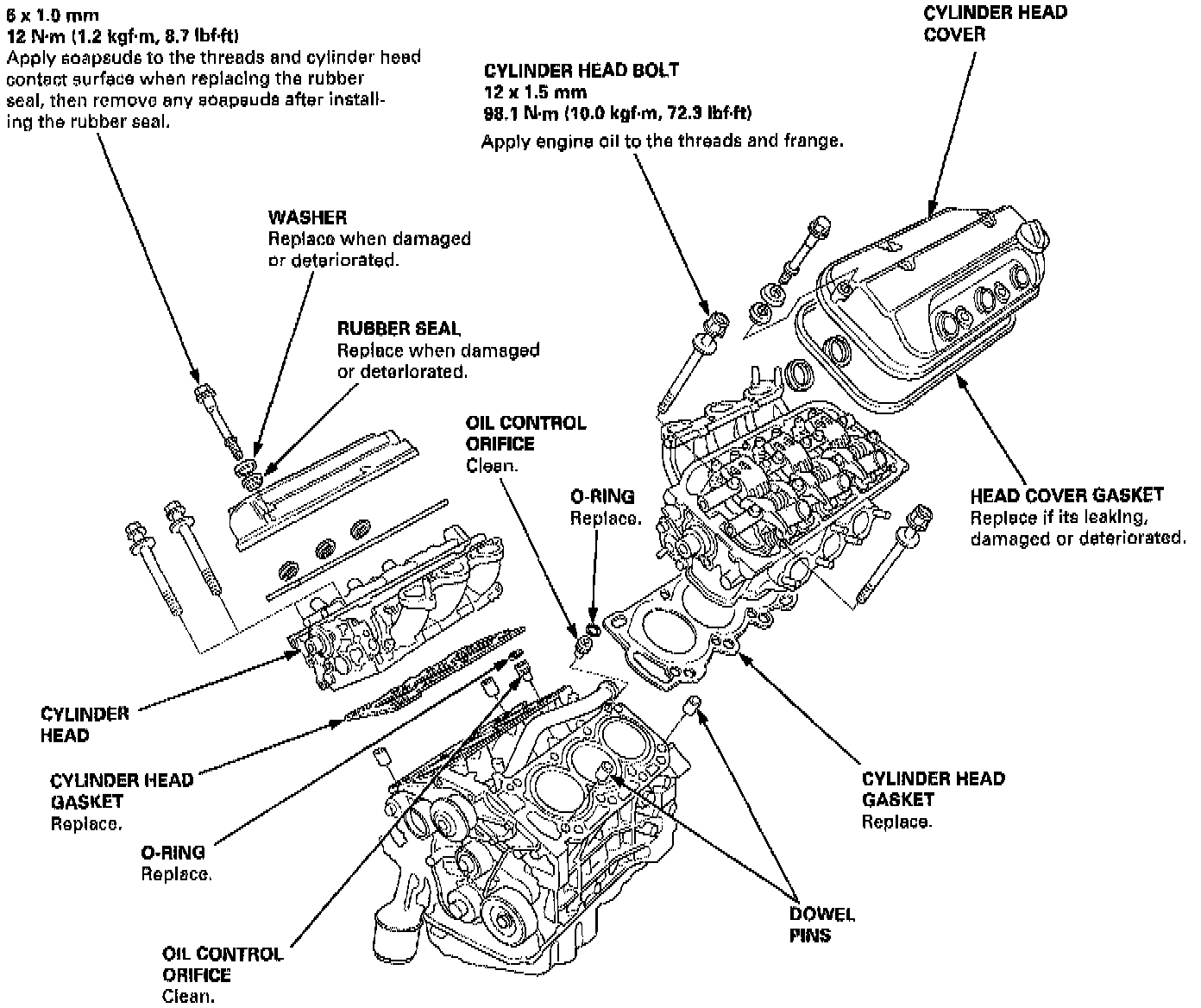

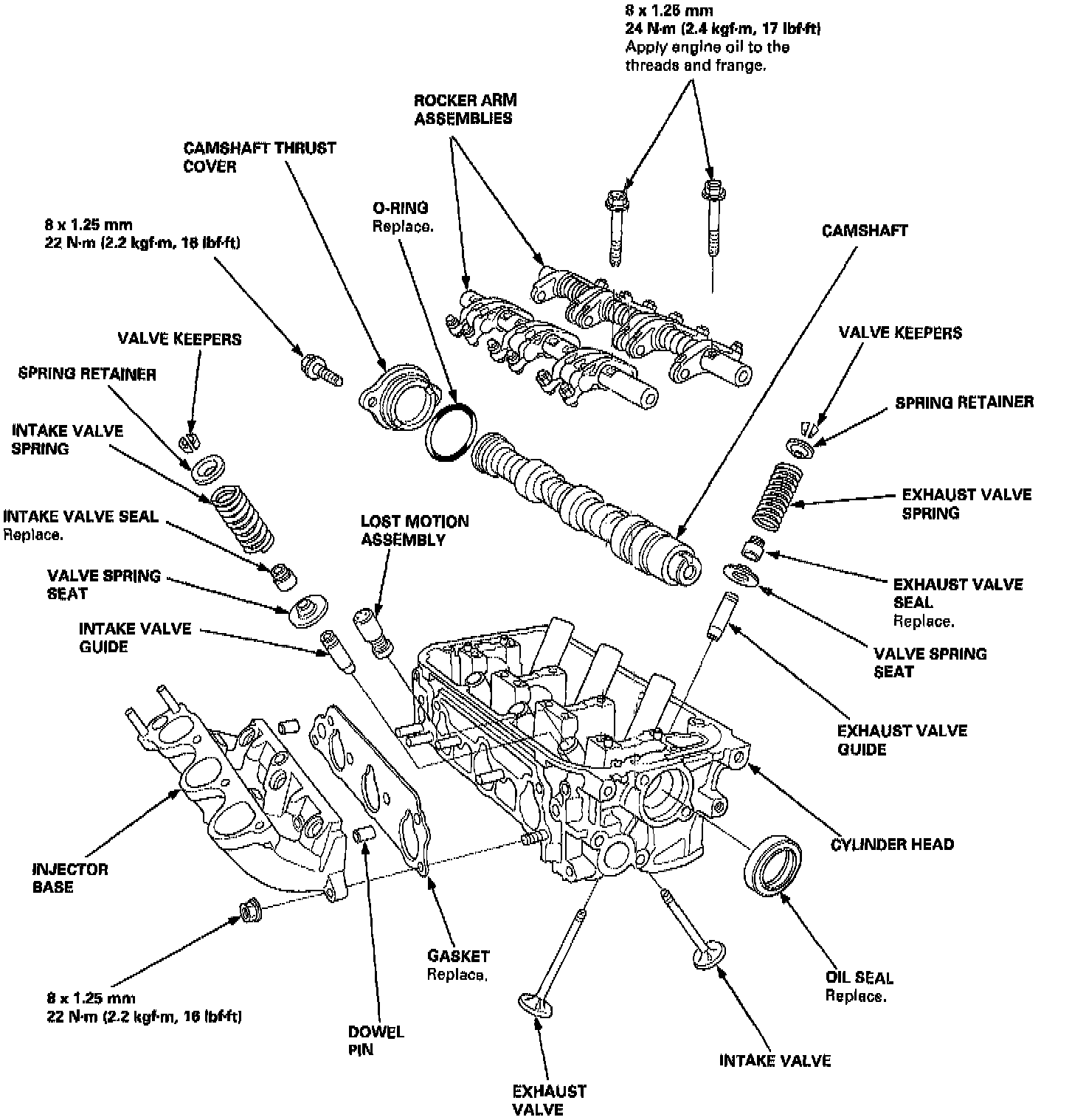

Upper Engine:

Torque Sequence:

Head Tightening Sequence:

Tighten the cylinder head bolts sequentially in three steps. Perform each step twice.:


1st step torque: 39.0 Nm (29.0 ft. lbs.)
2nd step torque: 69.0 Nm (51.0 ft. lbs.)
3rd step torque: 98.1 Nm (72.3 ft. lbs.)
