Control Module: Testing and Inspection

The PCM terminal voltage and measuring conditions are shown for the connector terminals that are related to the A/T control system. The other PCM terminal voltage and measuring conditions are described under Powertrain Management.





PCM Terminal Locations

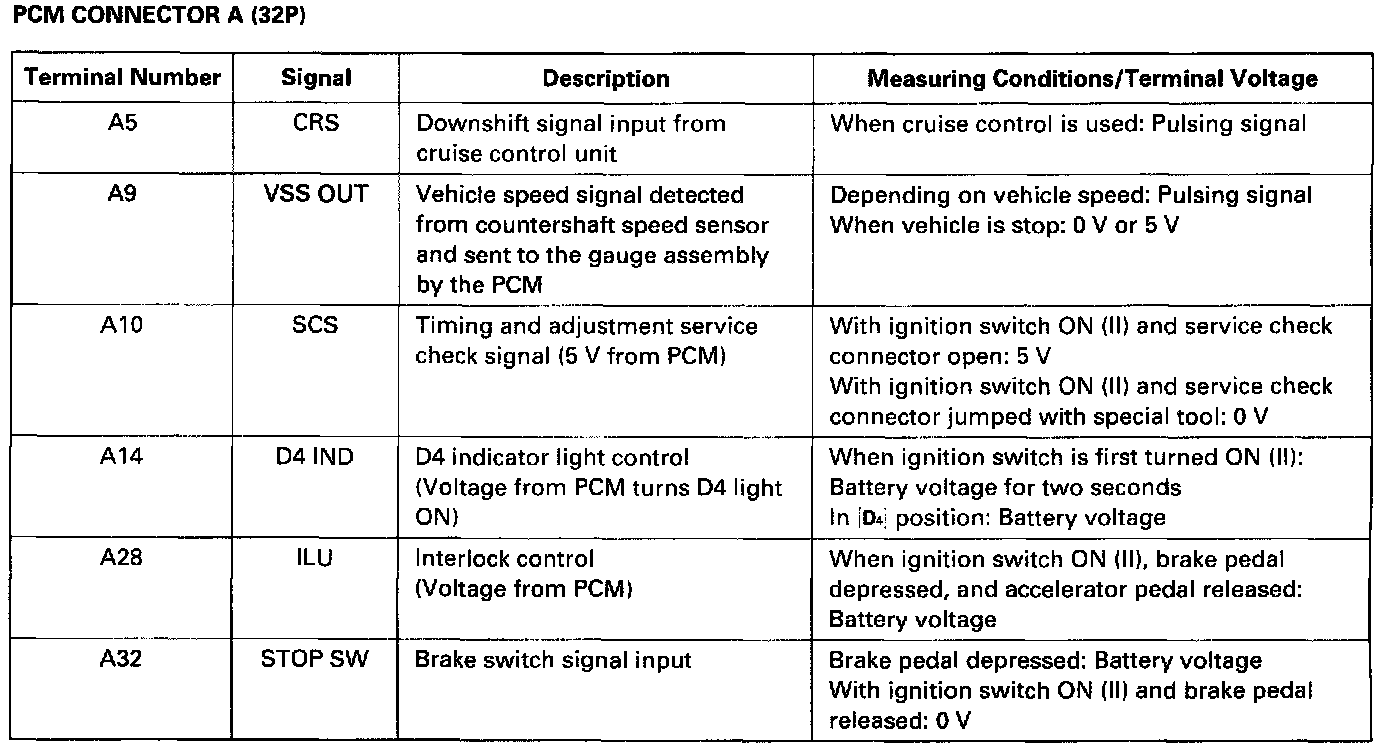

PCM CONNECTOR A (32P)

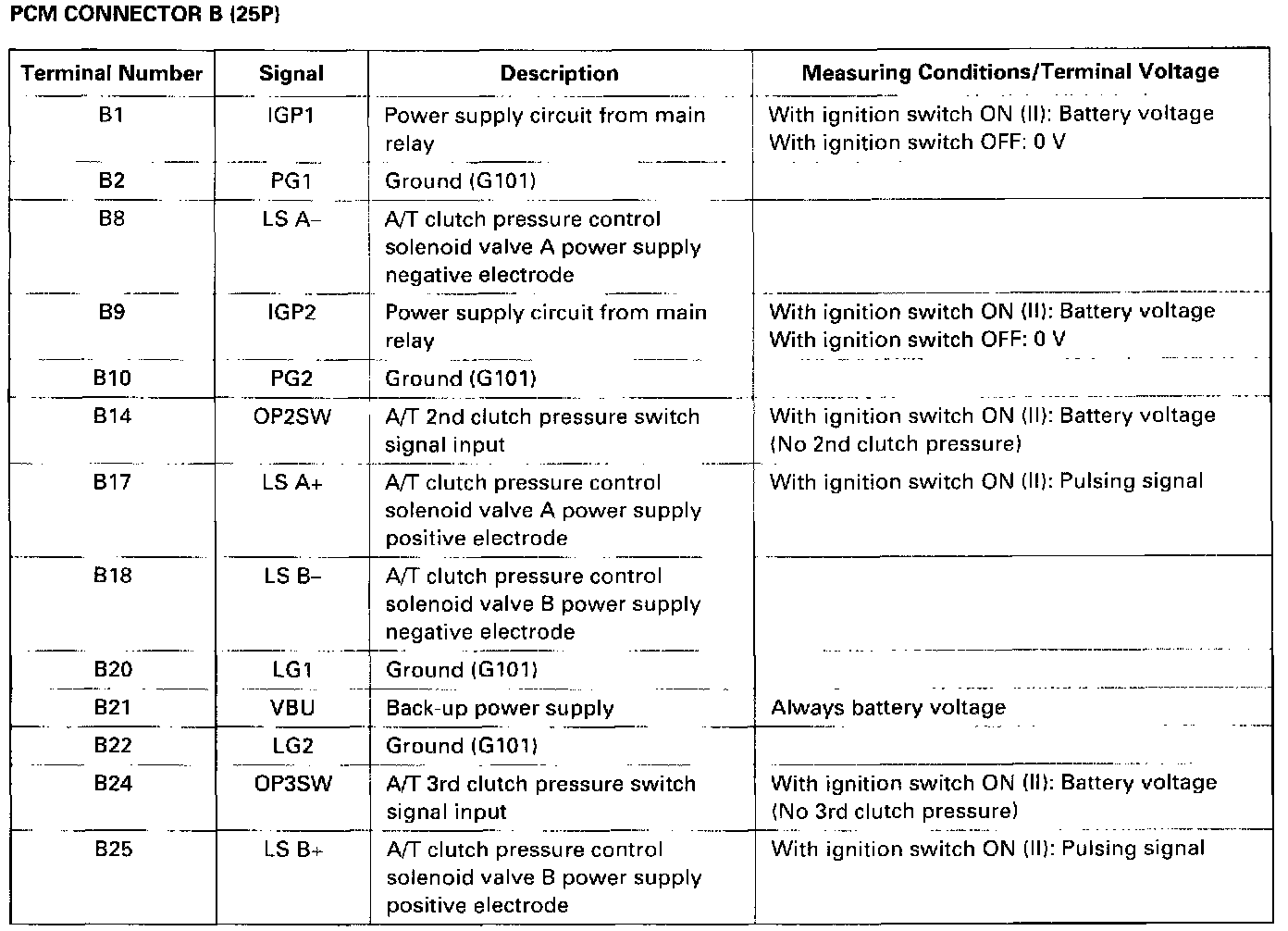

PCM CONNECTOR B (25P)

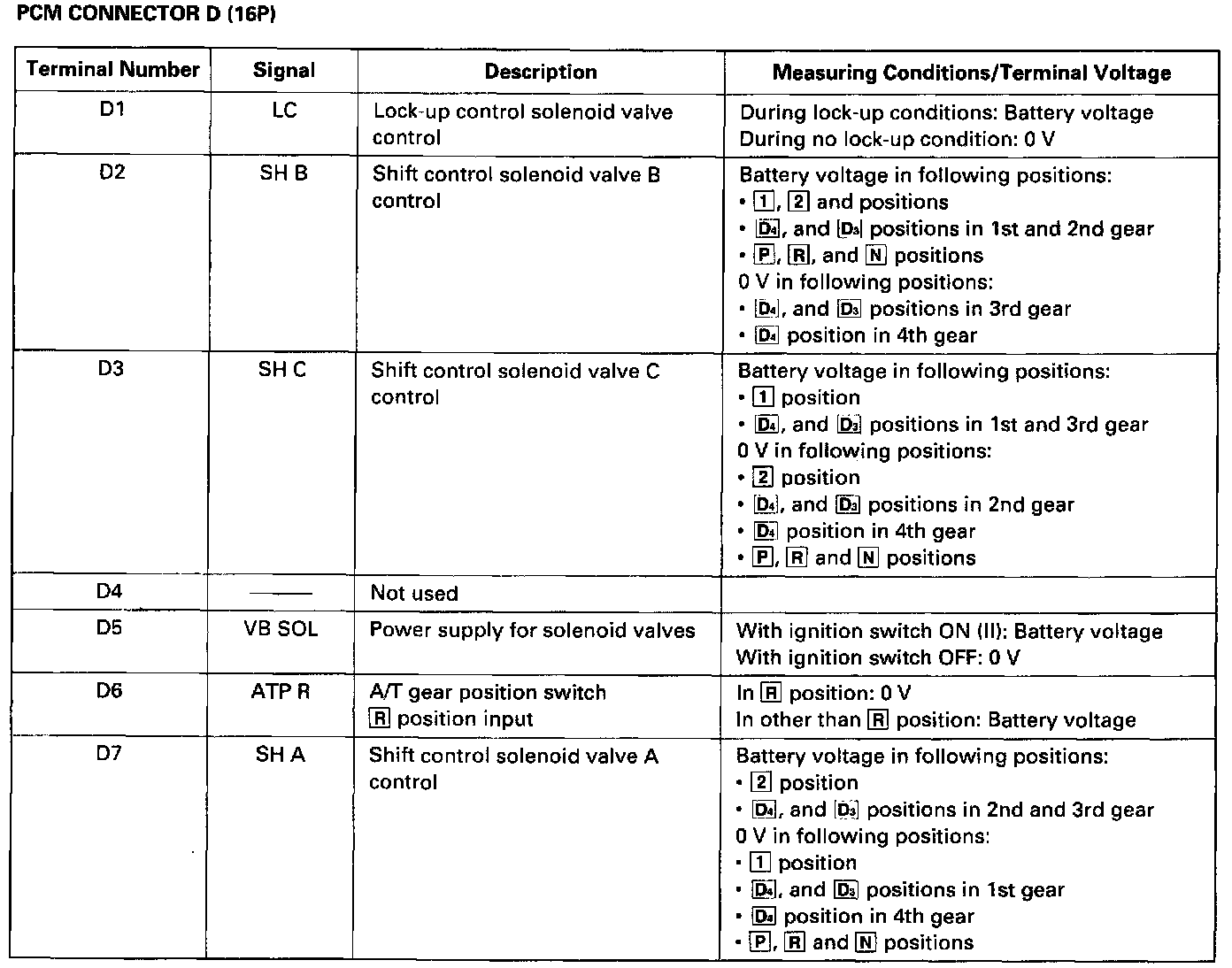

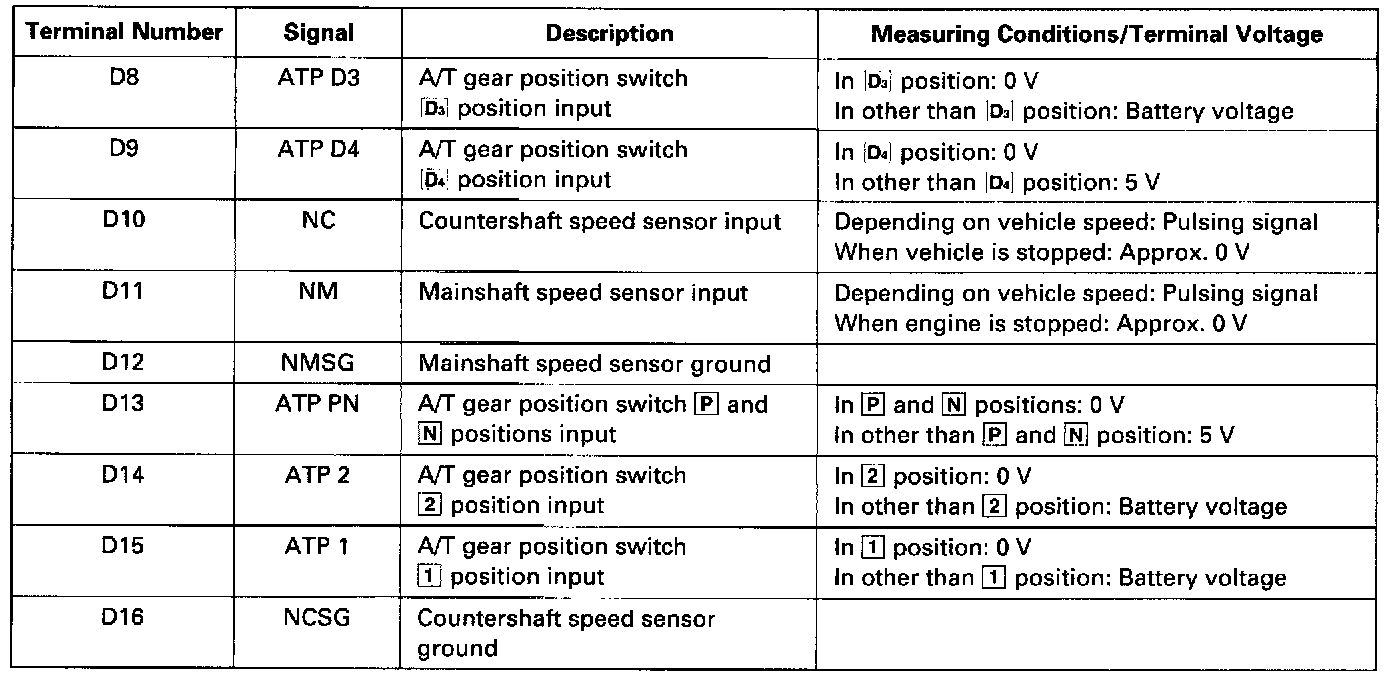

PCM CONNECTOR D (16P)
