Idle Control System
>>
DTC P0505
>>
Troubleshooting Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Troubleshooting Flowchart

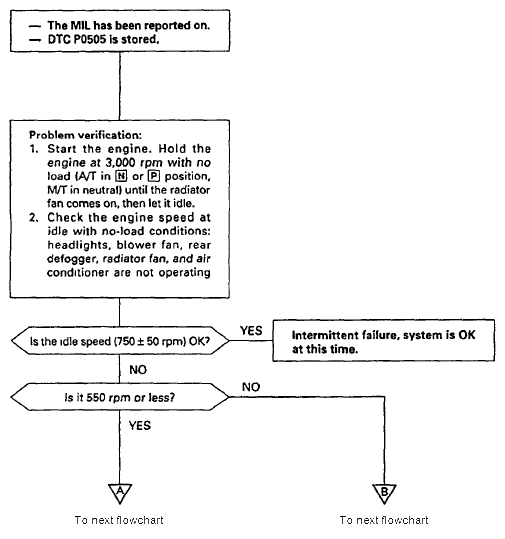

Fig 1: Idle Control System - Troubleshooting Flowchart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

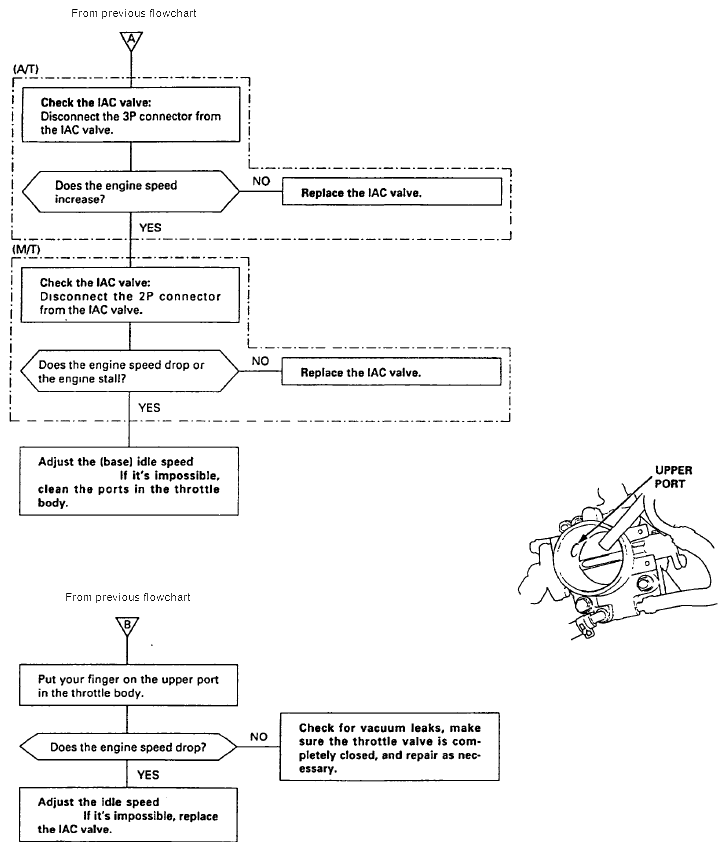

Fig 2: Idle Control System - Troubleshooting Flowchart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
