Home
>>
Acura
>>
2000
>>
1.6EL RS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Idle Control System
>>
Troubleshooting Flowcharts
>>
Brake Switch Signal
>>
1997-98 Models
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
1997-98 Models

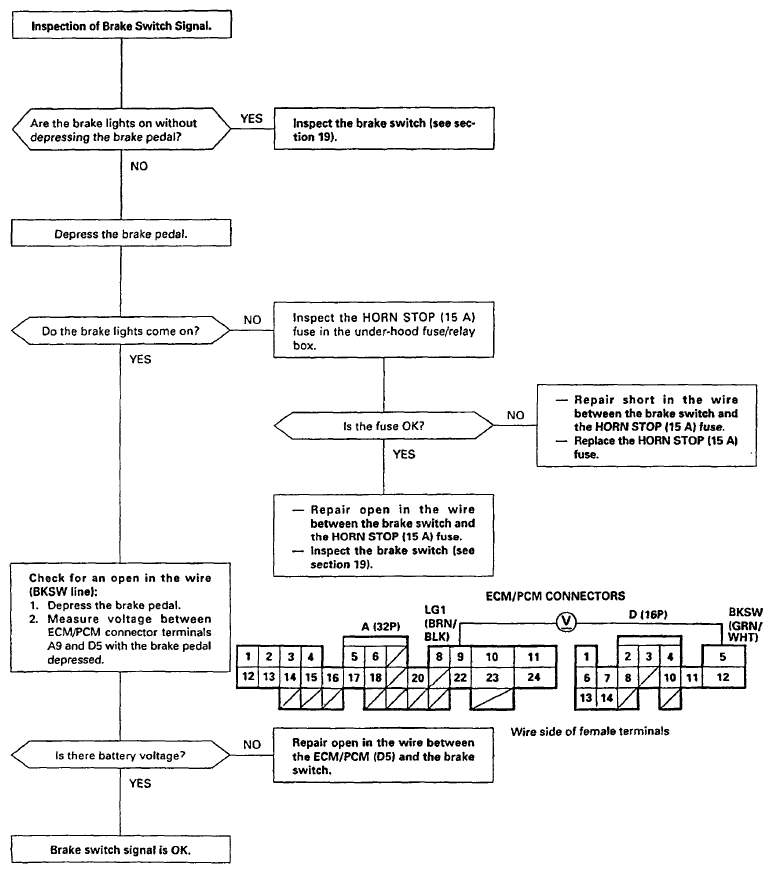

Fig 1: Brake Switch Signal Flowchart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
