Component Locations

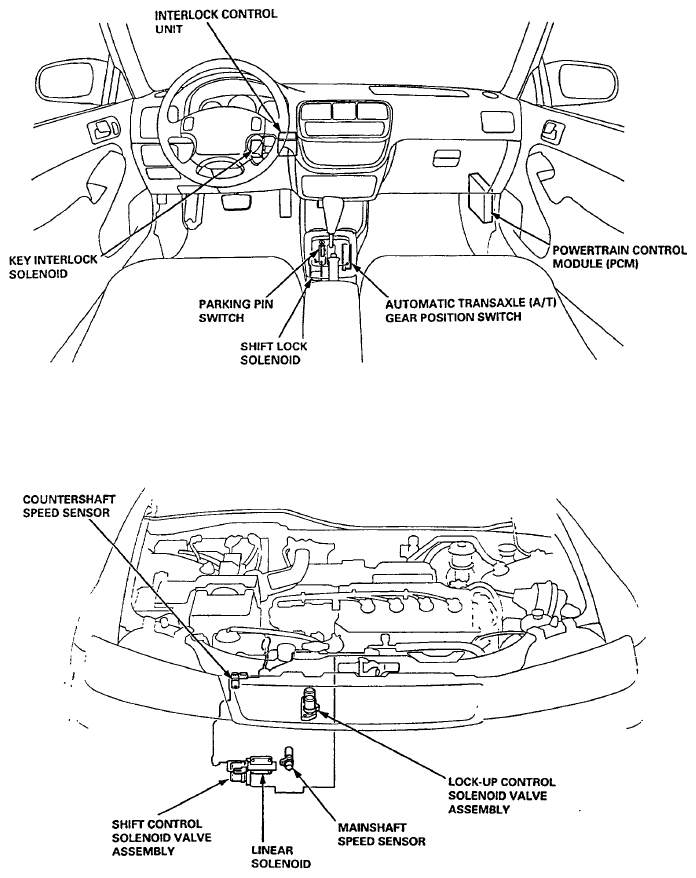

Fig 1: Identifying Automatic Transmission Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
