Windows And Glass: Index

NOTE: The numbers after the part names show the quantities of the parts used.

Windshield:

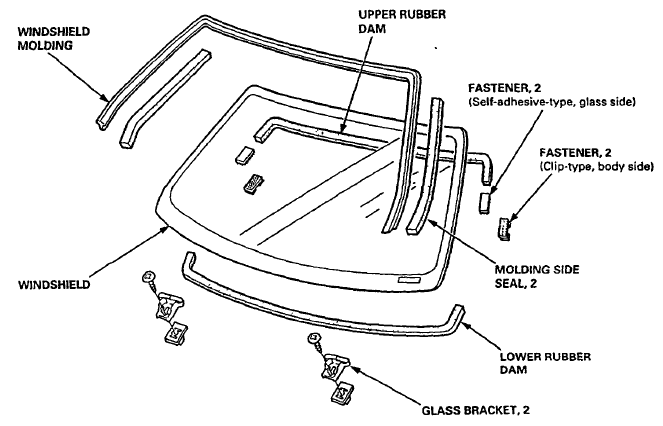

Fig 1: Exploded View Of Windshield

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear Window:

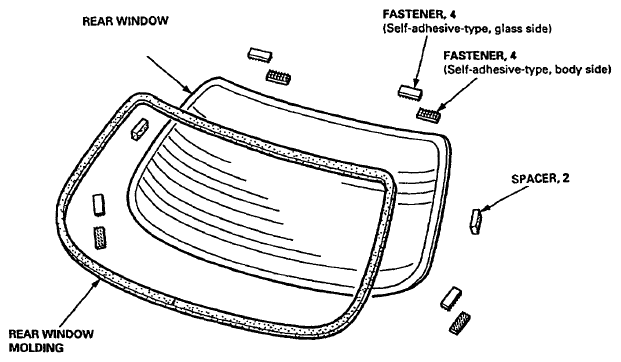

Fig 2: Exploded View Of Rear Window

Courtesy of AMERICAN HONDA MOTOR CO., INC.
