Alternator (ALT) FR Signal
>>
1999-2000 Models
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
1999-2000 Models

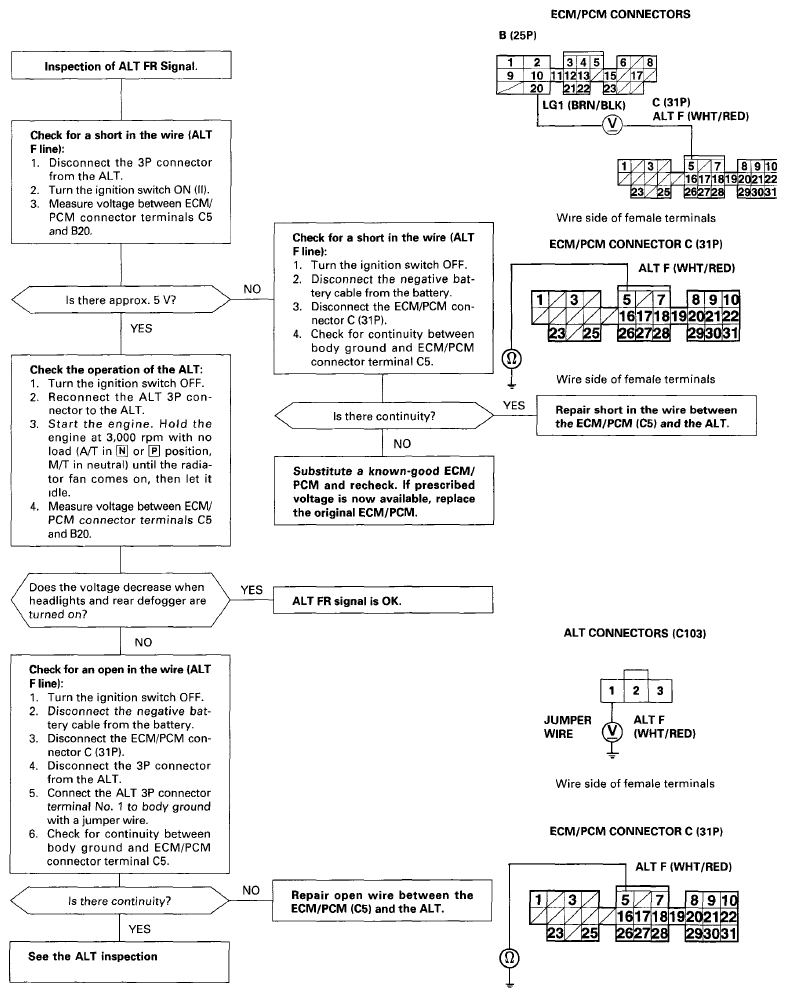

Fig 1: Alternator FR Signal Flowchart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
