Alternator (ALT) FR Signal
>>
1997-98 Models
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
1997-98 Models

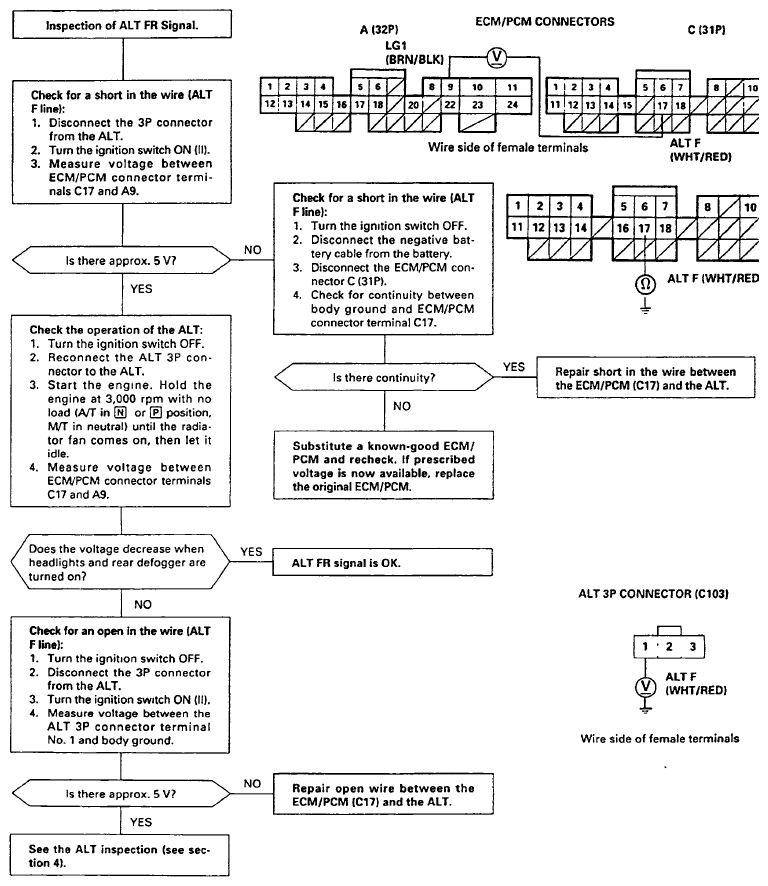

Fig 1: Alternator FR Signal Flowchart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
