Ignition Control Module (ICM) Connector End View

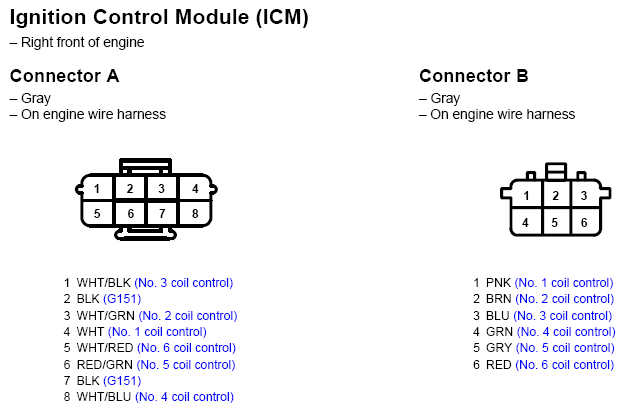

Fig 1: Ignition Control Module (ICM) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
