C412 Connector End View

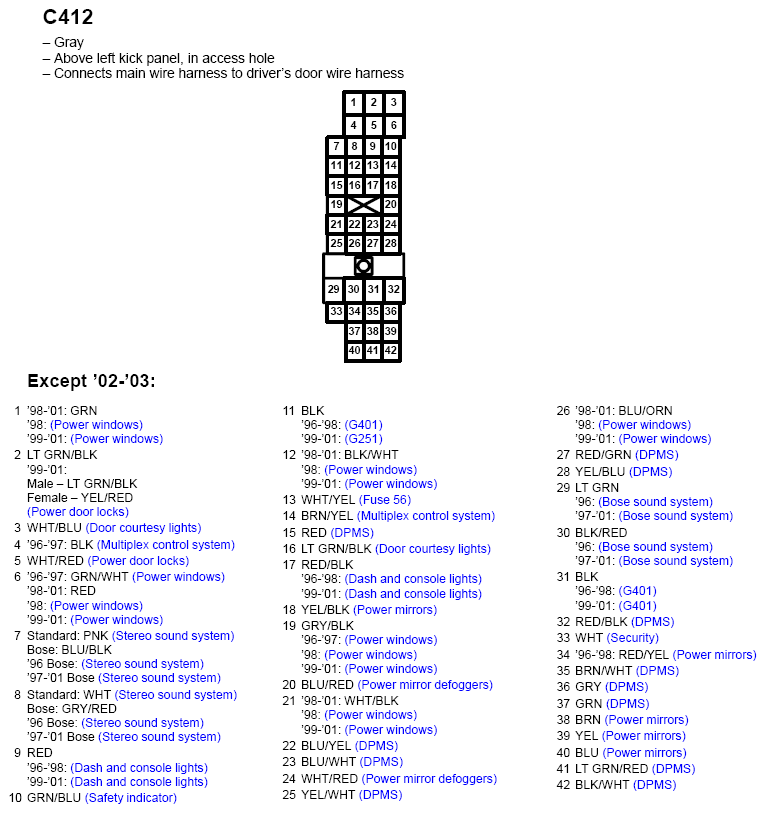

Fig 1: C412 Connector End View (1 Of 2)
G11247593Courtesy of AMERICAN HONDA MOTOR CO., INC.

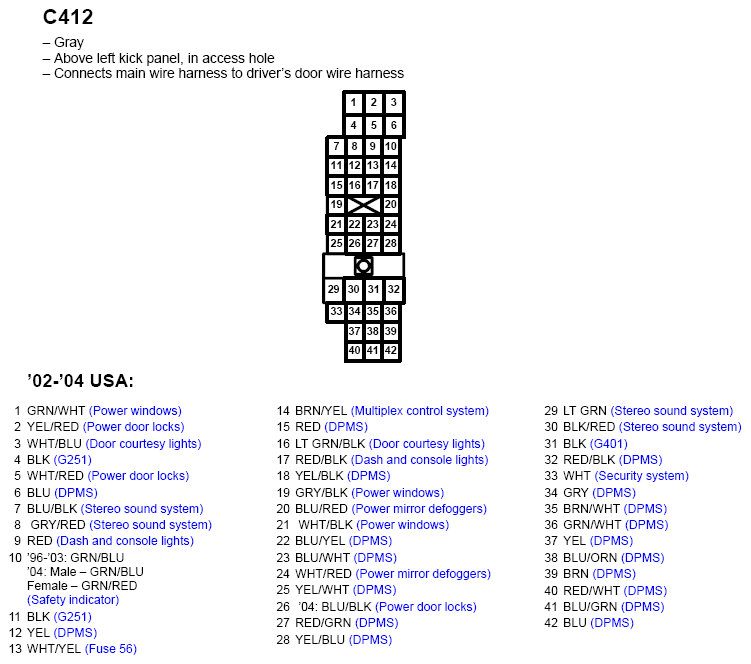

Fig 2: C412 Connector End View (2 Of 2)
G11247594Courtesy of AMERICAN HONDA MOTOR CO., INC.
