| Accumulator Body Bolt |
| 6-mm Bolt |
|
| 8-mm Bolt |
13 (18) |
| Ball Retaining Bolt |
13 (18) |
| Coolant Pipe Joint Bolt |
21 (29) |
| Countershaft Lock Nut |
96 (130) |
| Differential Assembly Mounting Bolt |
47 (64) |
| Differential Assembly Oil Filler Plug |
33 (45) |
| Differential Case Cover Bolt |
33 (45) |
| Drive Pinion Lock Nut |
|
| Joint Bolt |
29 (39) |
| Lower Plate Bolt |
29 (39) |
| Mainshaft Lock Nut |
94 (127) |
| Oil Cooler Nut |
55 (75) |
| Oil Pump Body Bolt |
| 6-mm Bolt |
|
| 8-mm Bolt |
13 (18) |
| Pressure Tap Plug |
13 (18) |
| Rear Cover Bolt |
20 (27) |
| Rear Cover Sealing Bolt |
72 (98) |
| Regulator Valve Body Bolt |
| 6-mm Bolt |
|
| 8-mm Bolt |
13 (18) |
| Reverse Idler Gear Shaft Holder Bolt |
20 (27) |
| Ring Gear Bolt |
87 (118) |
| Sealing Bolt |
72 (98) |
| Steering Gear Bolt |
44 (60) |
| Transaxle Drain Plug |
36 (49) |

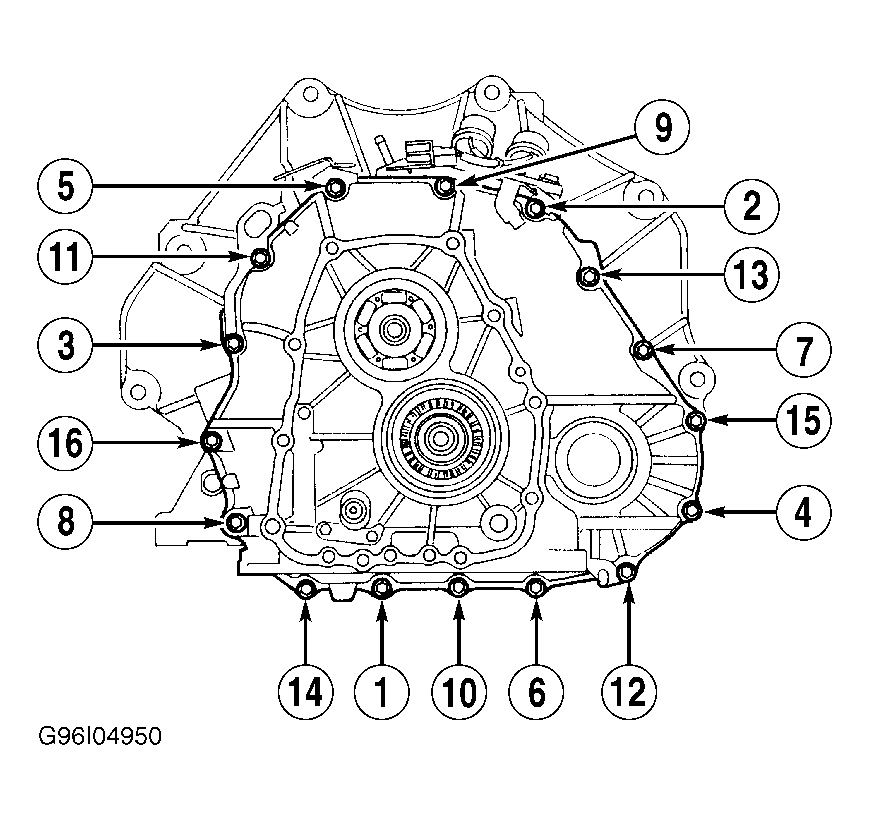

| Transaxle Housing Bolt |
25 (34) |
| INCH Lbs. (N.m) |
| Accumulator Cover Bolt |
106 (12.0) |
| Air Bleeder Bolt |
89 (10.0) |
| Breather Plate Bolt |
106 (12.0) |
| Cable Cover Bolt |
106 (12.0) |
| Cable Holder Bolt |
106 (12.0) |
| Connector Stopper Bolt |
106 (12.0) |
| Control Lever Bolt |
124 (14.0) |
| Countershaft Speed Sensor Bolt |
106 (12.0) |
| Detent Lever Bolt |
106 (12.0) |
| Detent Spring Plate Bolt |
106 (12.0) |
| Flange Nut |
53 (6.0) |
| Fluid Strainer Bolt |
106 (12.0) |
| Lock-Up Control Solenoid Valve Bolt |
106 (12.0) |
| Lower Valve Body Assembly Bolt |
106 (12.0) |
| Lower Valve Body Assembly-To-Transaxle Housing Bolt |
106 (12.0) |
| Mainshaft Speed Sensor Bolt |
106 (12.0) |
| Oil Guide Pipe Bolt |
106 (12.0) |
| Oil Pan Bolt |
106 (12.0) |
| Oil Pass Body Bolt |
106 (12.0) |
| Regulator Valve Body Lock Bolt |
106 (12.0) |
| Secondary Valve Body Bolt |
106 (12.0) |
| Shift Control Solenoid Valve Bolt |
106 (12.0) |
| Speed Sensor Assembly Bolt |
106 (12.0) |
| Throttle Valve Body Bolt |
106 (12.0) |
| Wiring Harness Clamp Bolt |
106 (12.0) |
| 1st & 2nd Accumulator Cover Bolt |
106 (12.0) |
