MAINSHAFT Speed Sensor

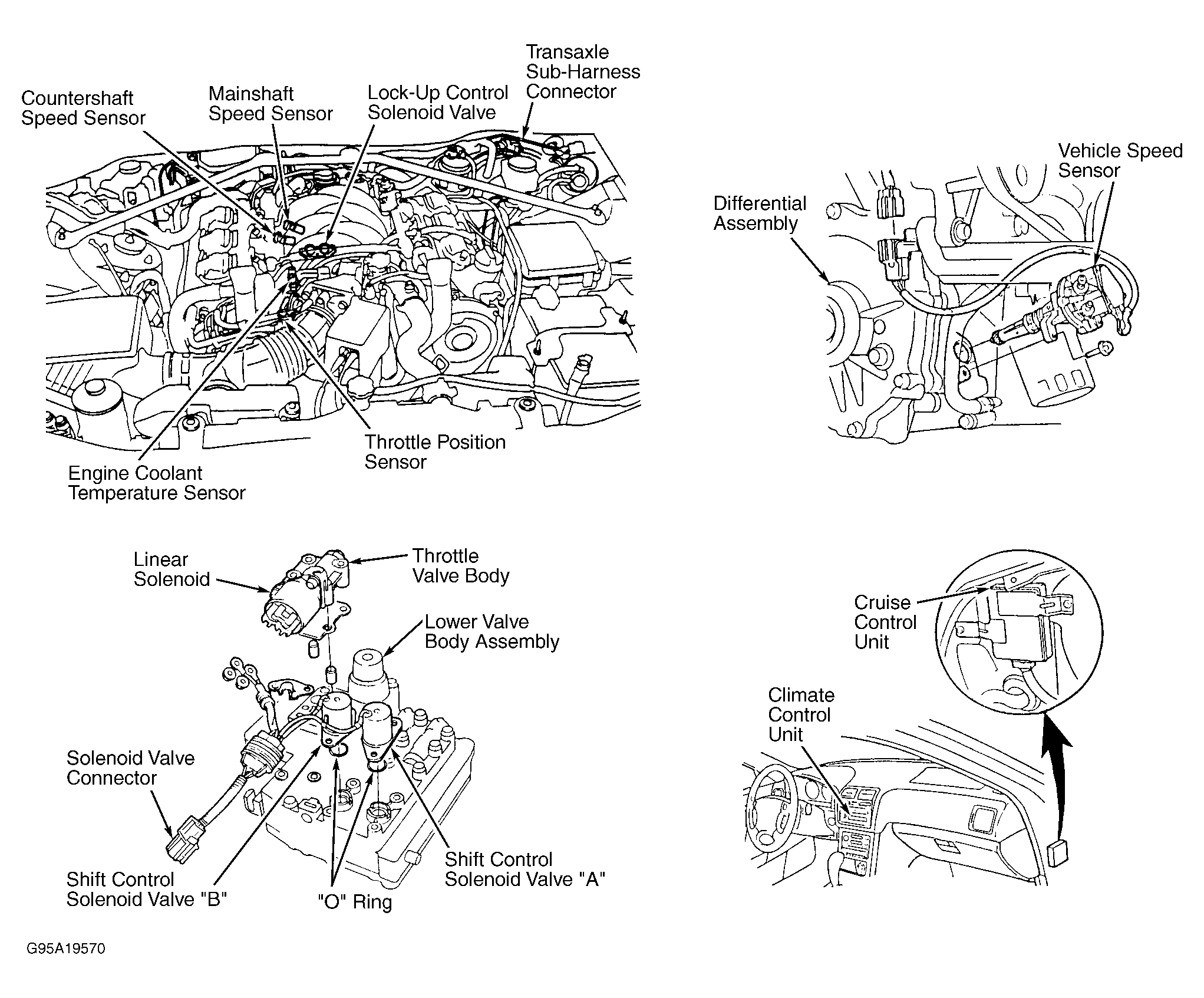

  1. Mainshaft speed sensor is located on transaxle. See Figure . Disconnect harness connector for mainshaft shaft speed sensor from transaxle sub-harness.
  2. Measure resistance between terminals of mainshaft speed sensor harness connector. Replace mainshaft speed sensor if resistance is not 400-600 ohms at 70°F (20°C).
