MAINSHAFT Speed Sensor: Notes
NOTE:

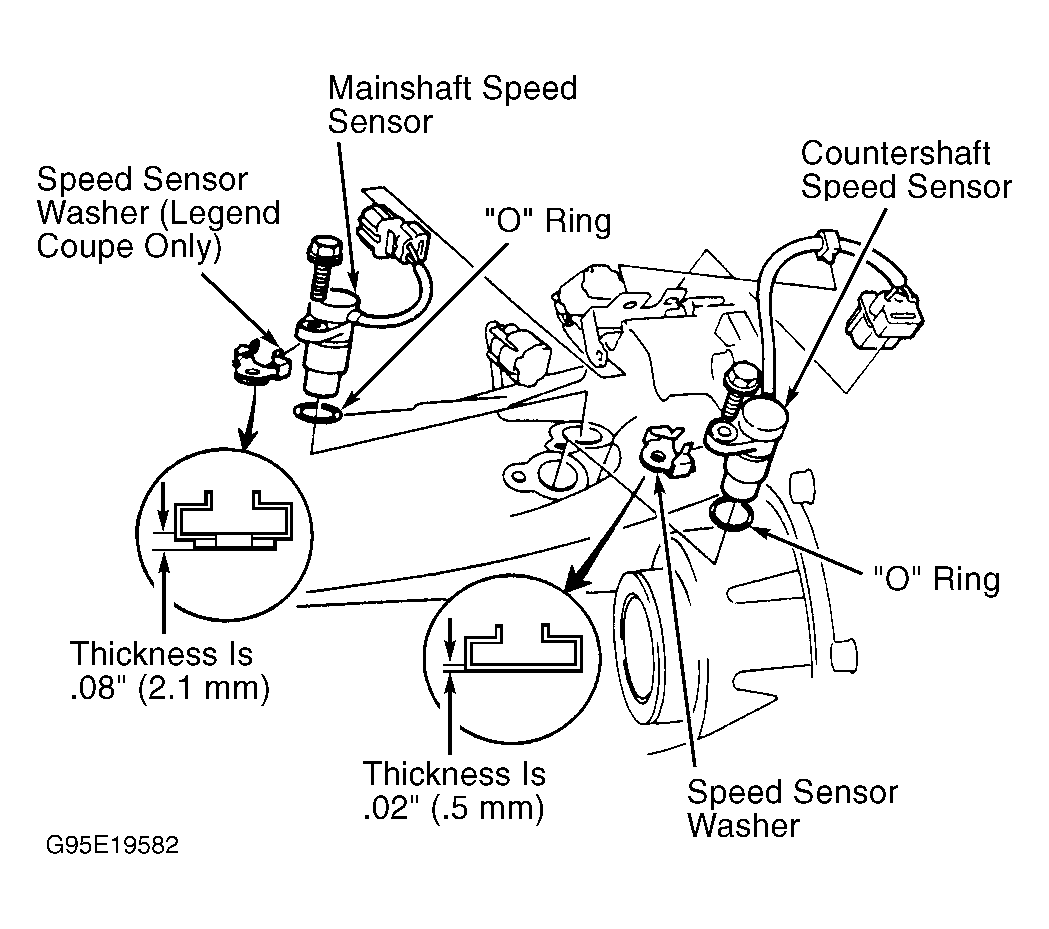

Speed sensor washer is used on countershaft and mainshaft speed sensors. See
Figure
.
