Cruise Control Master Switch Test/Replacement

MAIN SWITCH / TEST AND REPLACEMENT

NOTE: Be careful not to damage the switch and the instrument panel.

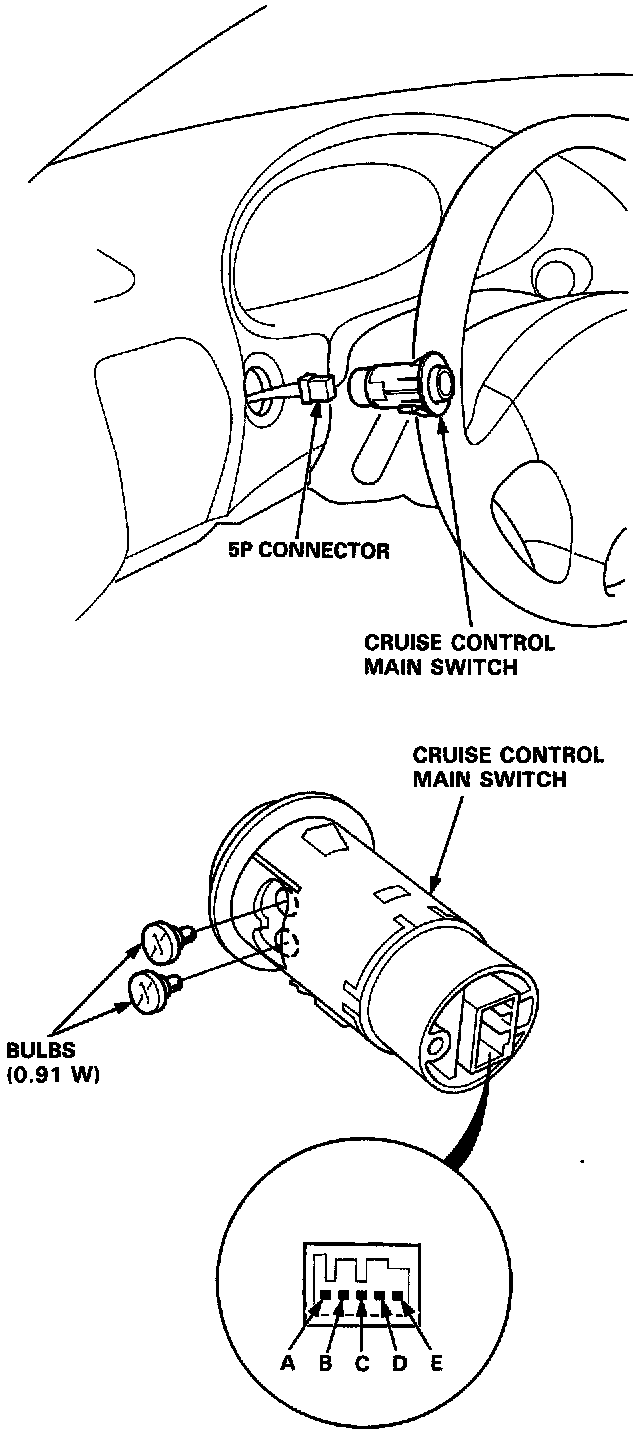

1 Remove the instrument panel from the dashboard.







2. Remove the switch from the dashboard, then disconnect the 5-P connector.







3. Check for continuity between the terminals in each switch position according to the table.







If there is no continuity in any position, replace the switch.
