Timer/Control Unit, Accessory Control

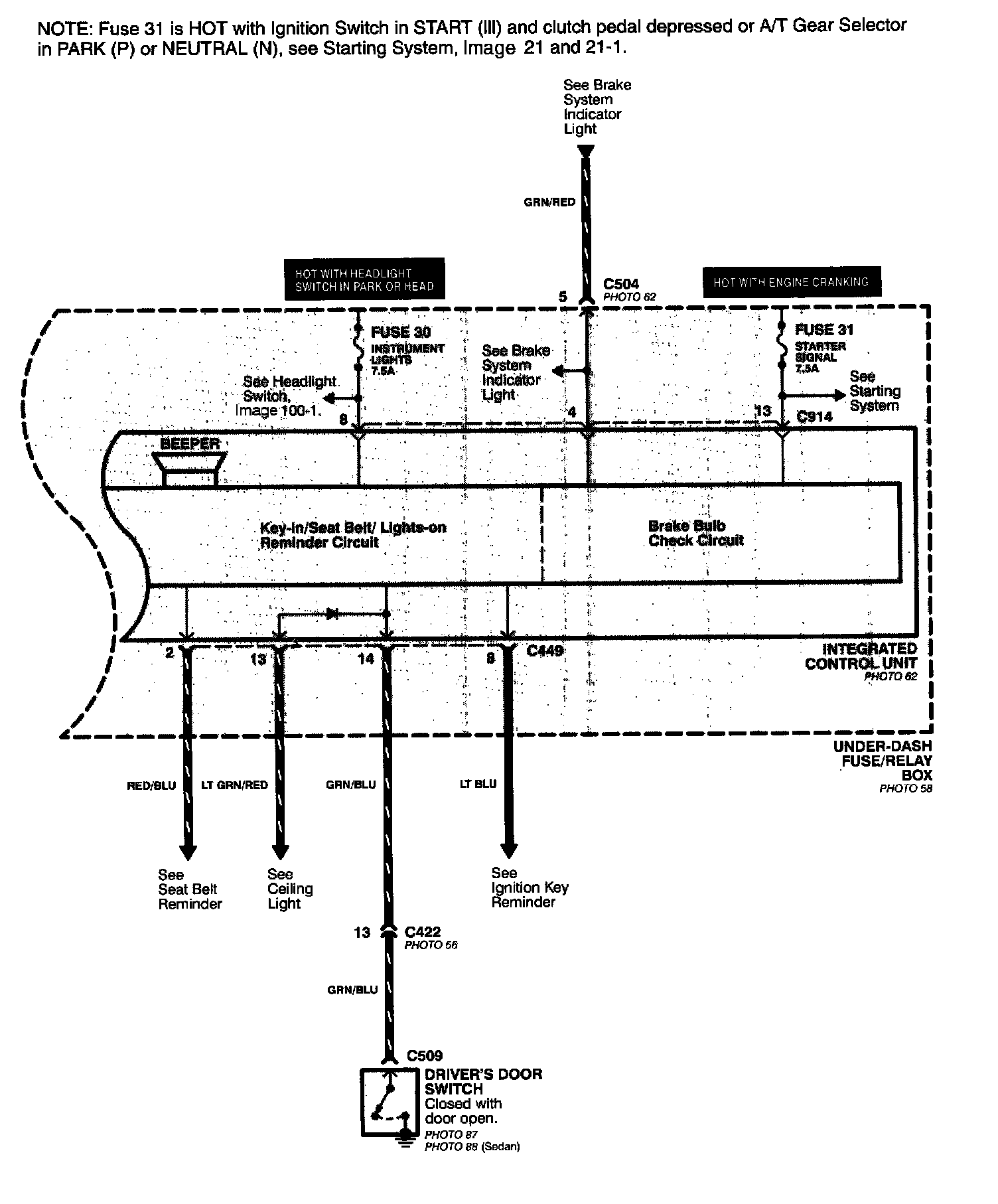

Integrated Control Unit Image 70:

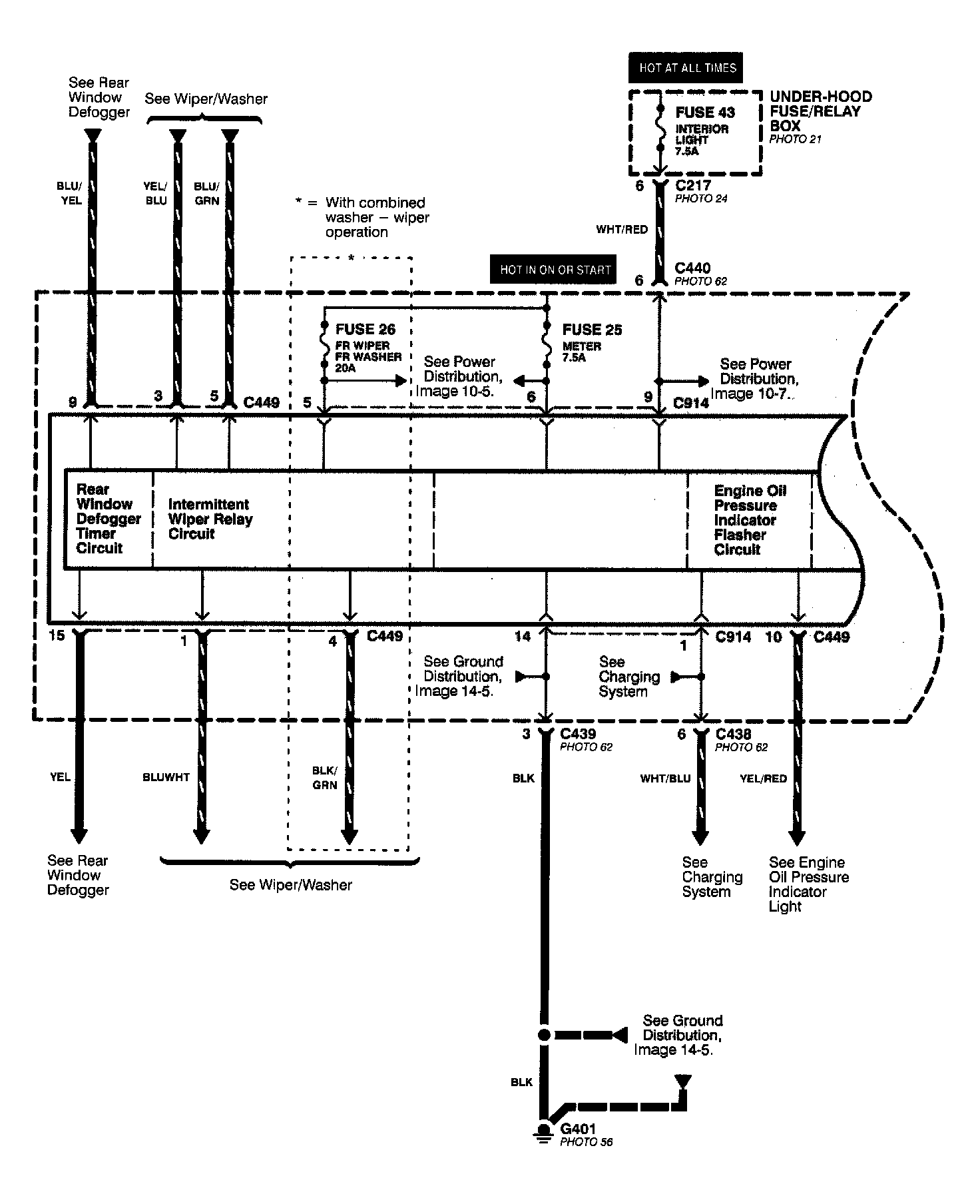

Integrated Control Unit Image 70-1:
