Control Module HVAC: Testing and Inspection

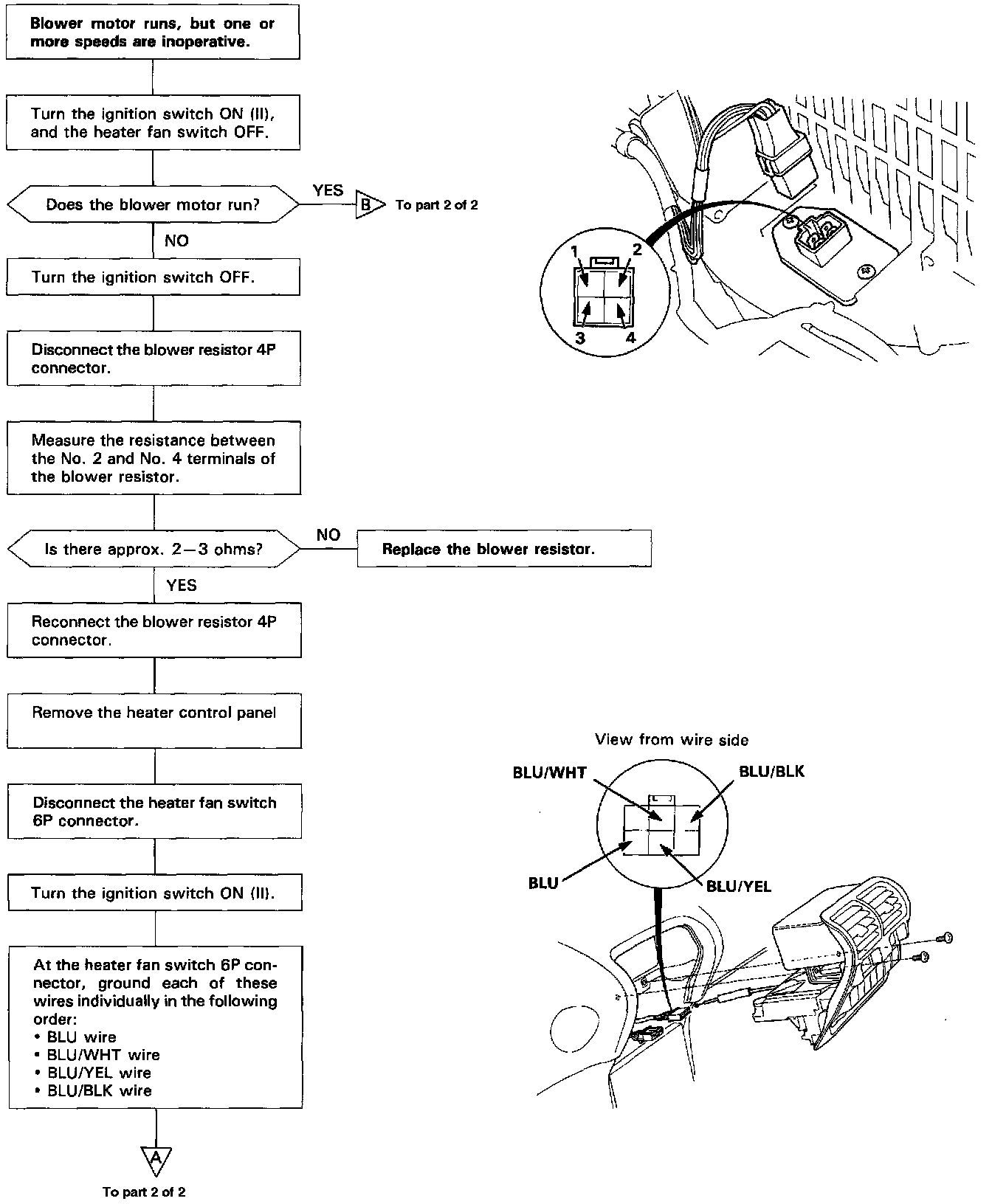

Blower Motor Speed (1 Of 2):

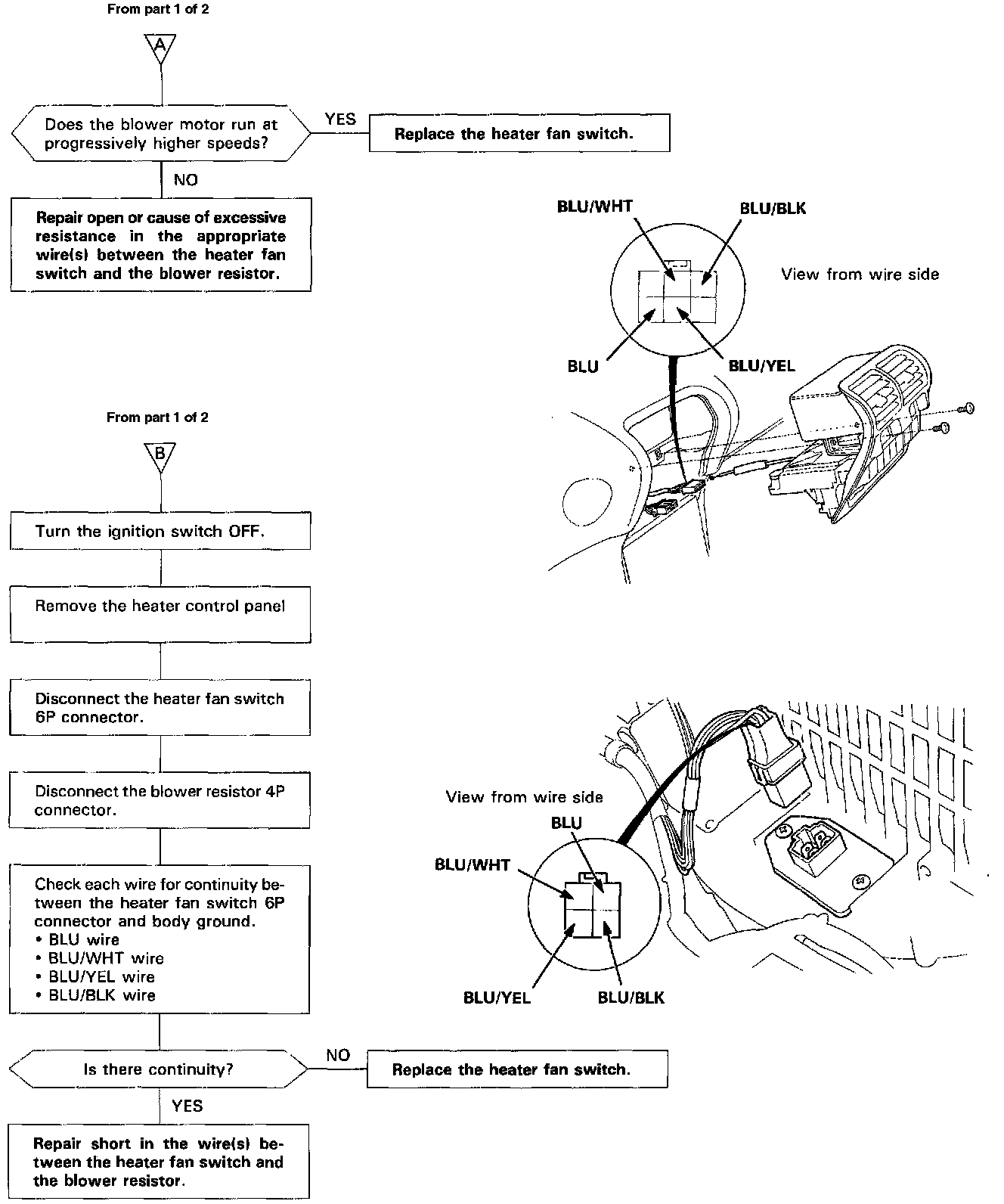

Blower Motor Speed (2 Of 2):
