Ground Distribution Schematics

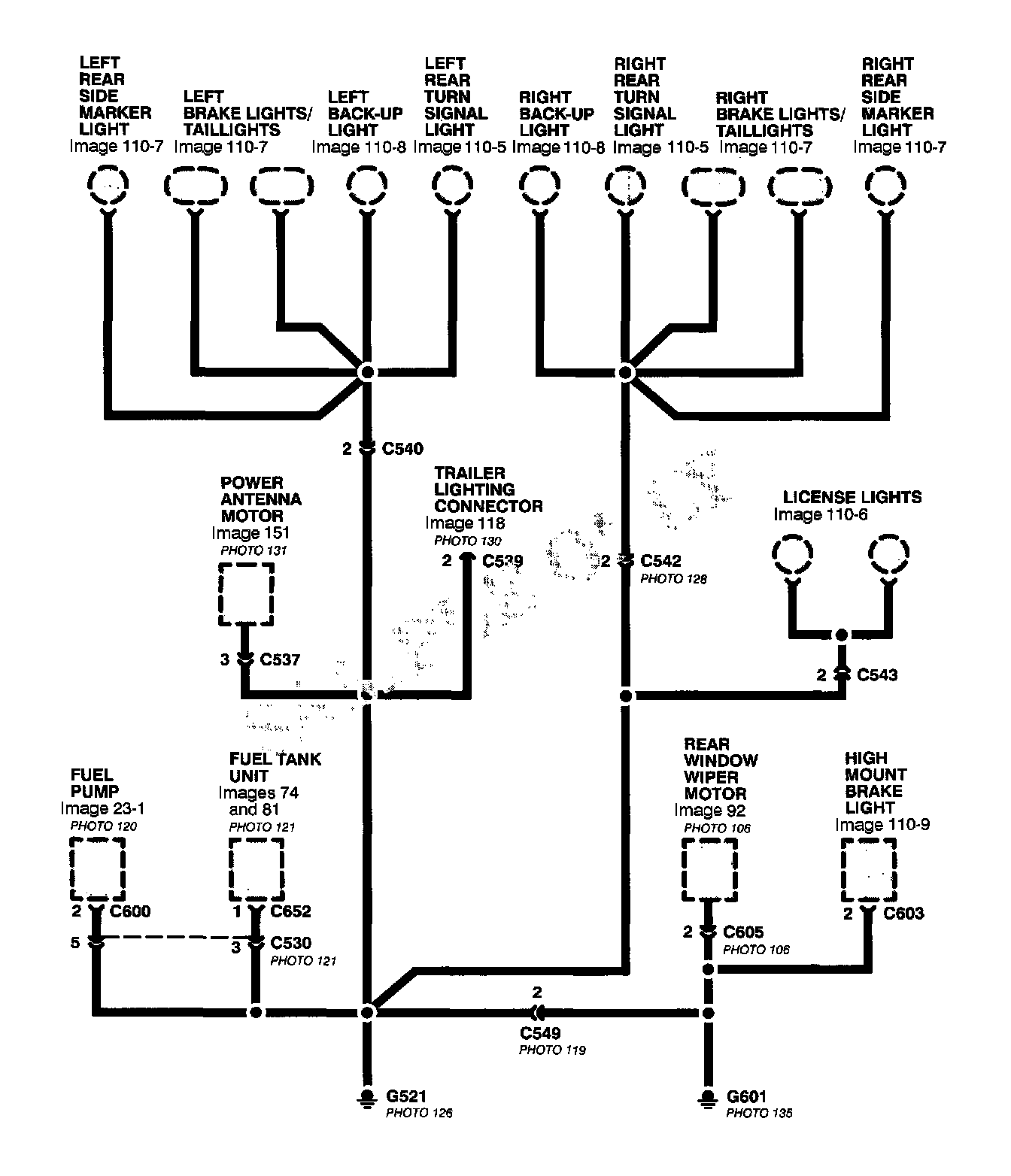

This sample Ground Distribution schematic shows all of the components that share two ground points.
