Vehicle Speed Sensor: Testing and Inspection

Troubleshooting - Vehicle Speed Sensor (VSS)

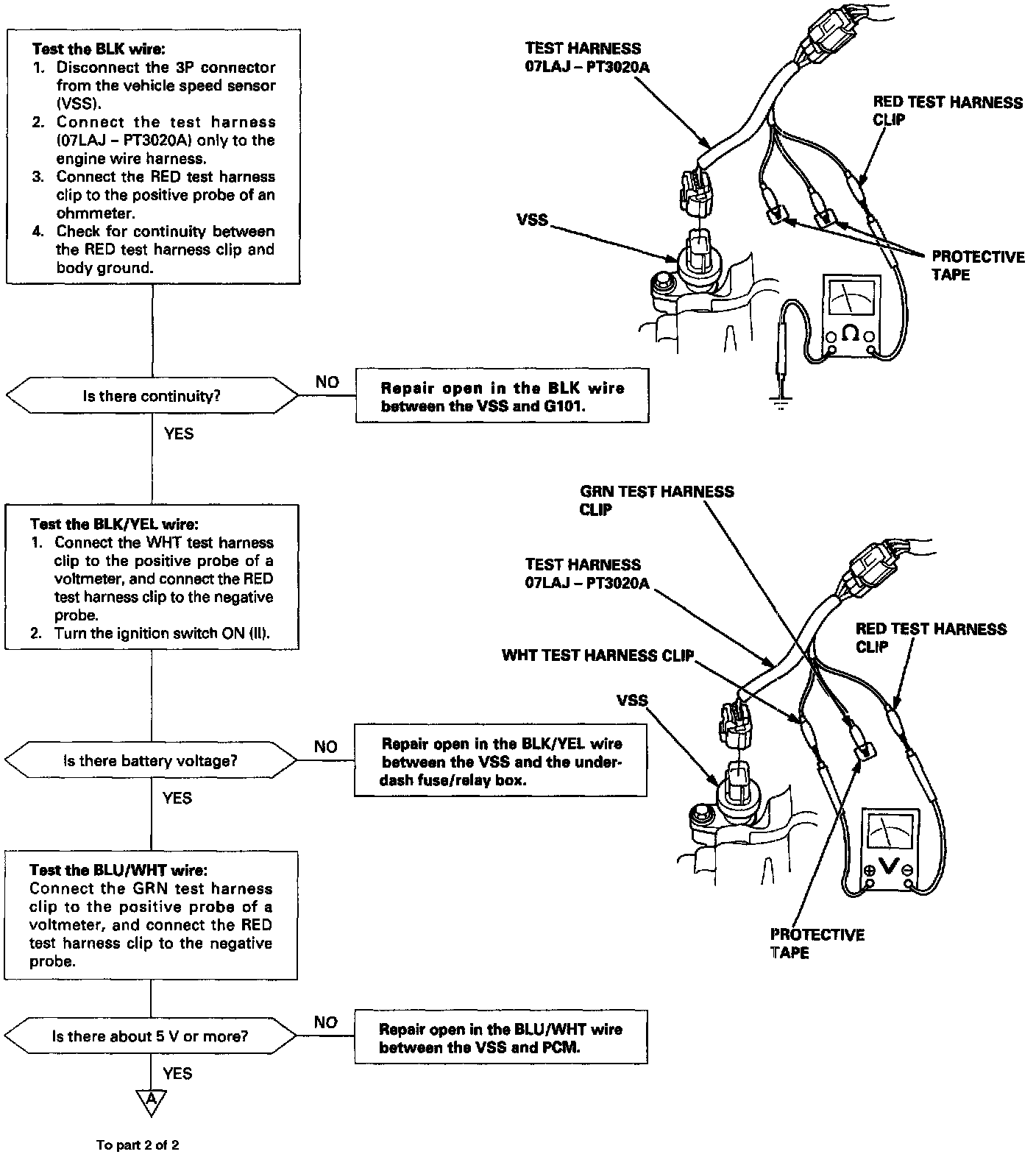

Troubleshooting - Vehicle Speed Sensor (VSS) (1 Of 2):

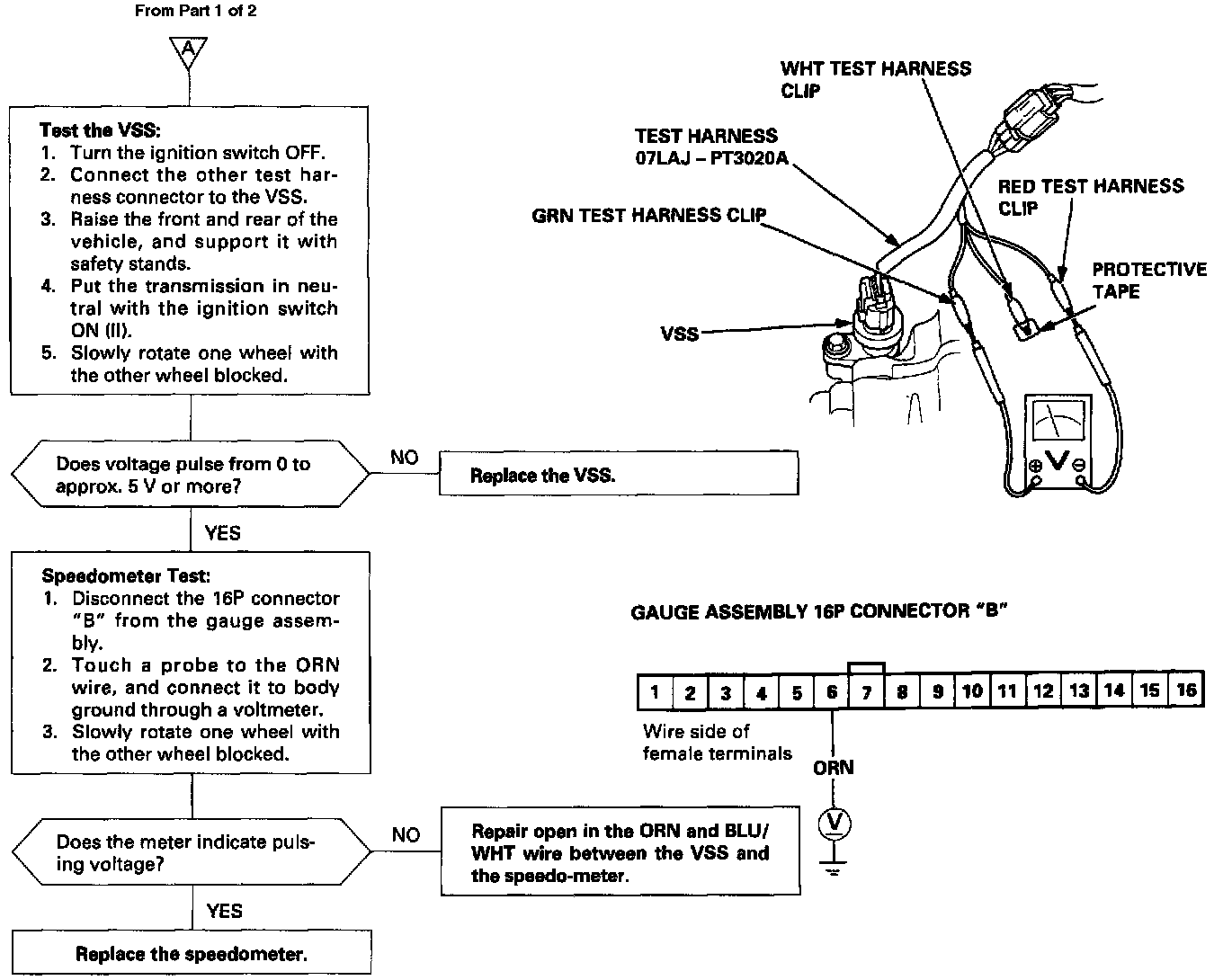

Troubleshooting - Vehicle Speed Sensor (VSS) (2 Of 2):






Before testing, inspect the No. 15 (7.5 A) fuse in the under-dash fuse/relay box.
