Torque Specifications

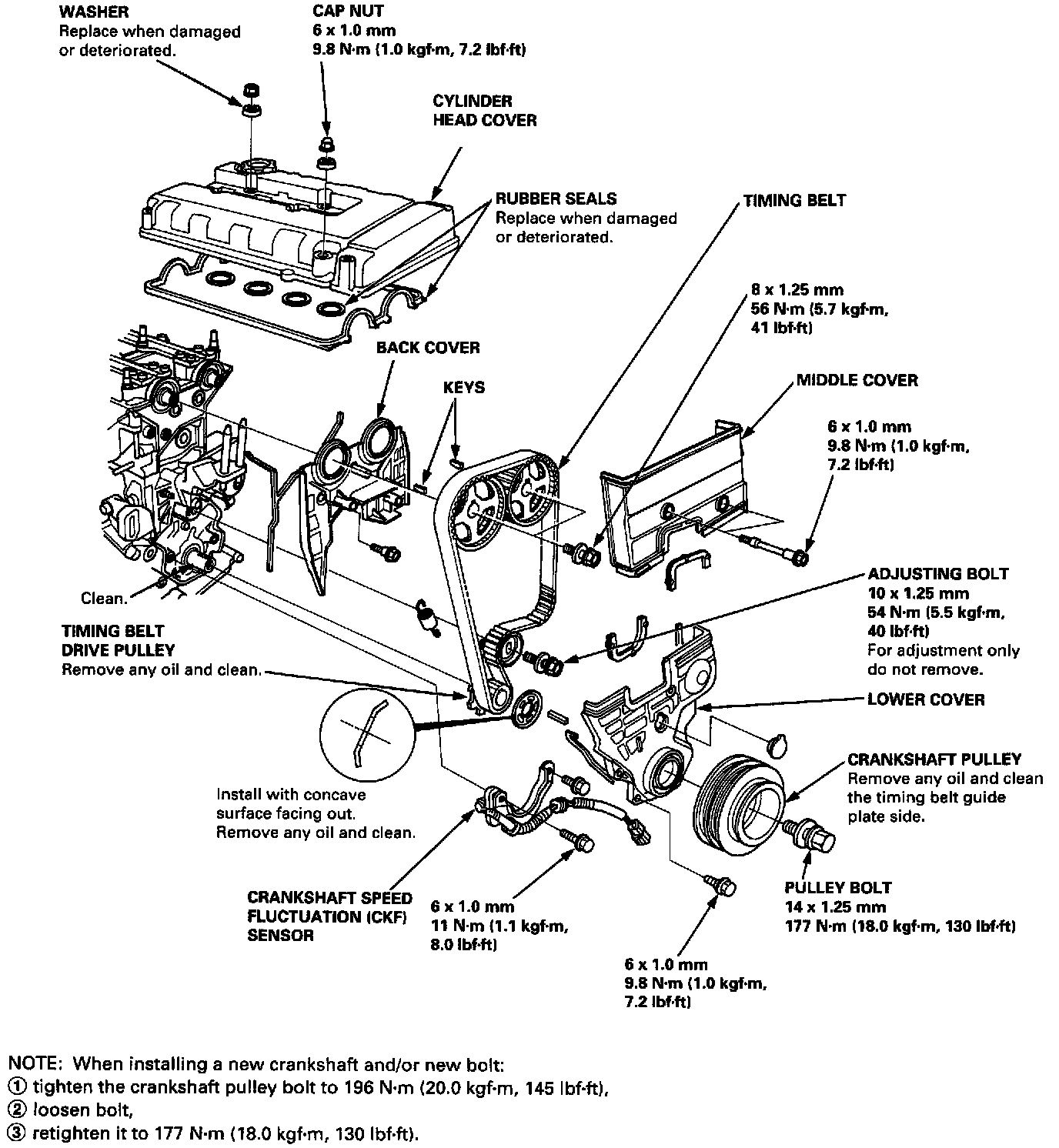

Timing Components:

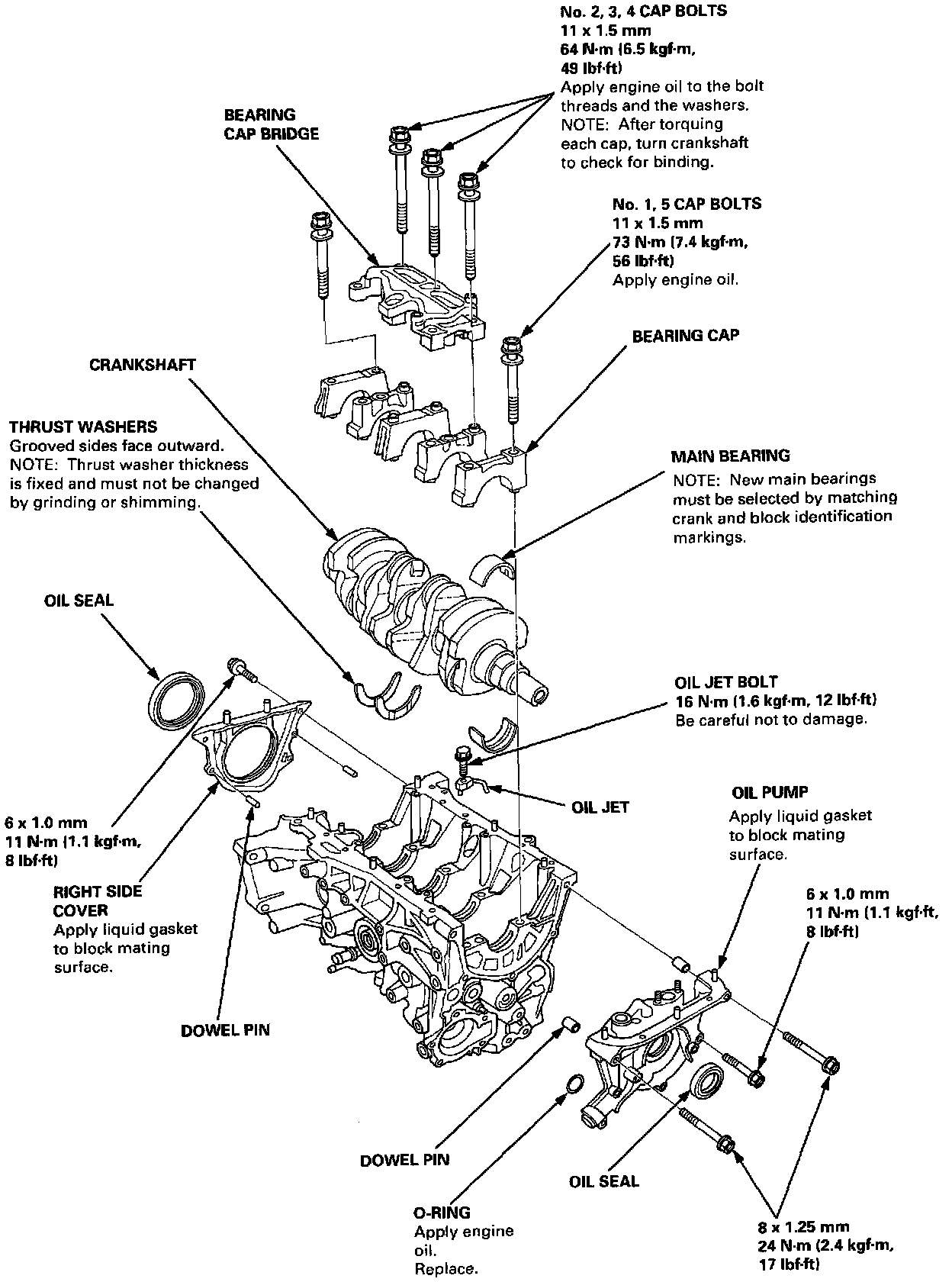

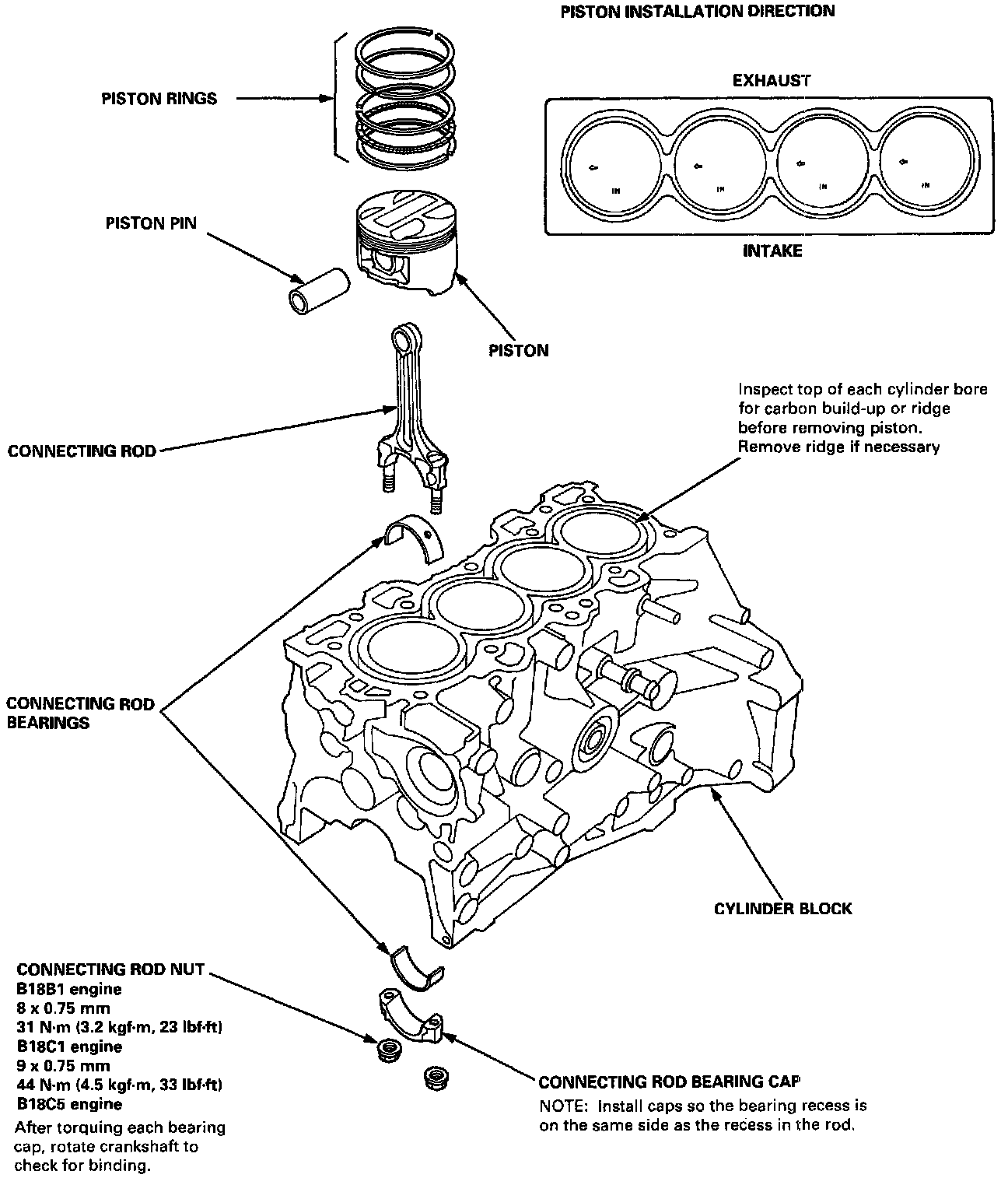

Lower Engine:
















Torque Sequence:

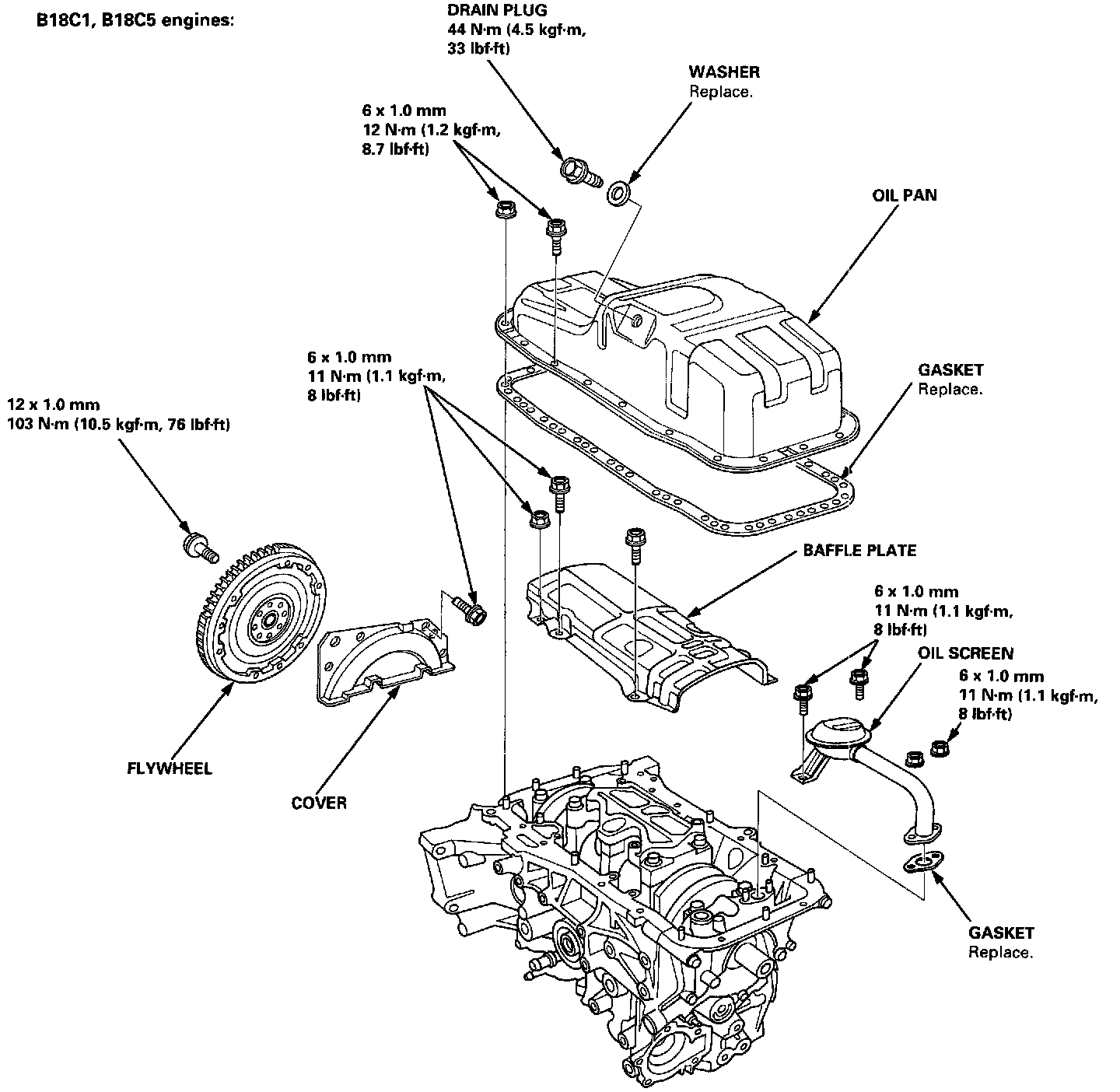

Flywheel (M/T) Torque:






Drive Plate (A/T) Torque/Sequence:
