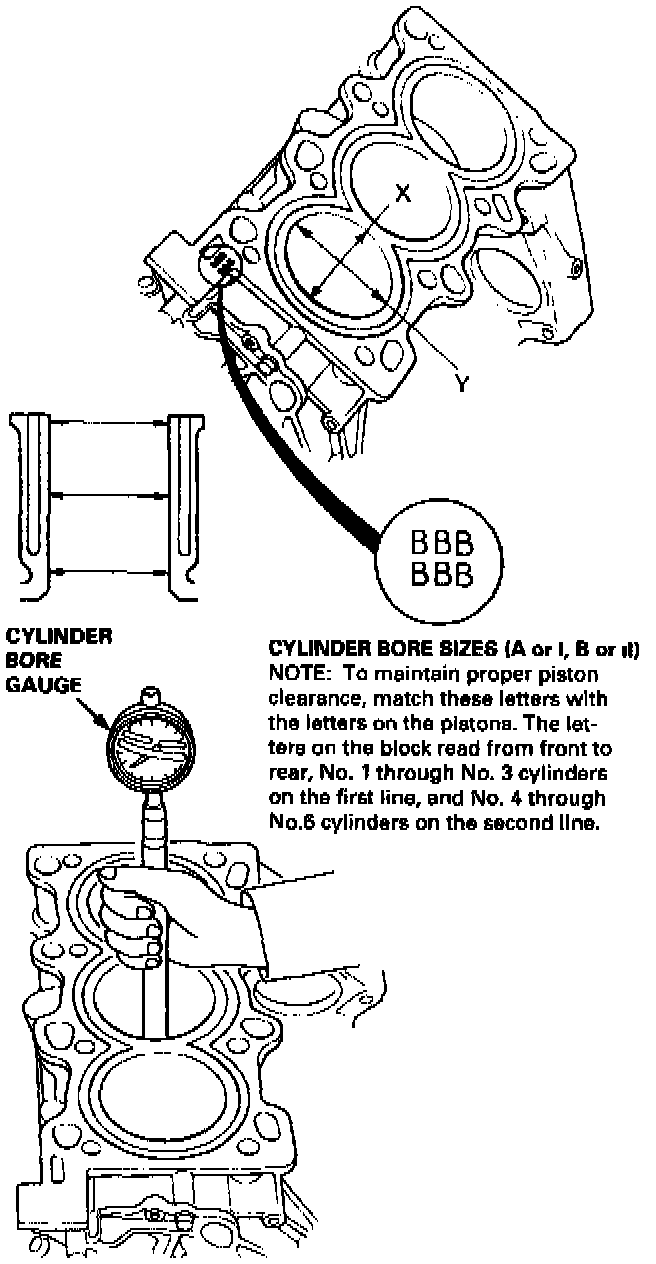

Cylinder Bore
Oversize
0.25: 90.250 - 90.270 mm (3.5531 - 3.5539 inch)
0.50: 90.500 - 90.520 mm (3.5630 - 3.5638 inch)
Bore Taper
Limit: (Difference between first and third measurement) 0.05 mm (0.002 inch)
Reboring Limit: 0.5 mm (0.02 inch)
Oversize
0.25: 90.250 - 90.270 mm (3.5531 - 3.5539 inch)
0.50: 90.500 - 90.520 mm (3.5630 - 3.5638 inch)
Bore Taper
Limit: (Difference between first and third measurement) 0.05 mm (0.002 inch)
Reboring Limit: 0.5 mm (0.02 inch)
