Charging System: Testing and Inspection

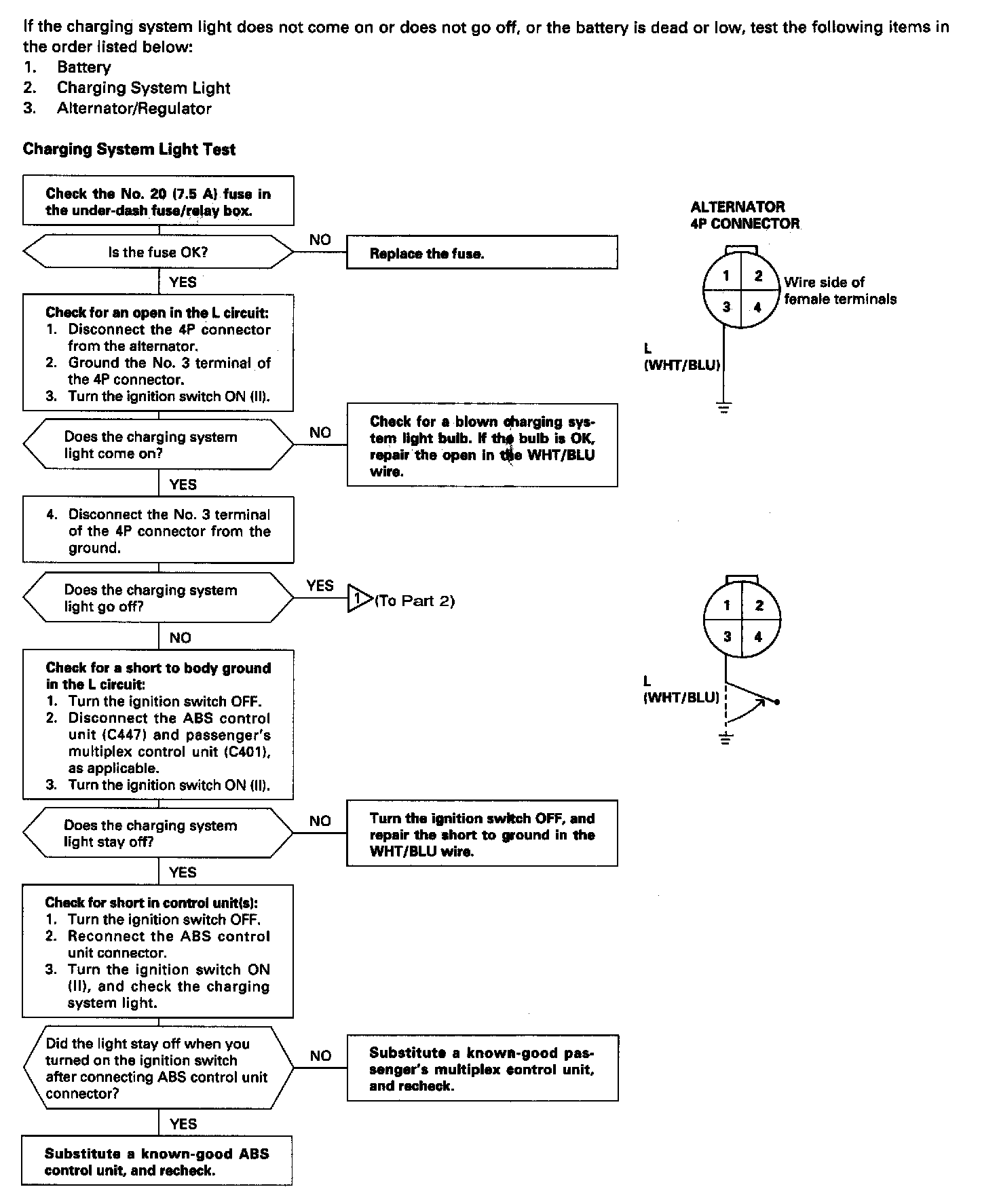

Charging System Light Test (Part 1):

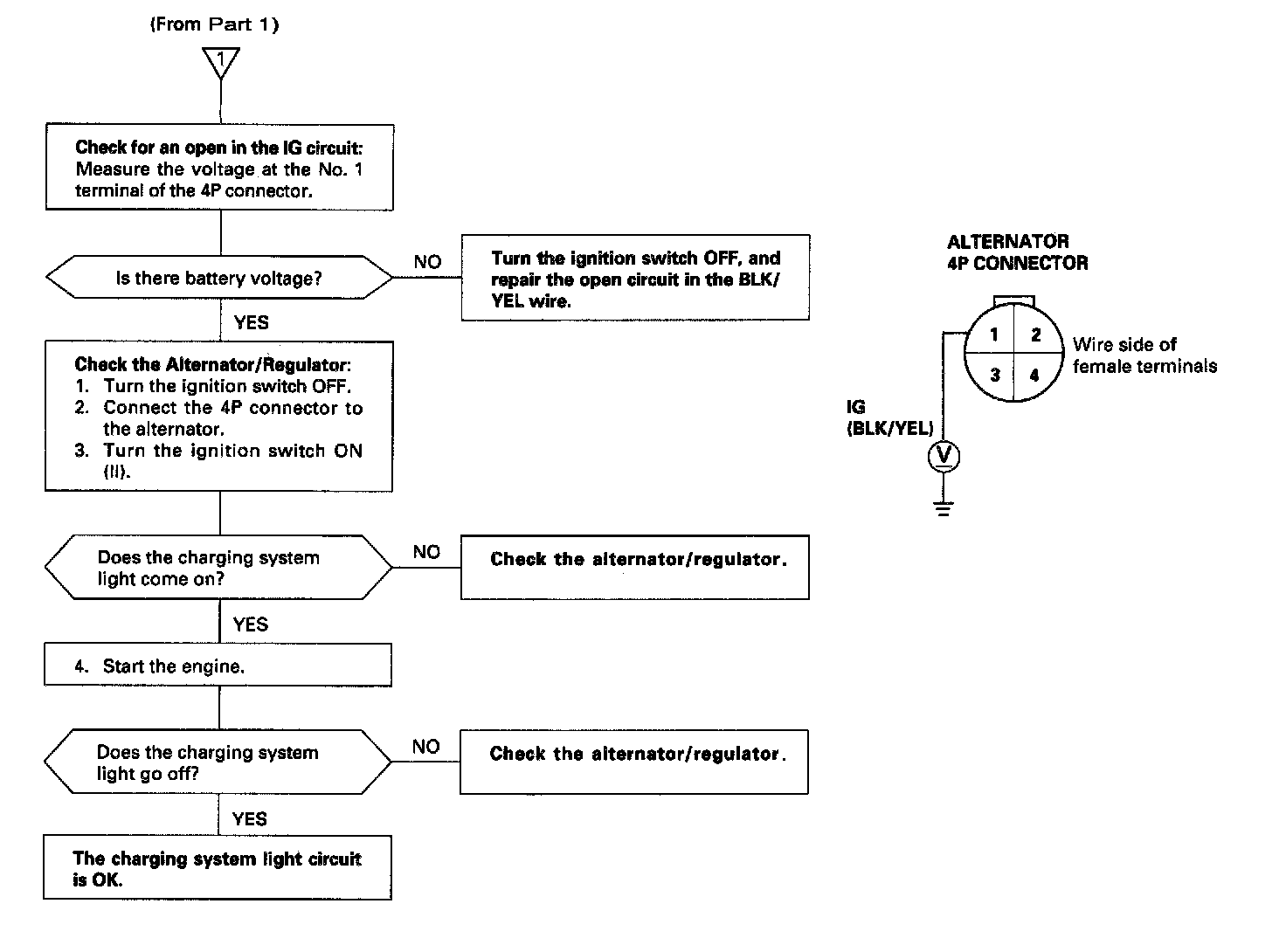

Charging System Light Test (Part 2):

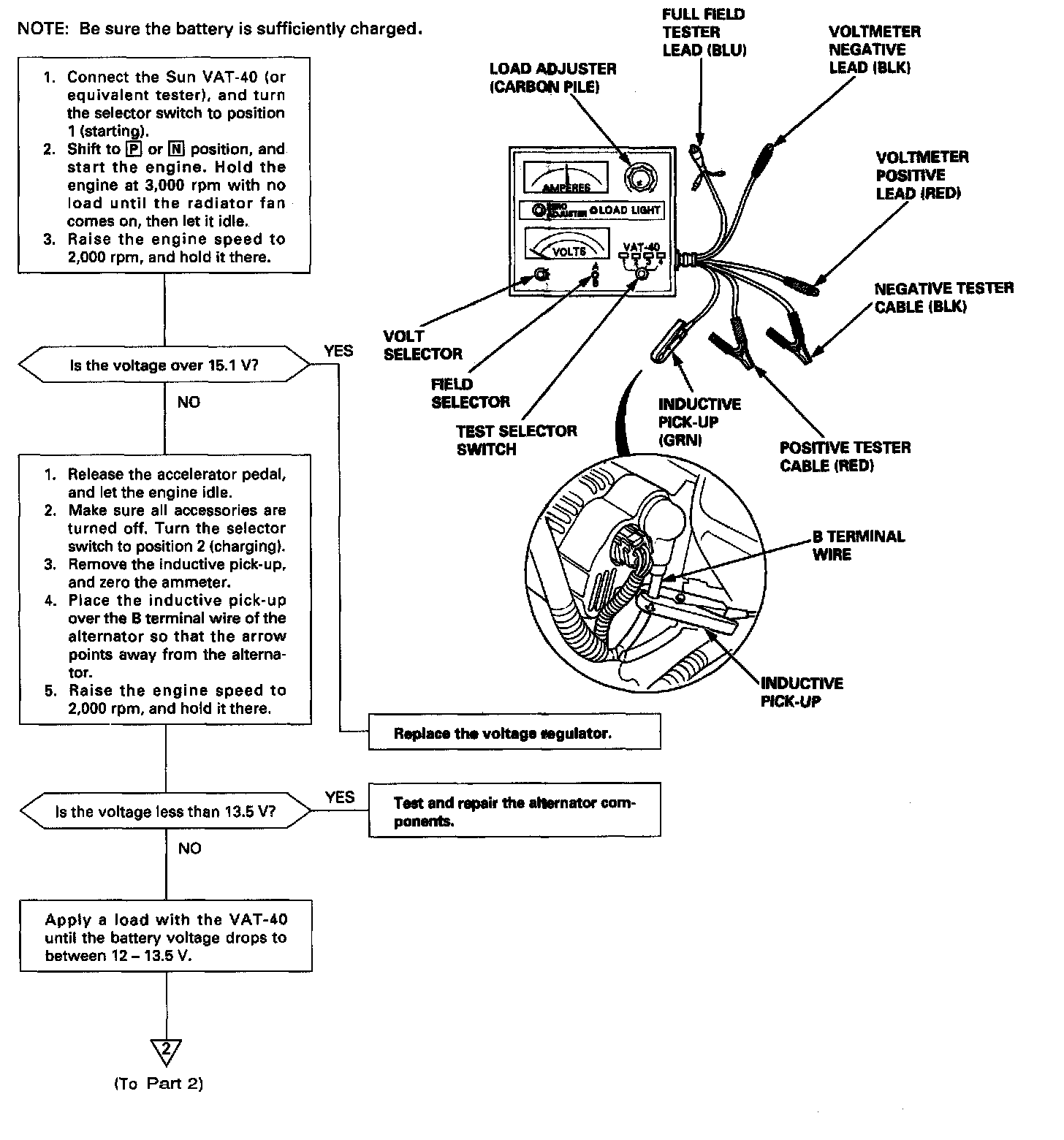

Alternator / Regulator Test (Part 1):

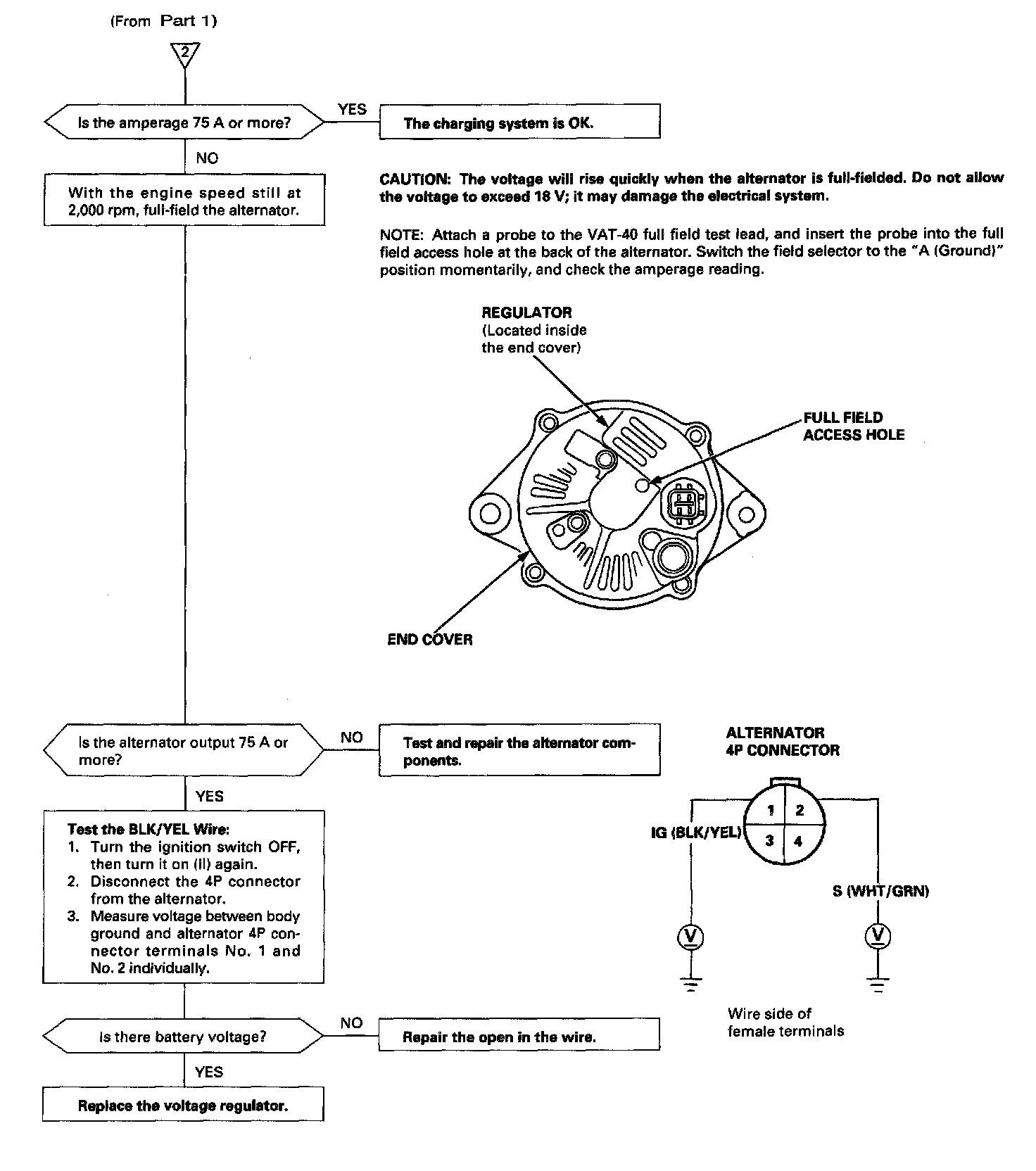

Alternator/Regulator Test (Part 2):
