With Navigation System
WARNING: This page is about a different car, the 2003 Acura 3.2CL and 2002 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.
- Make sure you have the anti-theft code for the radio and the navigation system, then write down the frequencies for the radio's preset buttons.
- Remove the climate control unit together with the audio unit (see STEREO SOUND SYSTEM ).

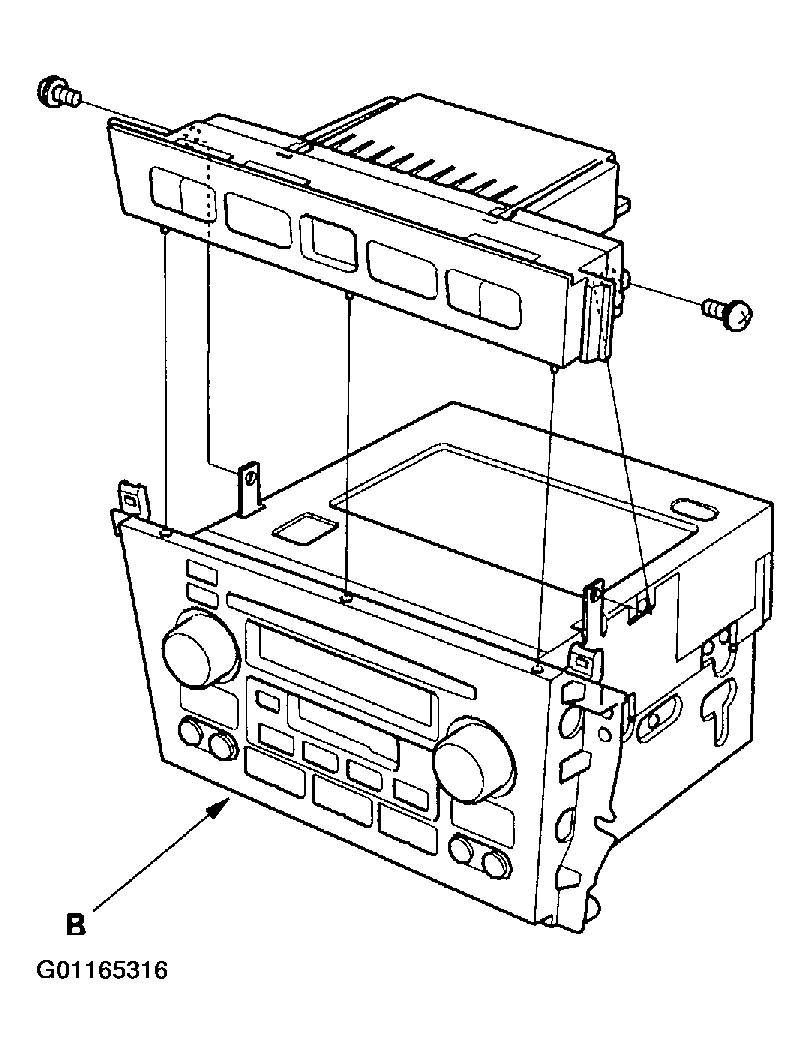

- Remove the screws and climate control unit (A) from the audio unit (B).
- Install the control unit in the reverse order of removal, and note these items:
- After installation, operate the climate control unit to see whether it works properly.
- Run the self-diagnosis function to confirm that there are no problems in the system (see RUNNING THE SELF-DIAGNOSIS FUNCTION ).
- Enter the anti-theft code for radio and the navigation system, then enter the customer's radio station presents.
