Component Location Index

WARNING: This page is about a different car, the 2003 Acura 3.2CL and 2002 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.

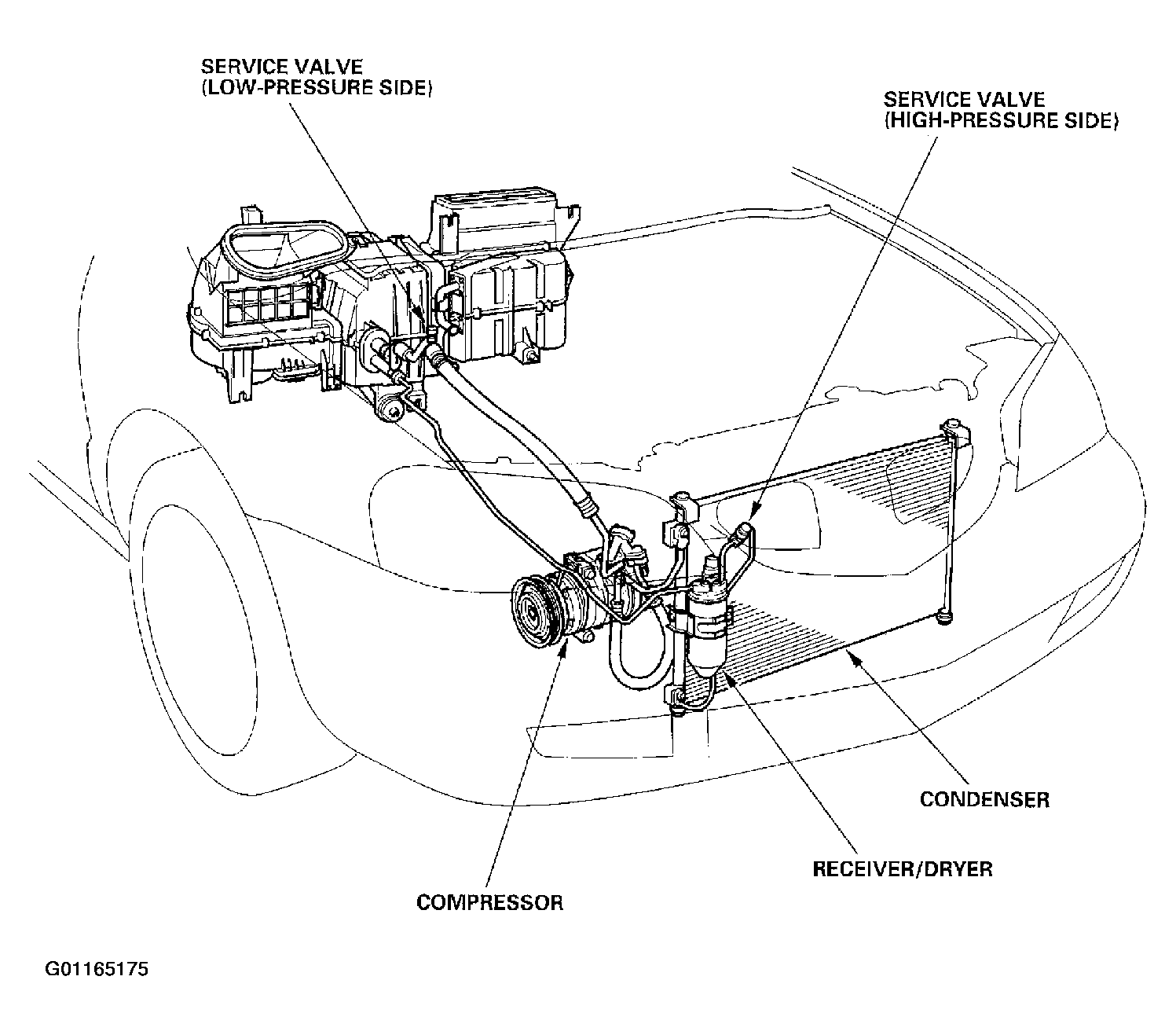

Fig 1: Locating Automatic A/C System Components (1 Of 3)
G01165175Courtesy of AMERICAN HONDA MOTOR CO., INC.

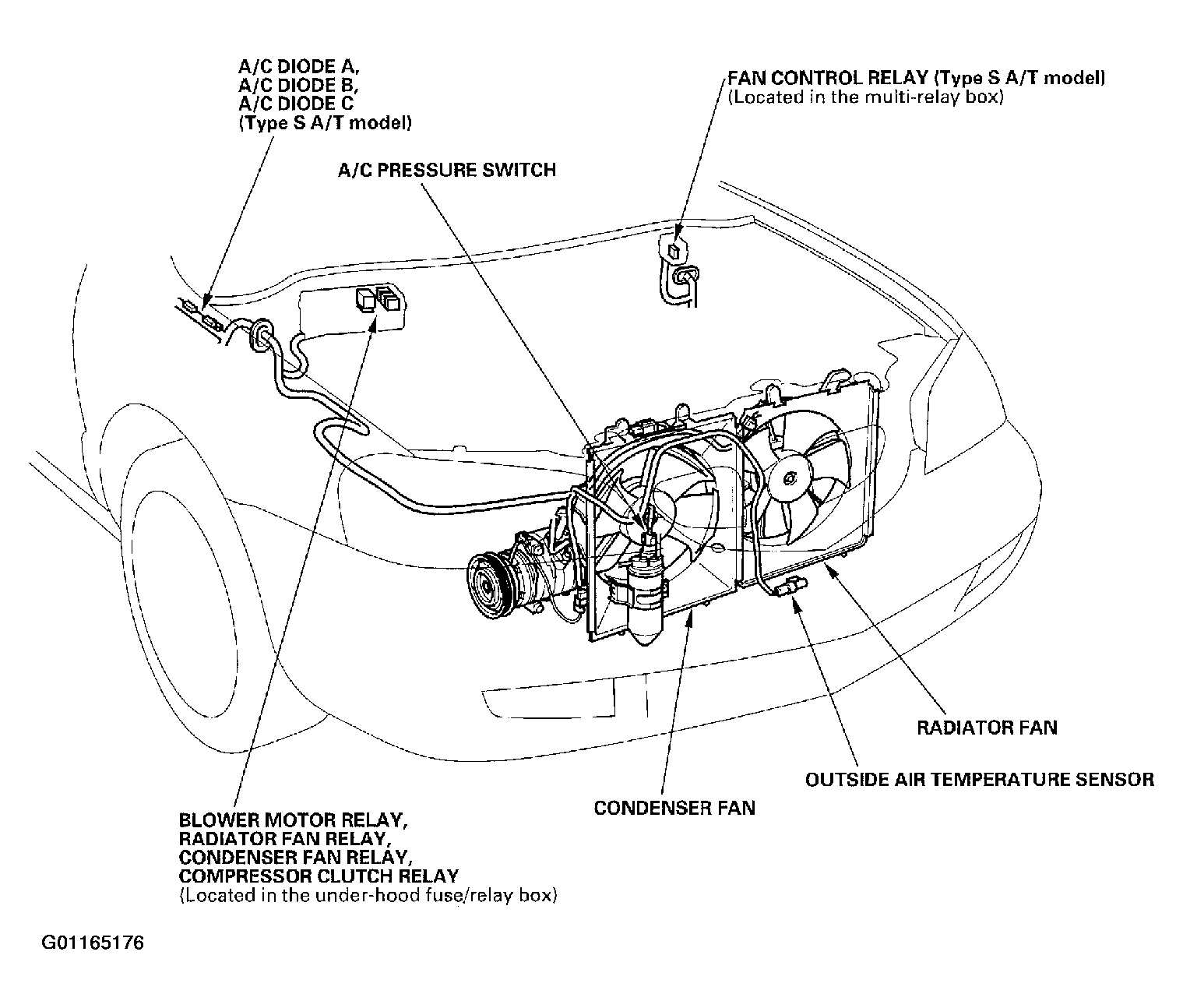

Fig 2: Locating Automatic A/C System Components (2 Of 3)
G01165176Courtesy of AMERICAN HONDA MOTOR CO., INC.

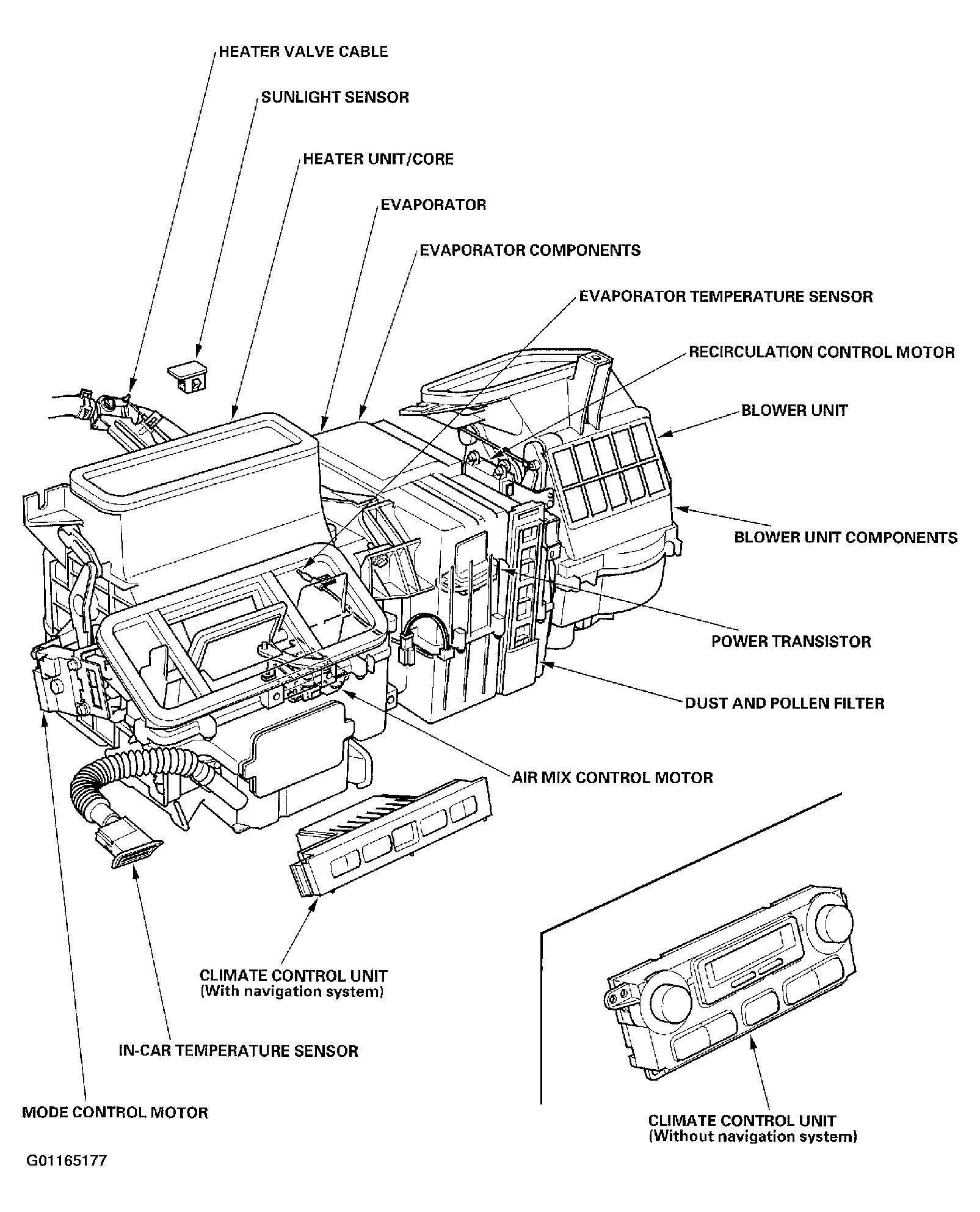

Fig 3: Locating Automatic A/C System Components (3 Of 3)
G01165177Courtesy of AMERICAN HONDA MOTOR CO., INC.
