Compressor Replacement

WARNING: This page is about a different car, the 2003 Acura 3.2CL and 2002 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
  2. Make sure you have the anti-theft code for the radio and the navigation system, then write down the frequencies for the radio's preset buttons.
  3. Disconnect the negative cable from the battery.
  4. Recover the refrigerant with a recovery/recycling/charging station (see REFRIGERANT RECOVERY ).
  5. Remove the alternator (see GENERATORS & REGULATORS ).
  6. Remove the compressor clutch connector (A) from the condenser fan shroud (B), then disconnect the compressor clutch connector. Disconnect the condenser fan connector (C), then remove the wire harness clips (D) from the condenser fan shroud. Remove the cruise control actuator cable (E) from the clamp. Loosen the lower mounting bolt, then remove the upper mounting bolts and the condenser fan shroud. Be careful not to damage the radiator fins when removing the condenser fan shroud.

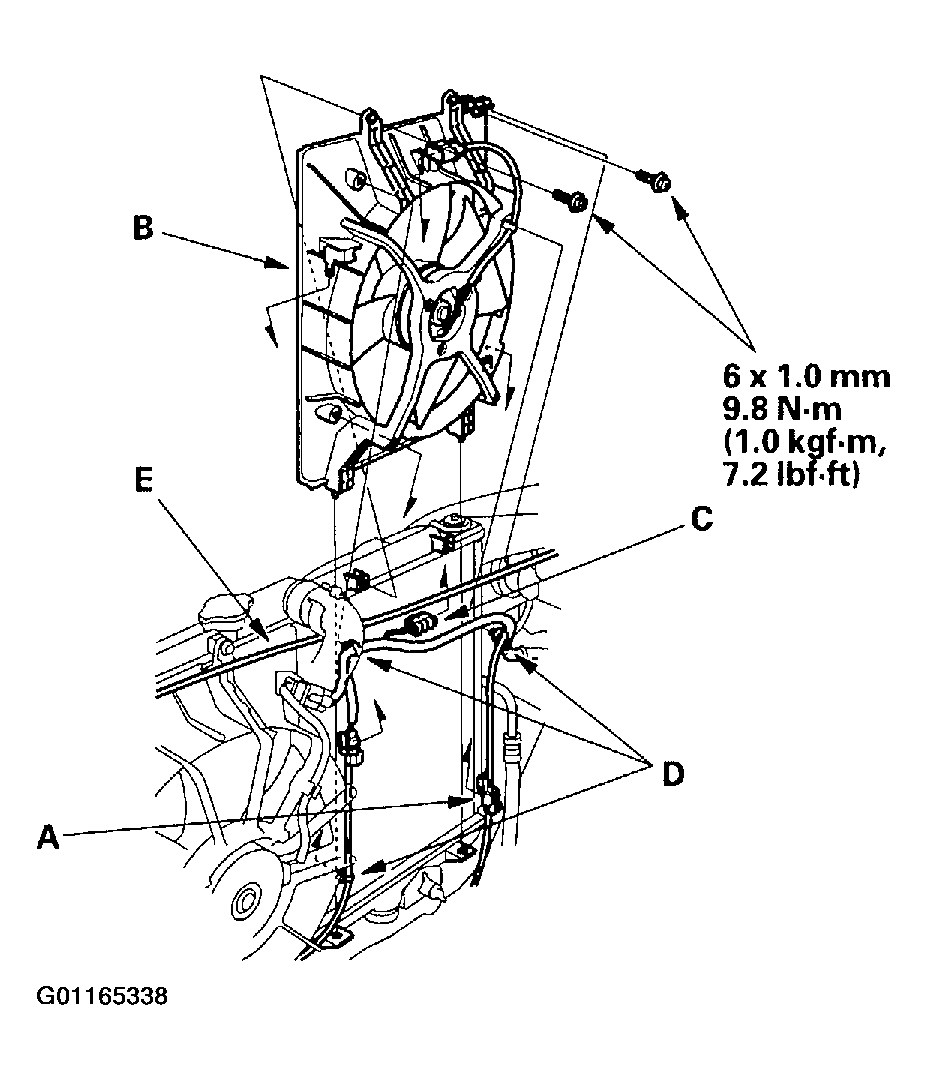

    Fig 1: Removing The Condenser Fan Shroud
    G01165338Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the bolt and the nut, then disconnect the suction line (A) and discharge line (B) from the compressor. Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.
    Fig 2: Disconnecting The Suction Line And Discharge Line From The Compressor
    G01165339Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the mounting bolts and the compressor. Be careful not to damage the radiator fins when removing the compressor.

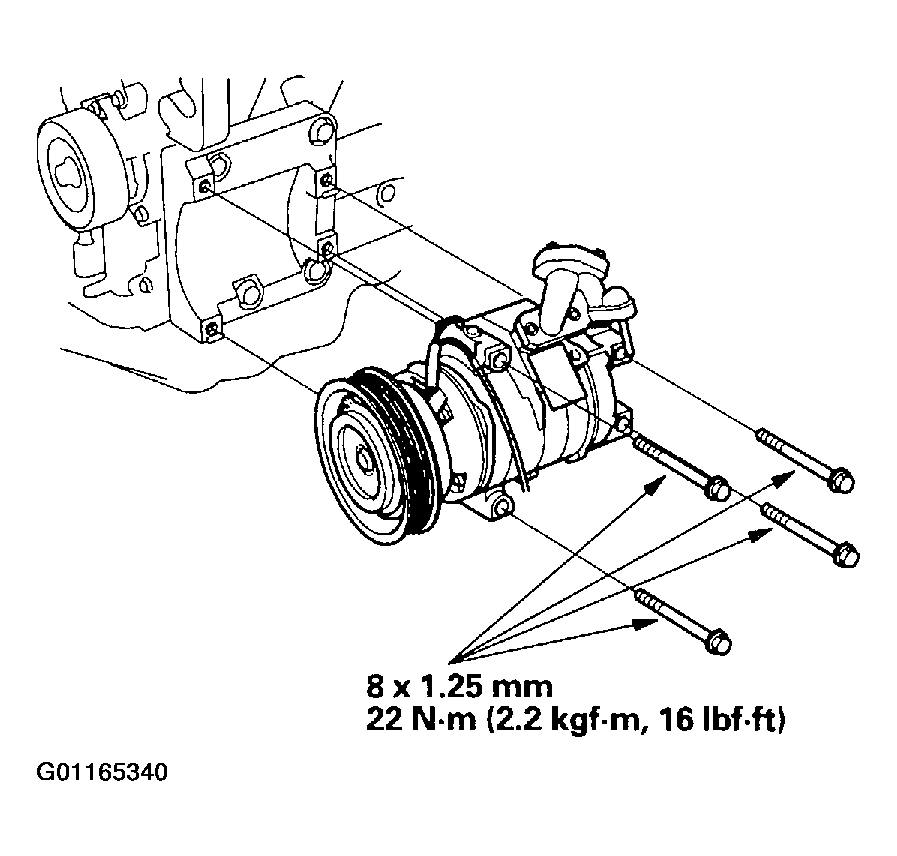

    Fig 3: Remove The Compressor
    G01165340Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. If necessary, remove the mounting bolts and the compressor bracket.

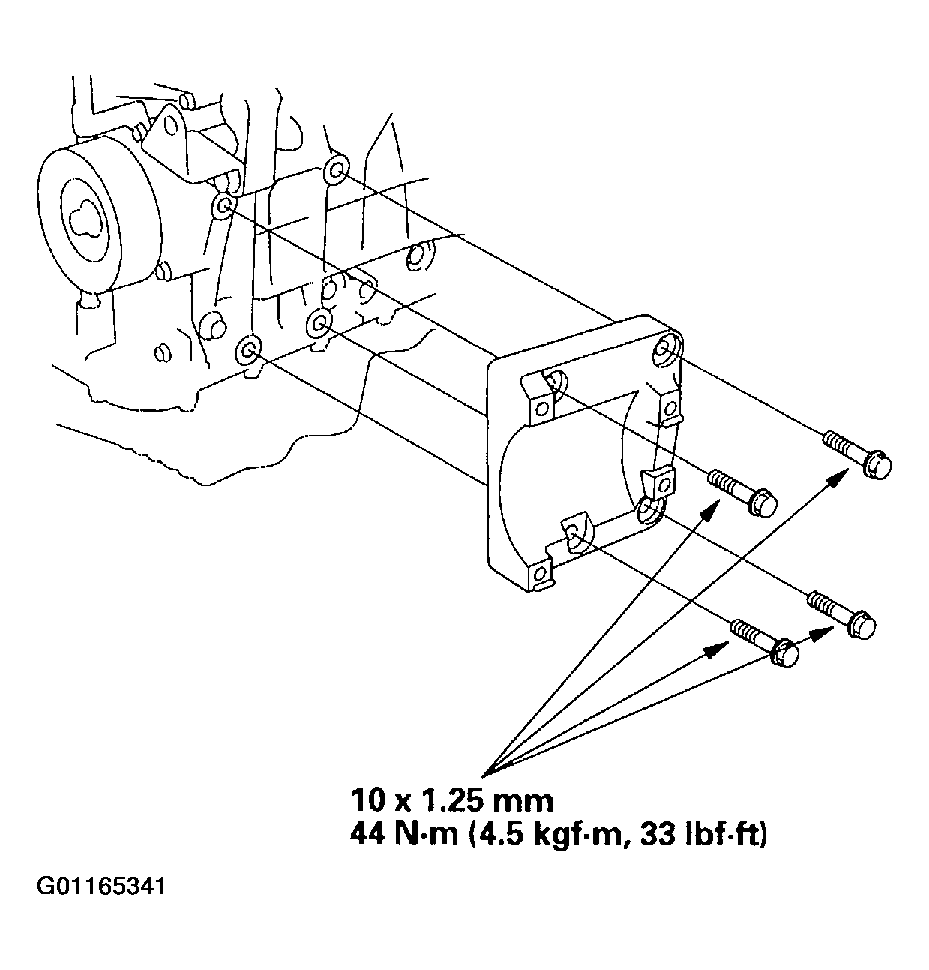

    Fig 4: Remove The Compressor Bracket
    G01165341Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Install the compressor in the reverse order of removal, and note these items:
    • If you're installing a new compressor, you must calculate the amount of refrigerant oil to be removed from it (see A/C REFRIGERANT OIL REPLACEMENT ).
    • Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for HFC-134a (R-134a) to avoid leakage.
    • Use refrigerant oil (DENSO ND-OIL 8) for HFC-134a DENSO piston type compressor only.
    • To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
    • Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
    • Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
    • Be careful not to damage the radiator fins when installing the compressor and the condenser fan shroud.
    • Charge the system (see SYSTEM CHARGING ).
    • Enter the anti-theft code for the radio and the navigation system, then enter the customer's radio station presets.
    • For '03 models: Perform the engine control module (ECM)/powertrain control module (PCM) idle learn procedure, and the power window control unit reset procedure (see COMPUTER RELEARN PROCEDURES ).
