Outside Air Temperature Sensor Replacement

WARNING: This page is about a different car, the 2003 Acura 3.2CL and 2002 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the 2P connector (A) from the outside air temperature sensor (B). Lift the tab (C) to release the lock, and remove the outside air temperature sensor.

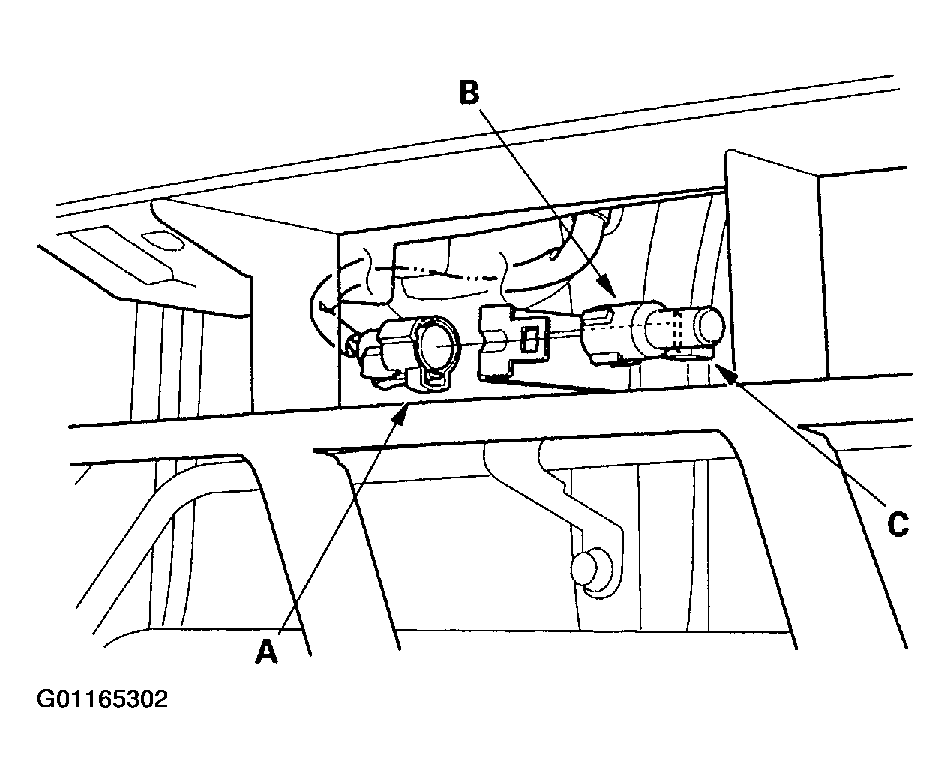

Fig 1: Removing The Outside Air Temperature Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the sensor in the reverse order of removal.
