General Module

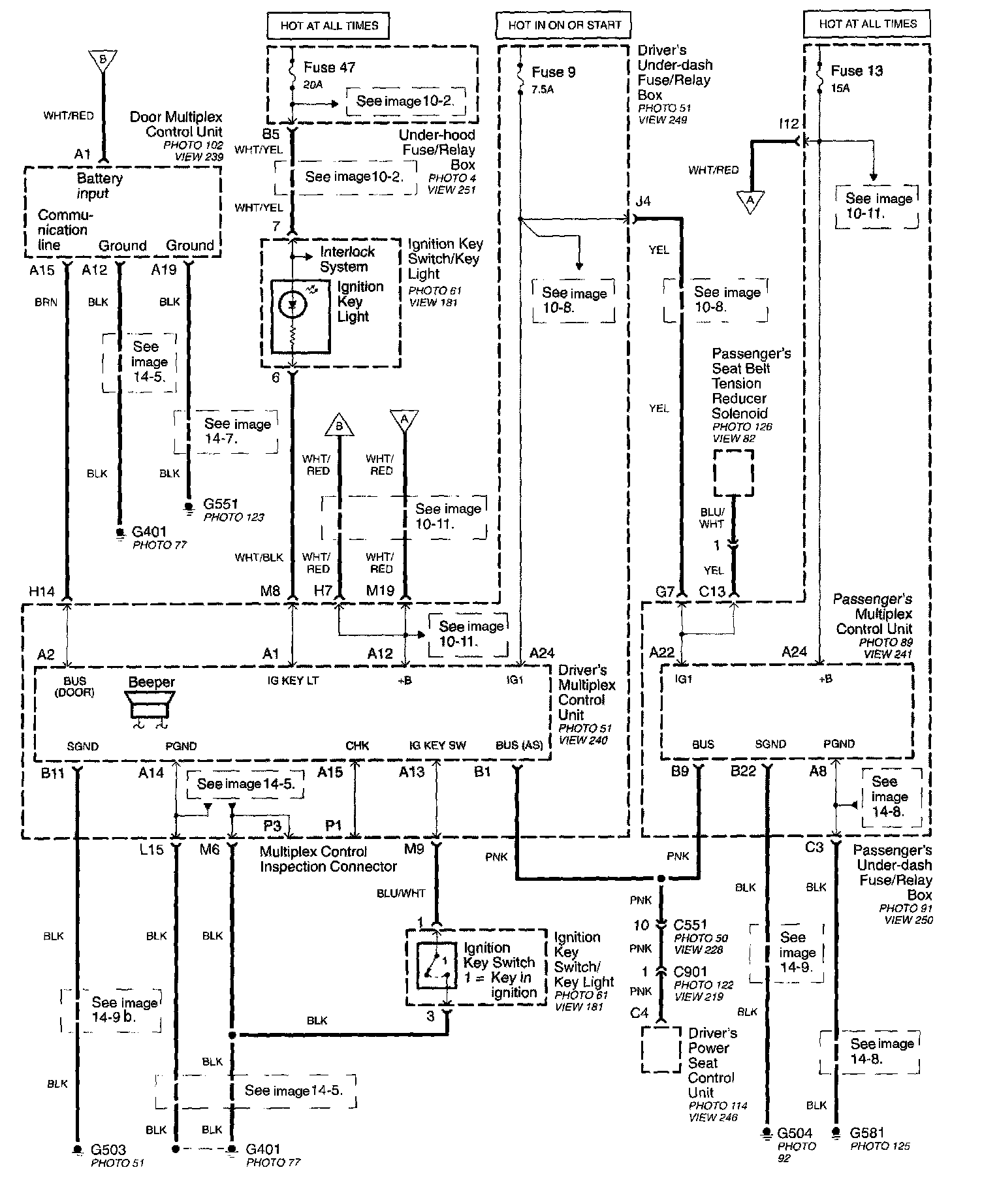

Multiplex Control System Image 50:

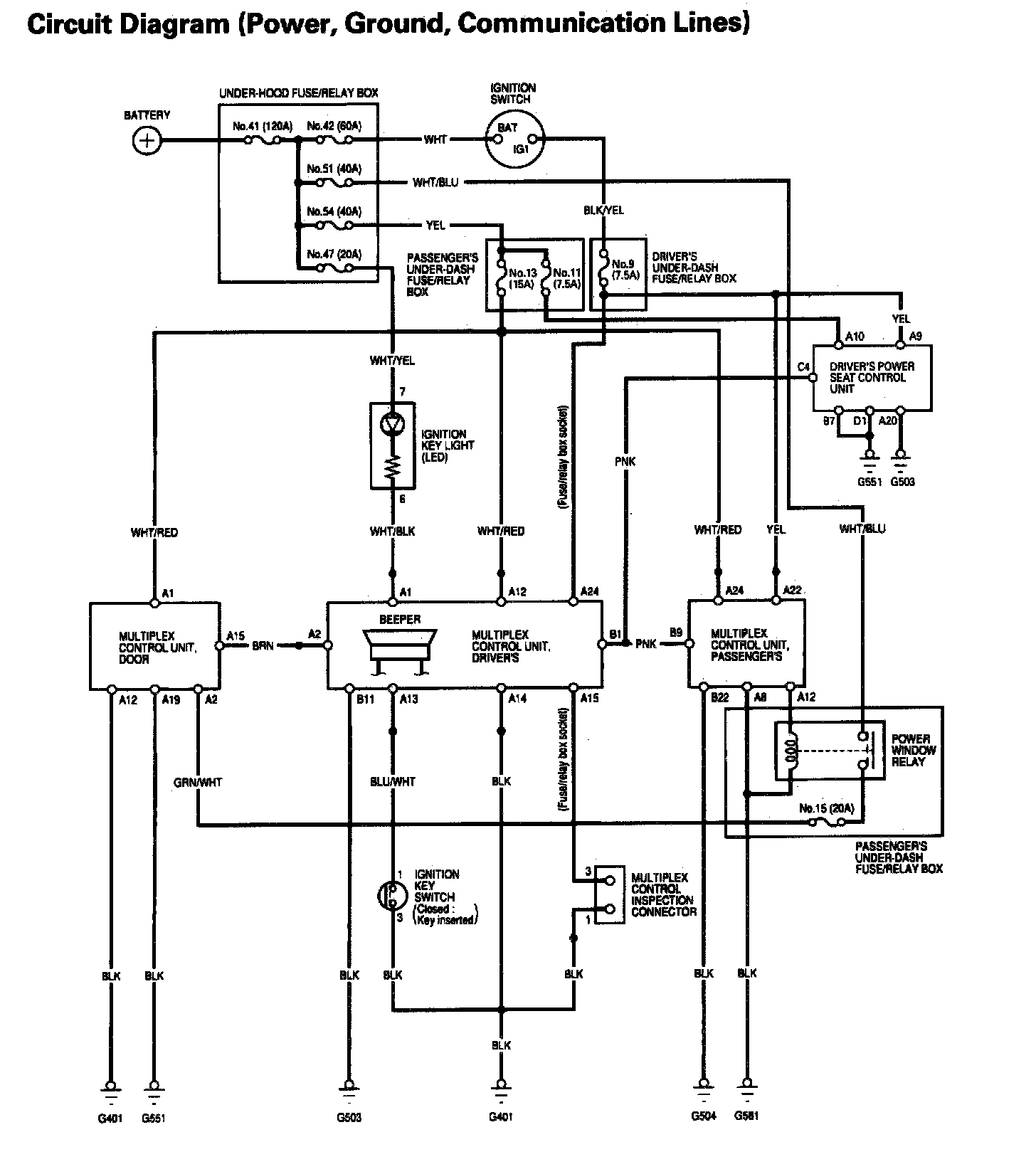

Multiplex Control System - Circuit Diagram (Power, Ground, Communication Lines):
