ECM/PCM Circuit Diagram

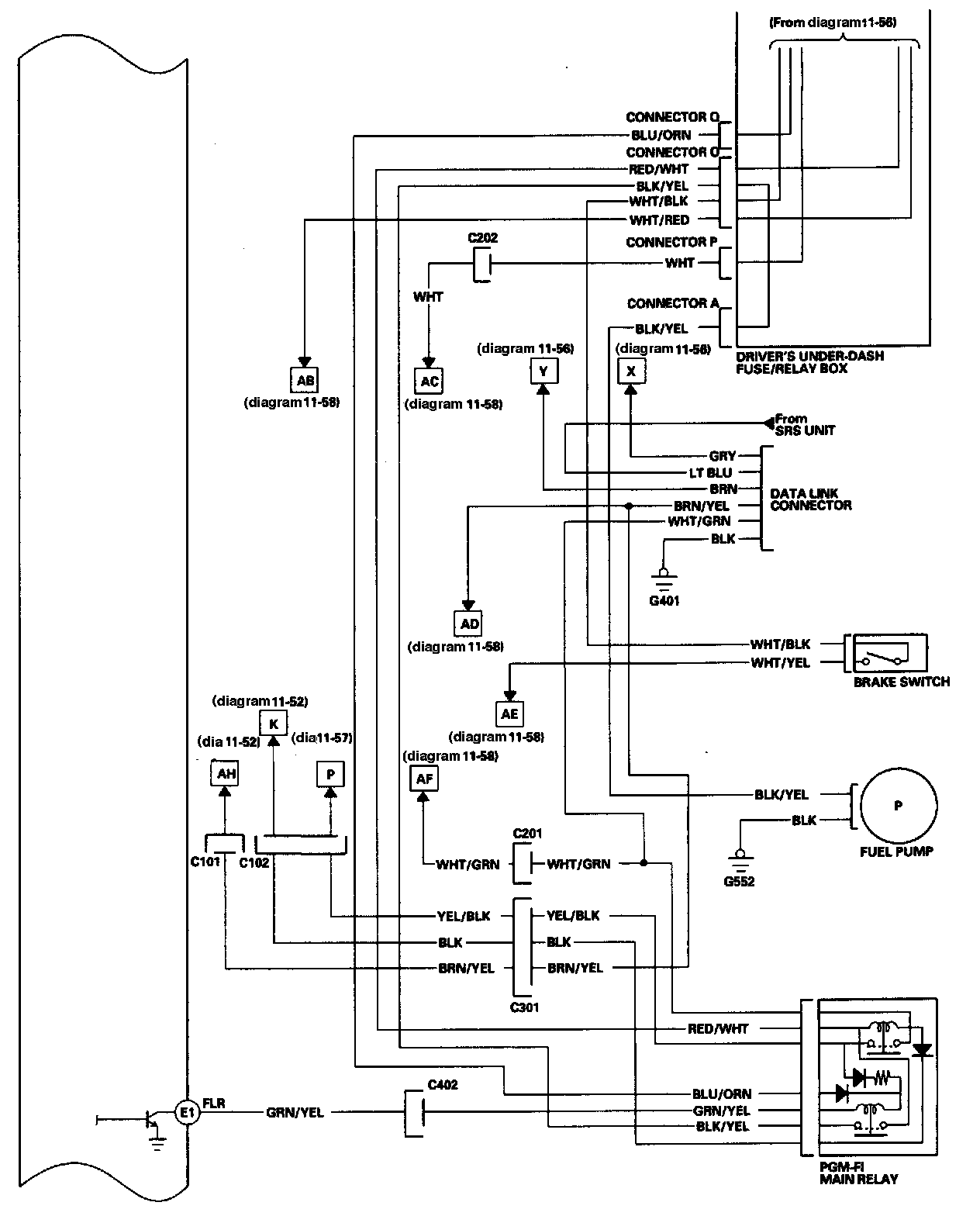

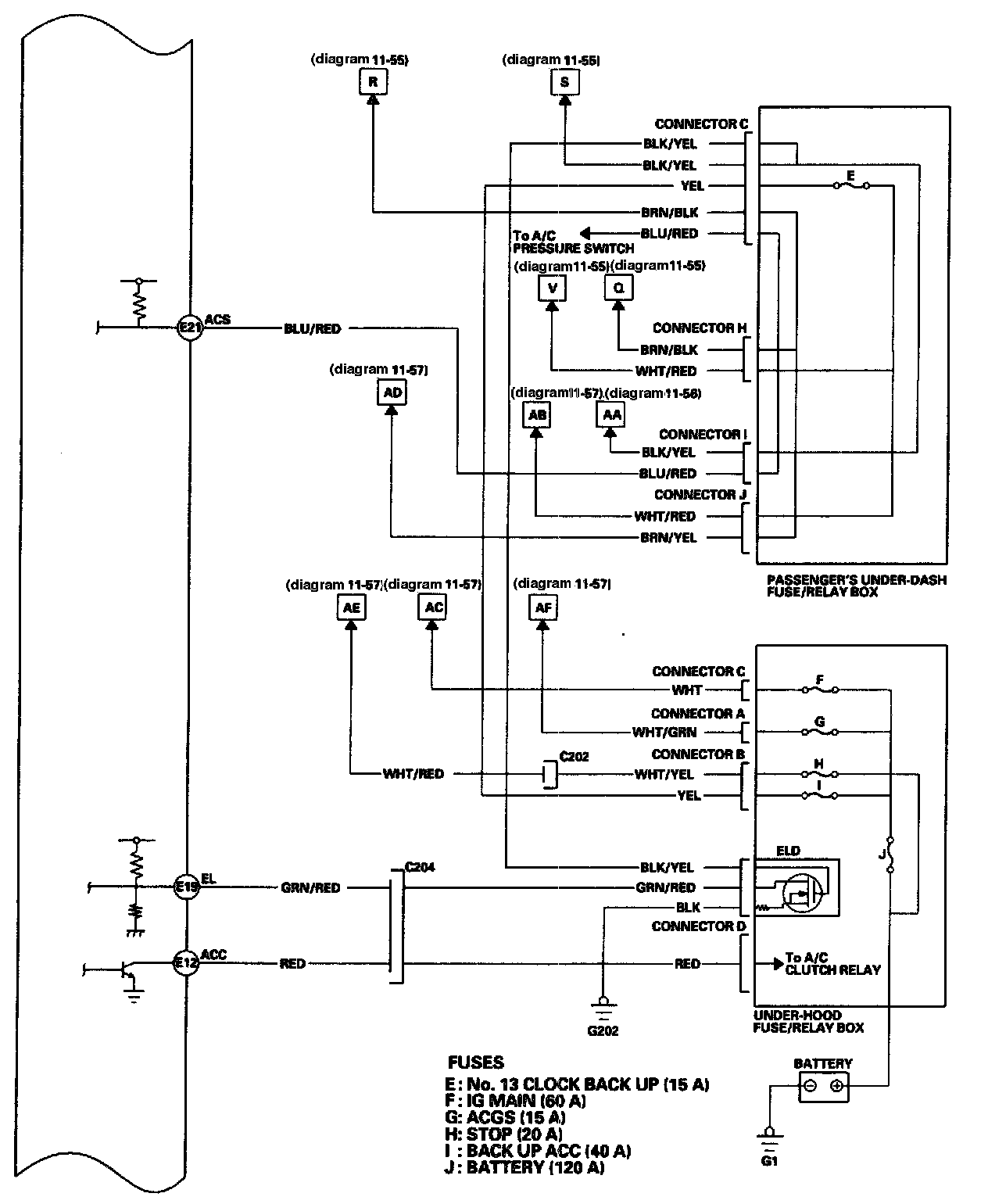

ECM/PCM Circuit Diagram 11-39:

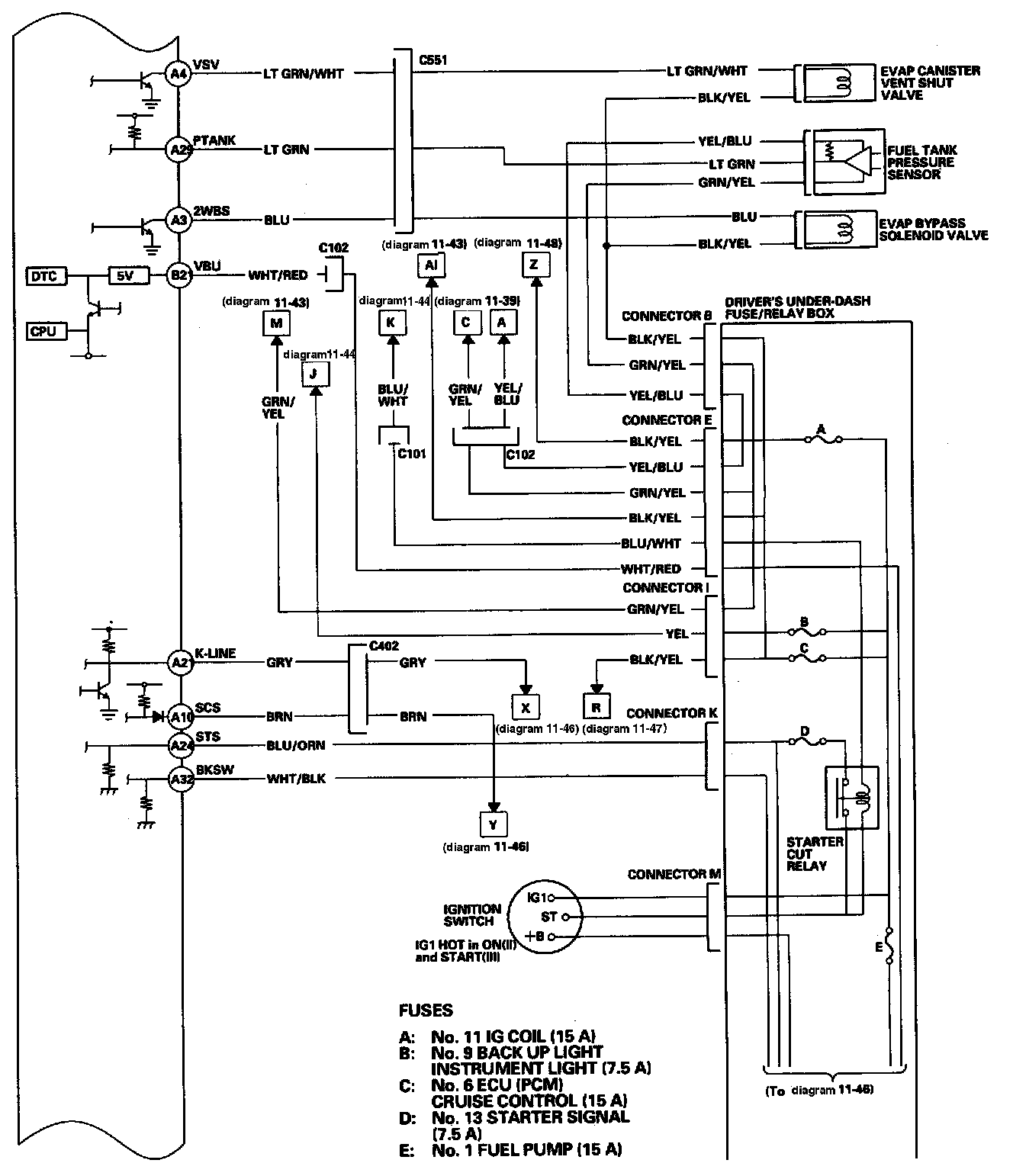

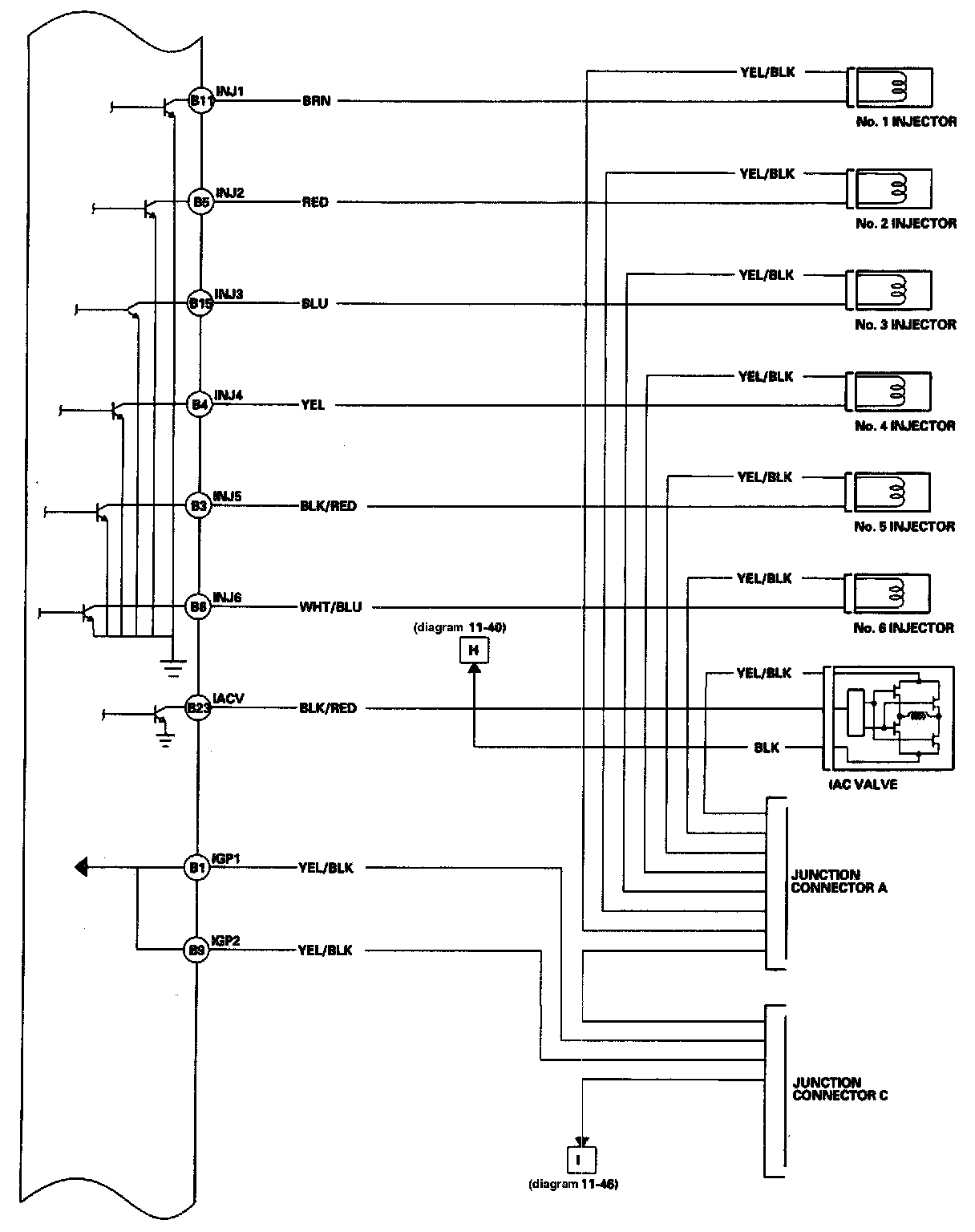

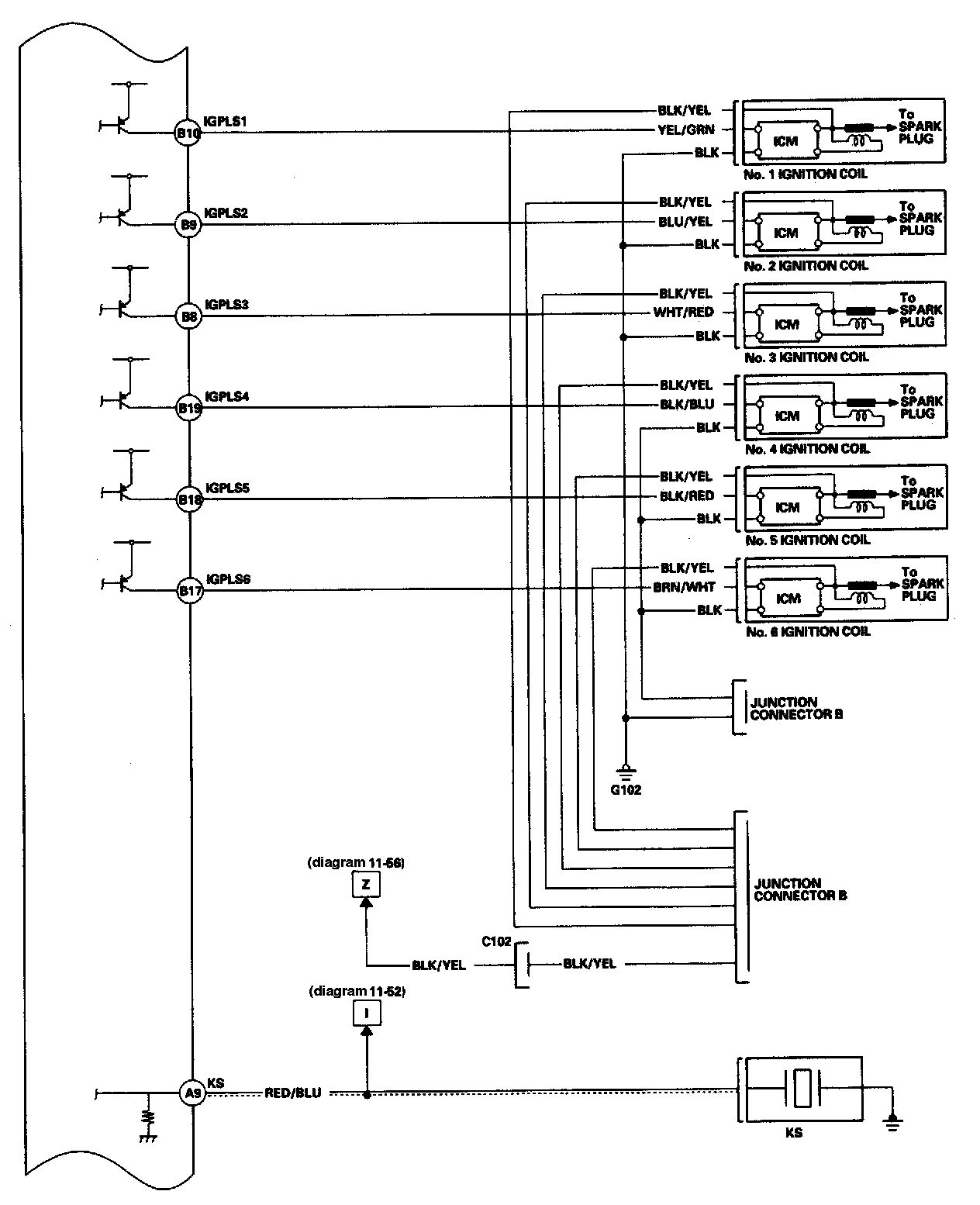

ECM/PCM Circuit Diagram 11-40:

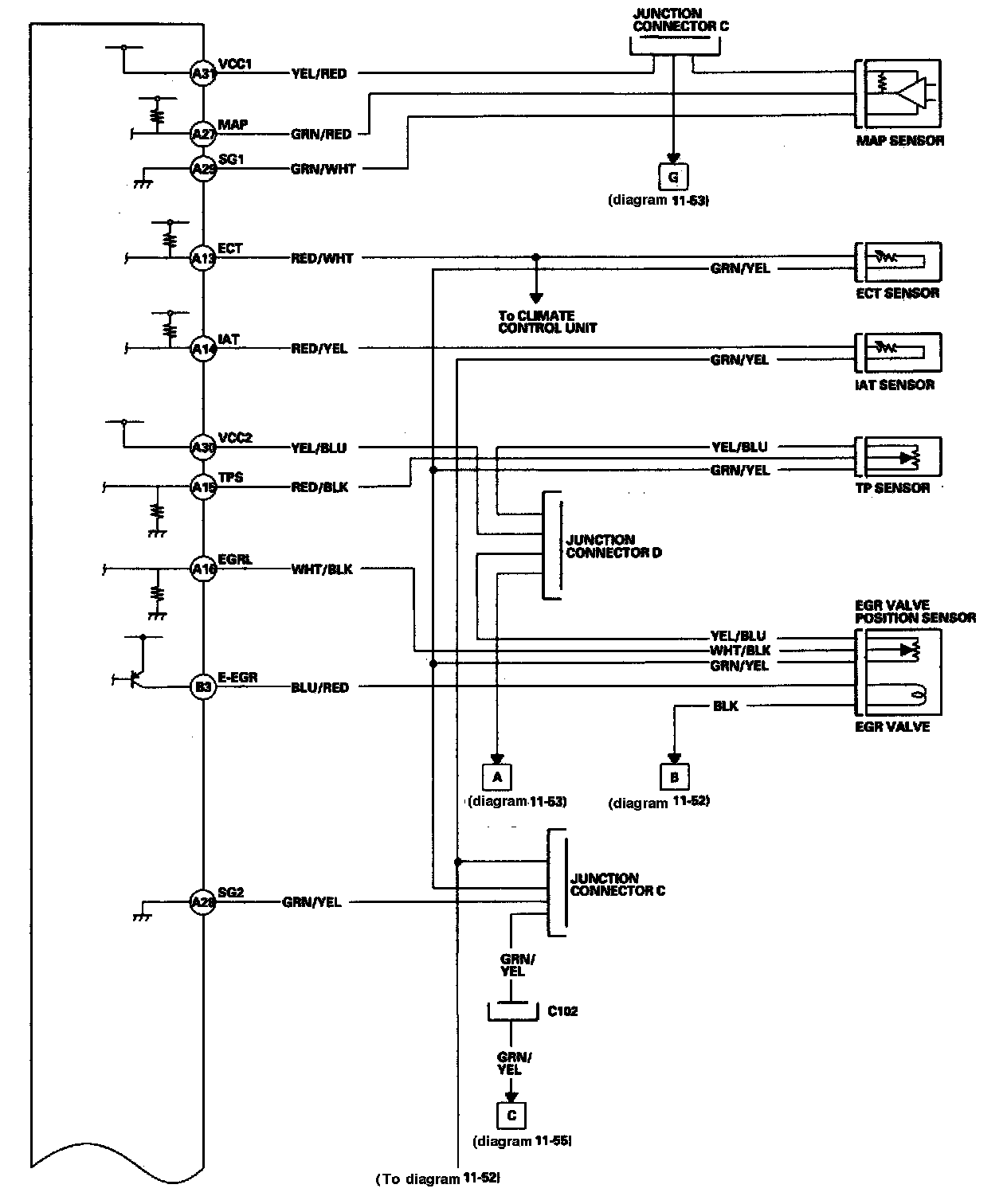

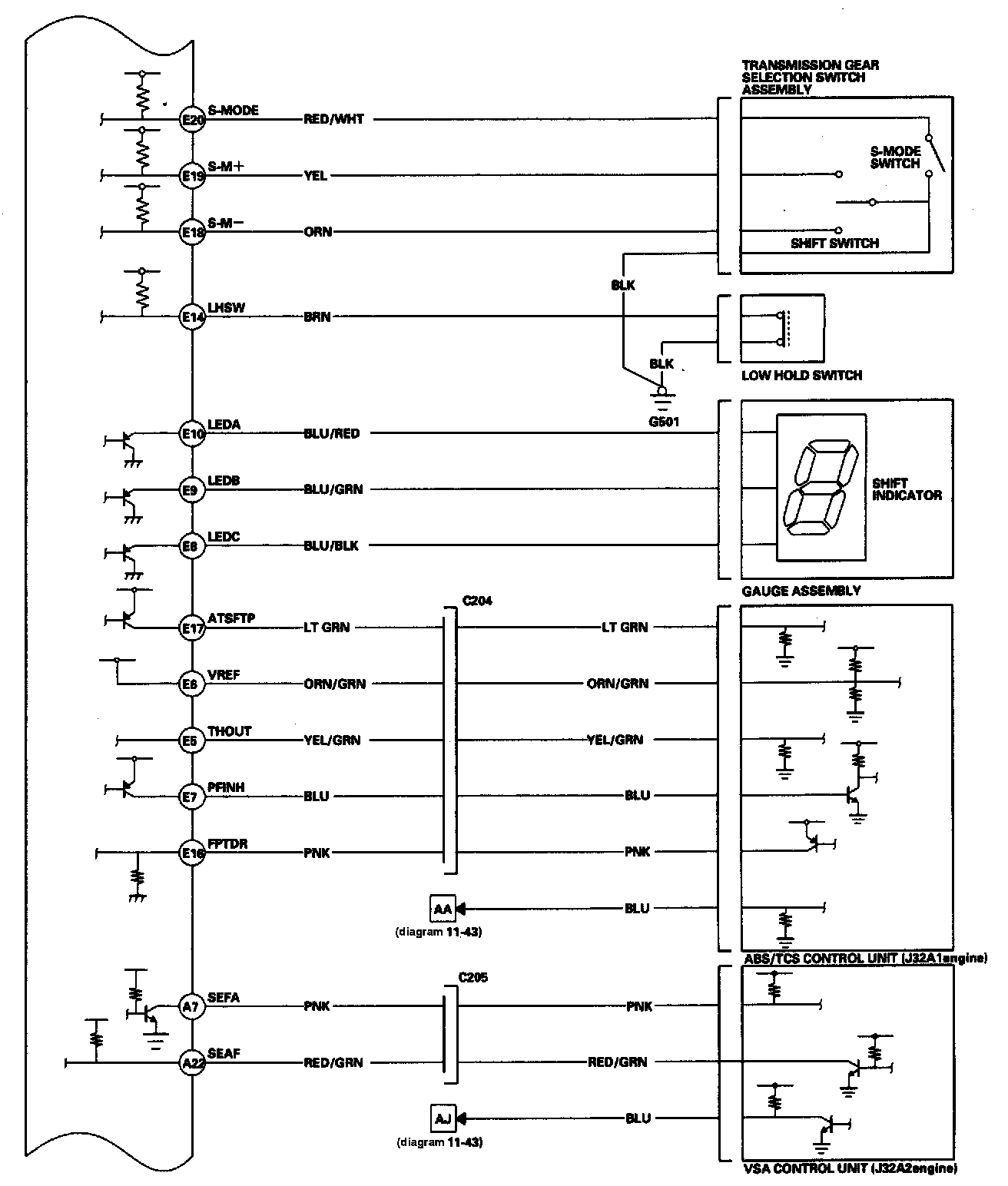

ECM/PCM Circuit Diagram 11-41:

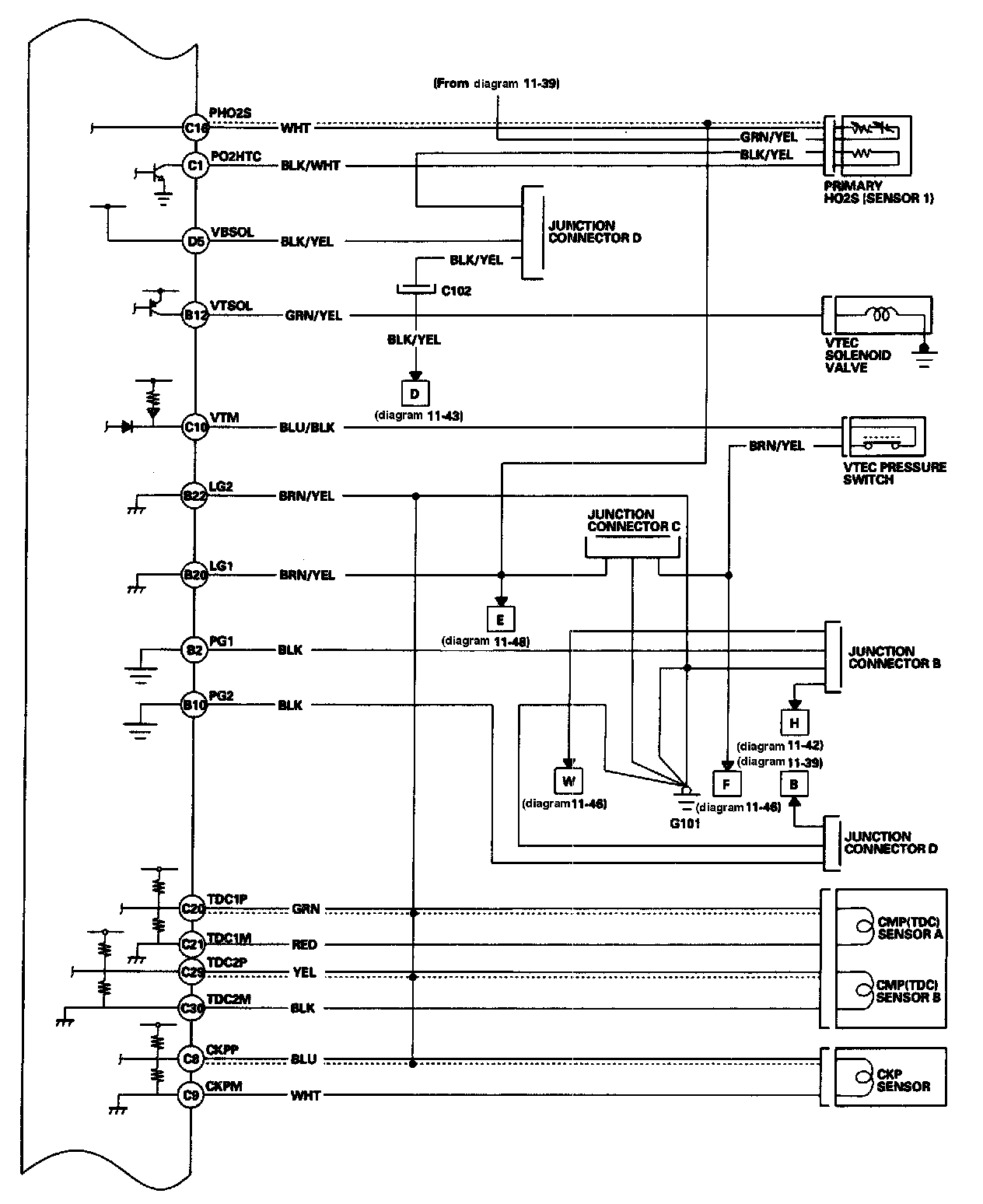

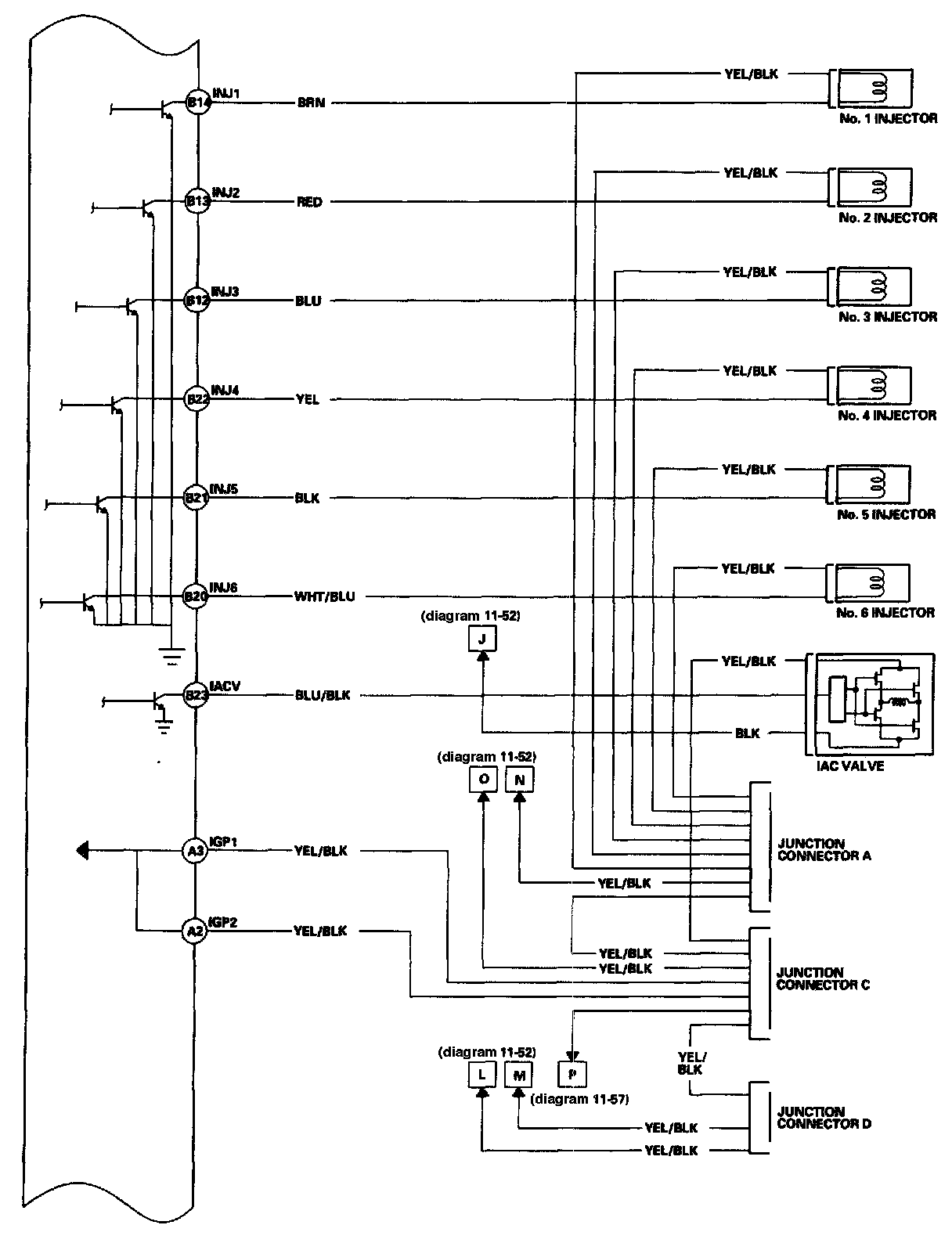

ECM/PCM Circuit Diagram 11-42:

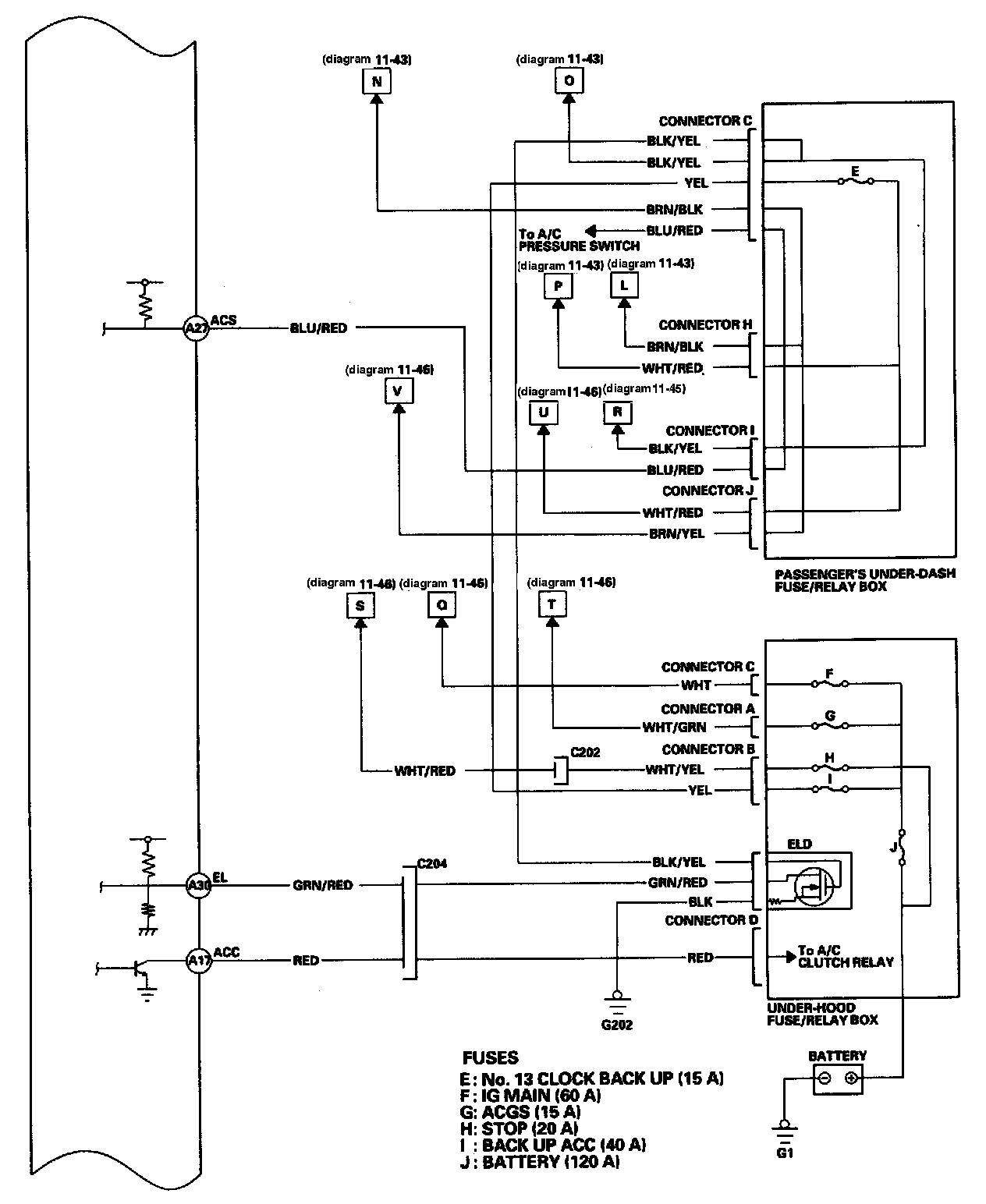

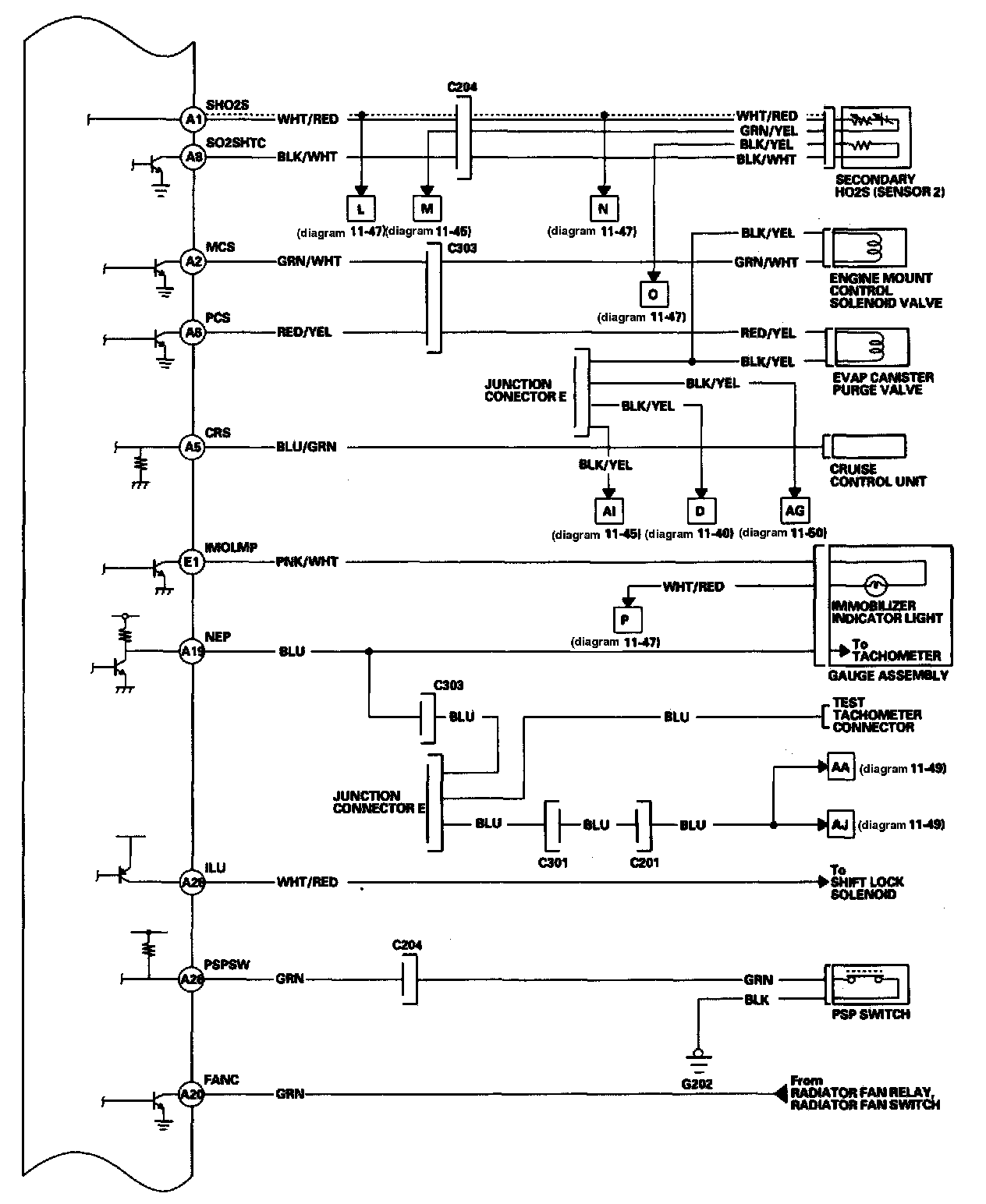

ECM/PCM Circuit Diagram 11-43:

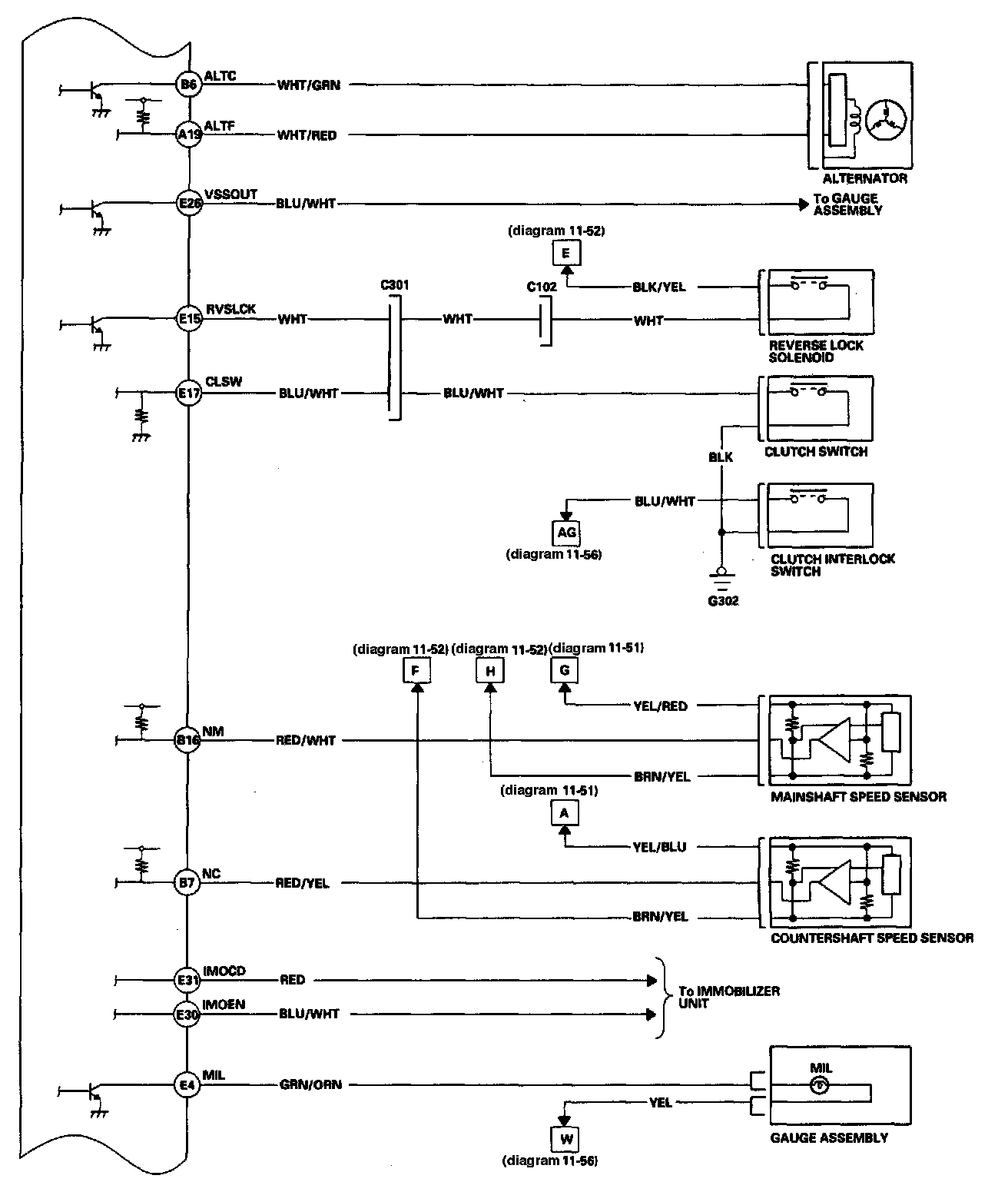

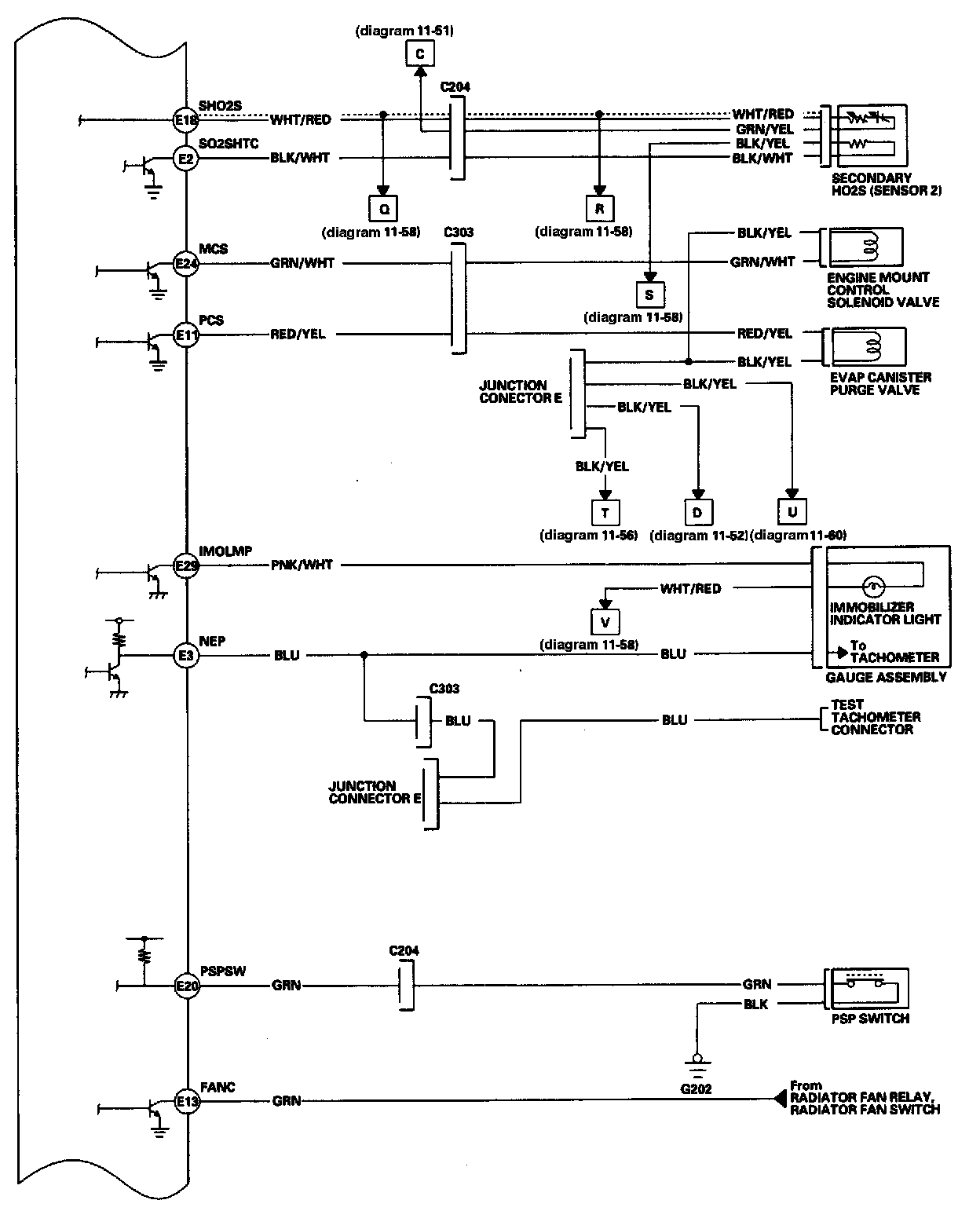

ECM/PCM Circuit Diagram 11-44:

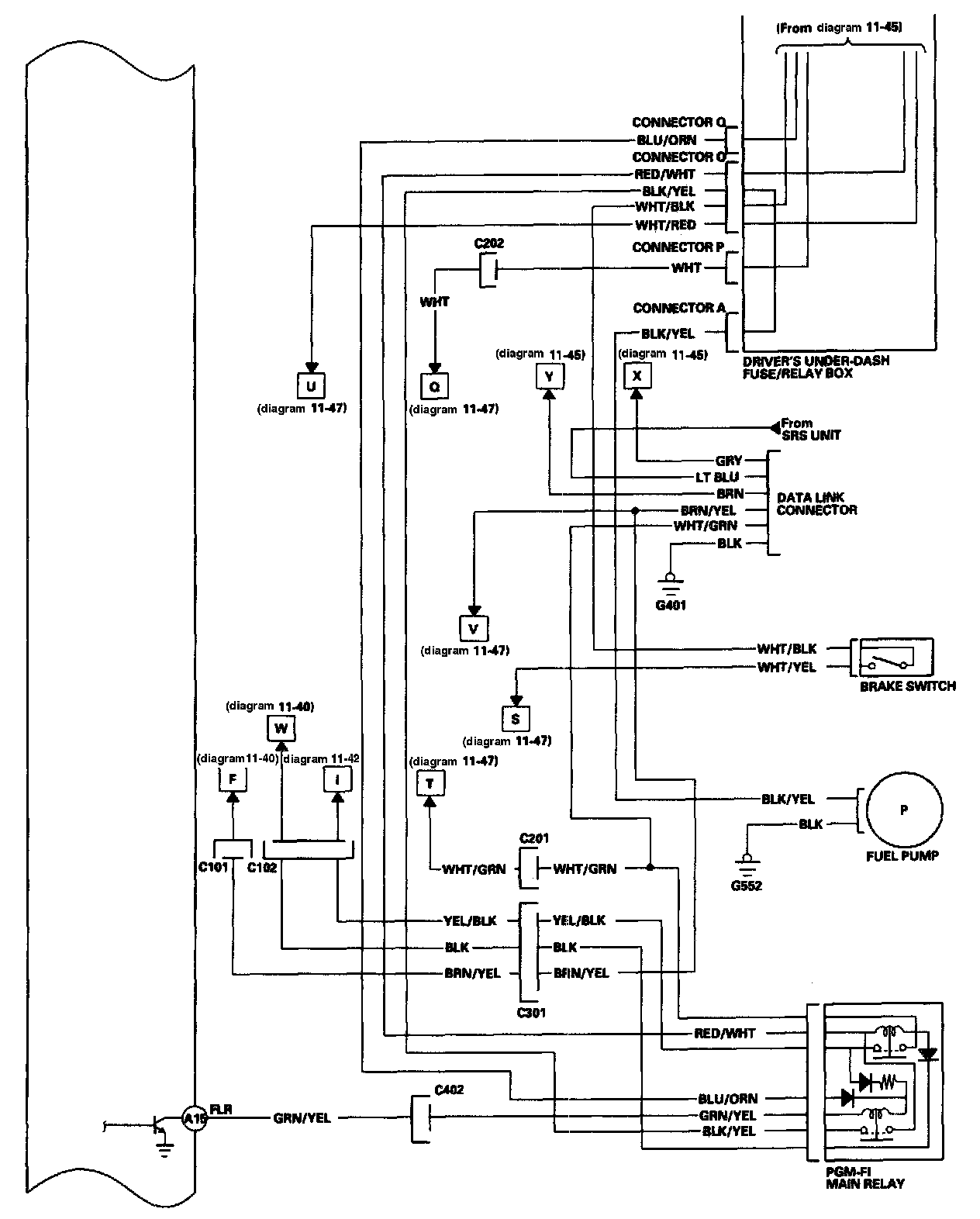

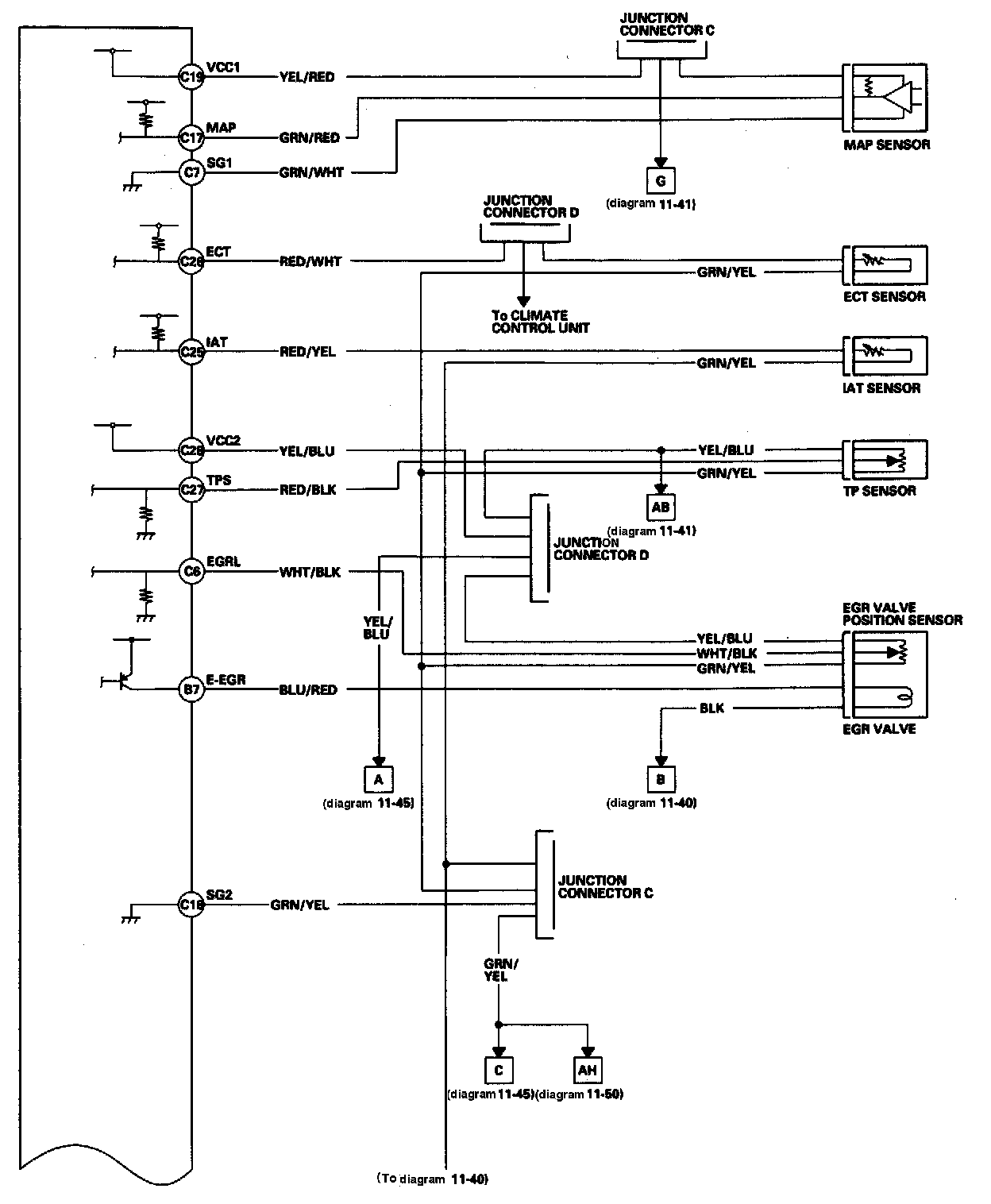

ECM/PCM Circuit Diagram 11-45:

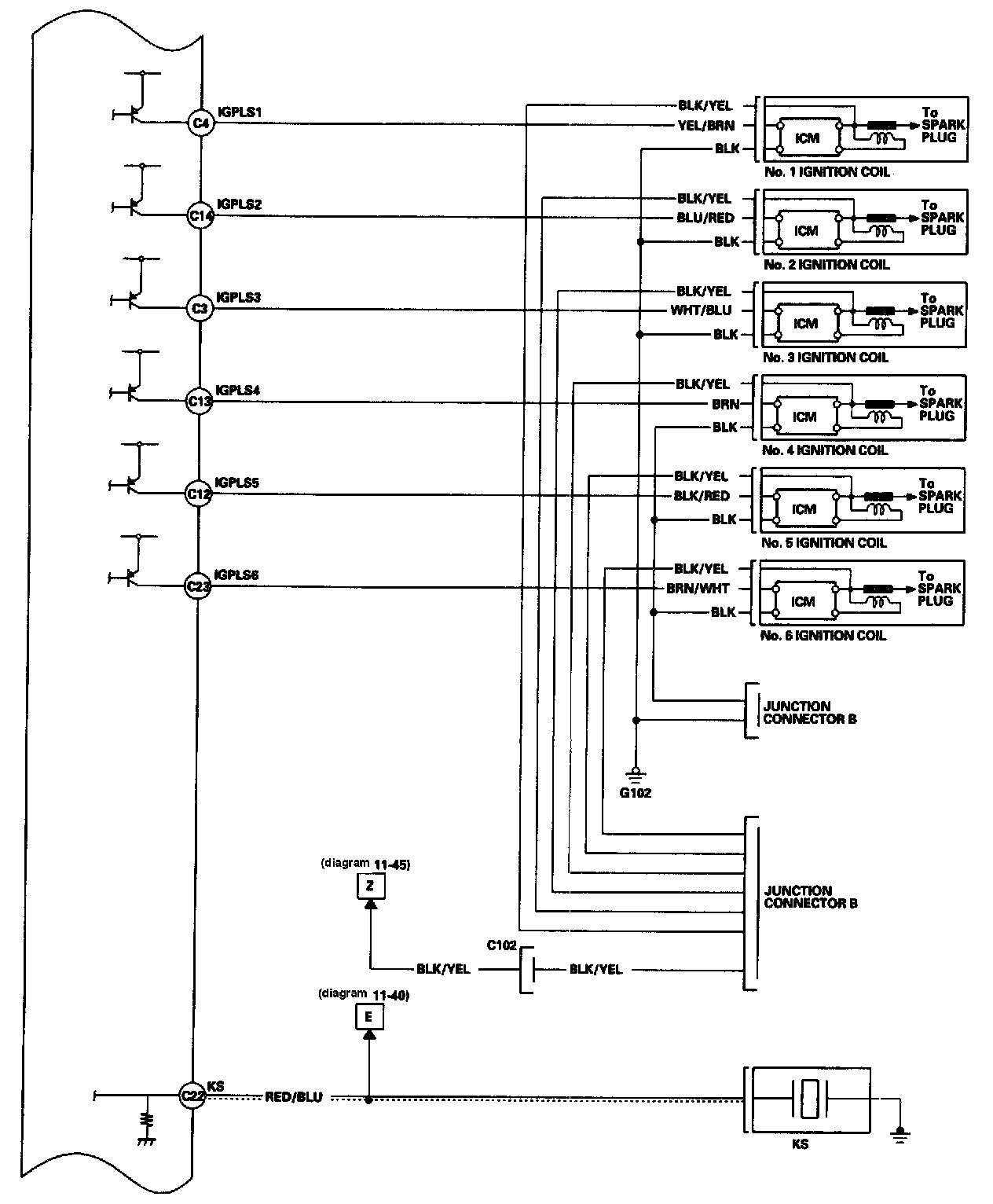

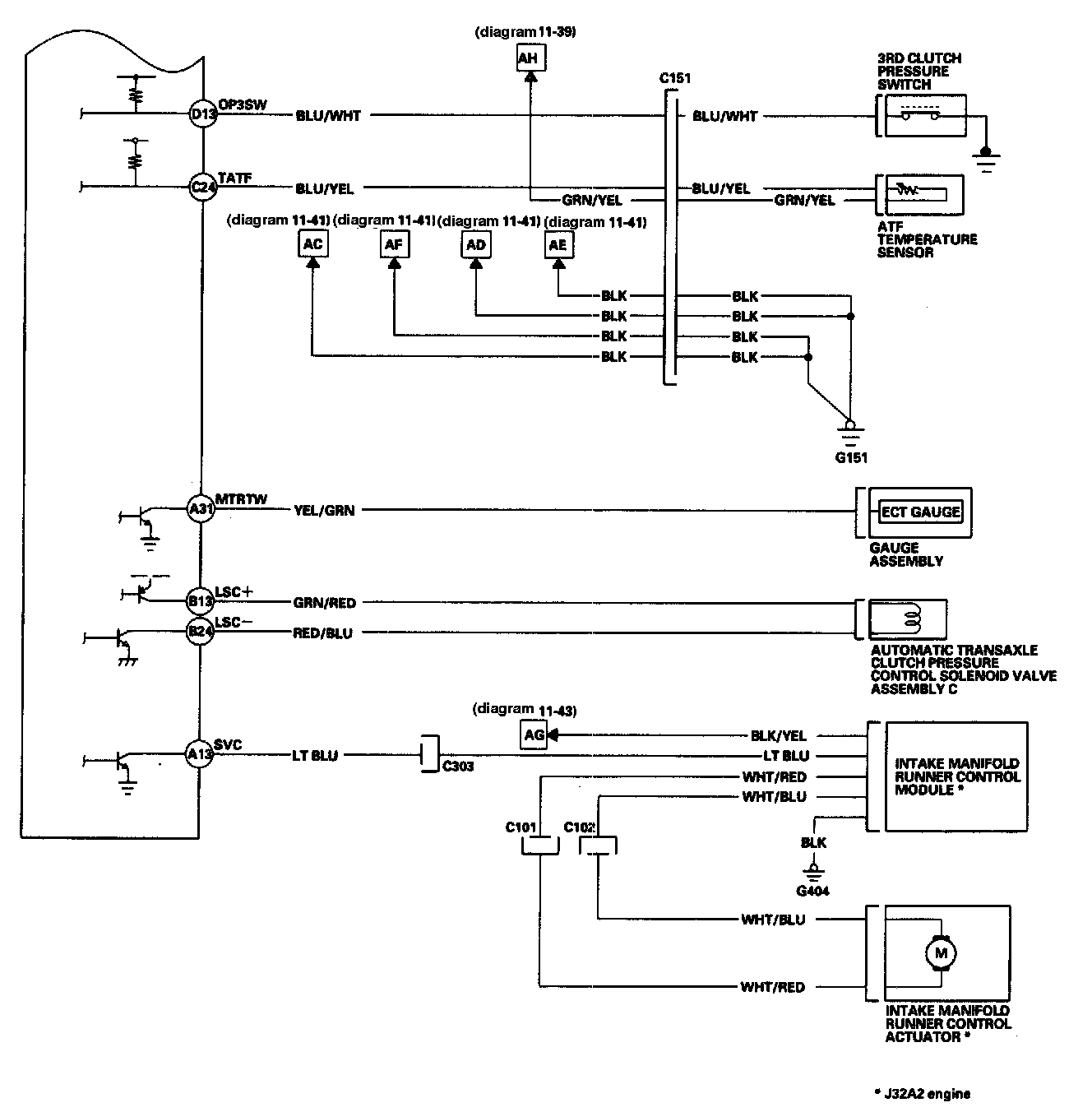

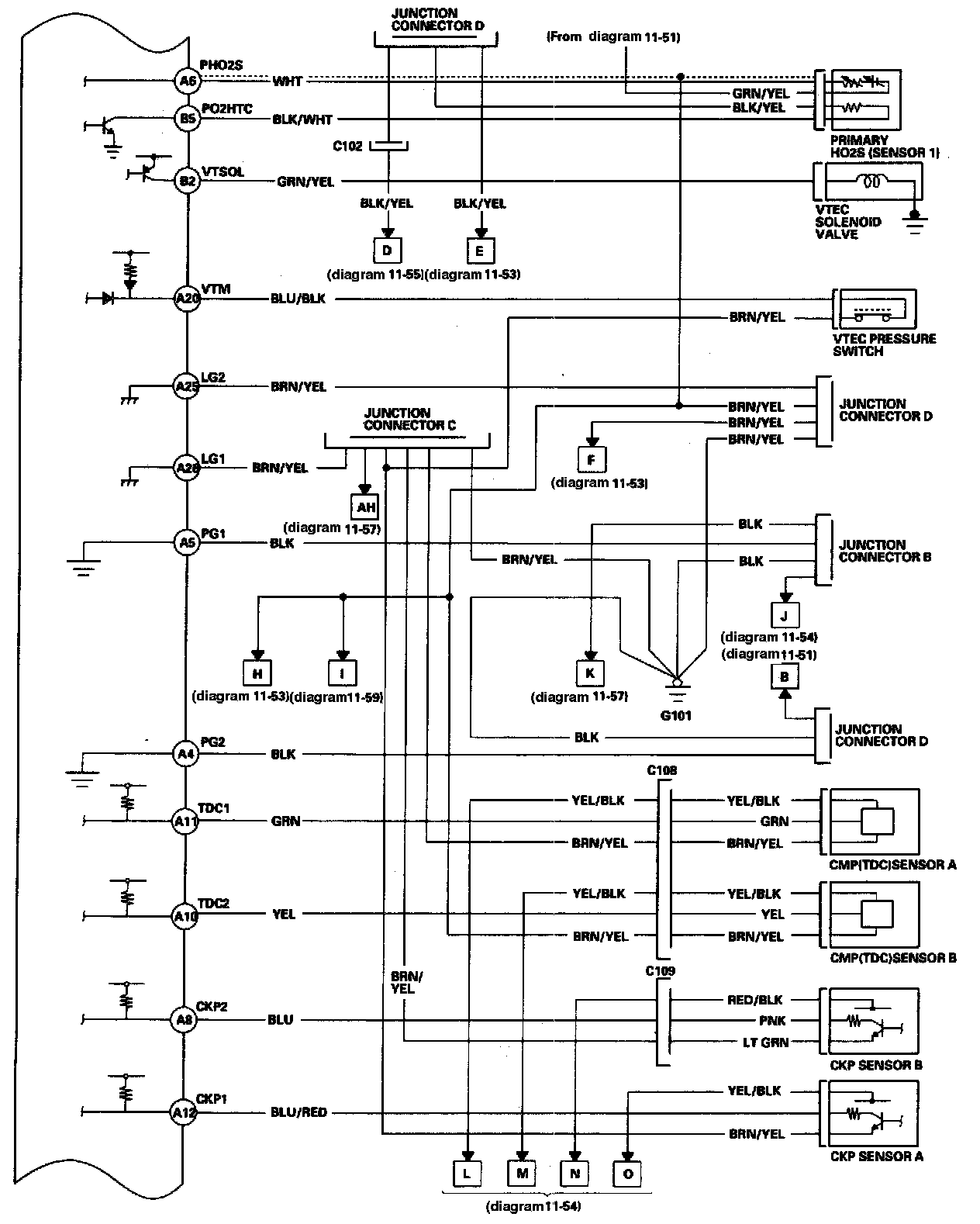

ECM/PCM Circuit Diagram 11-46:




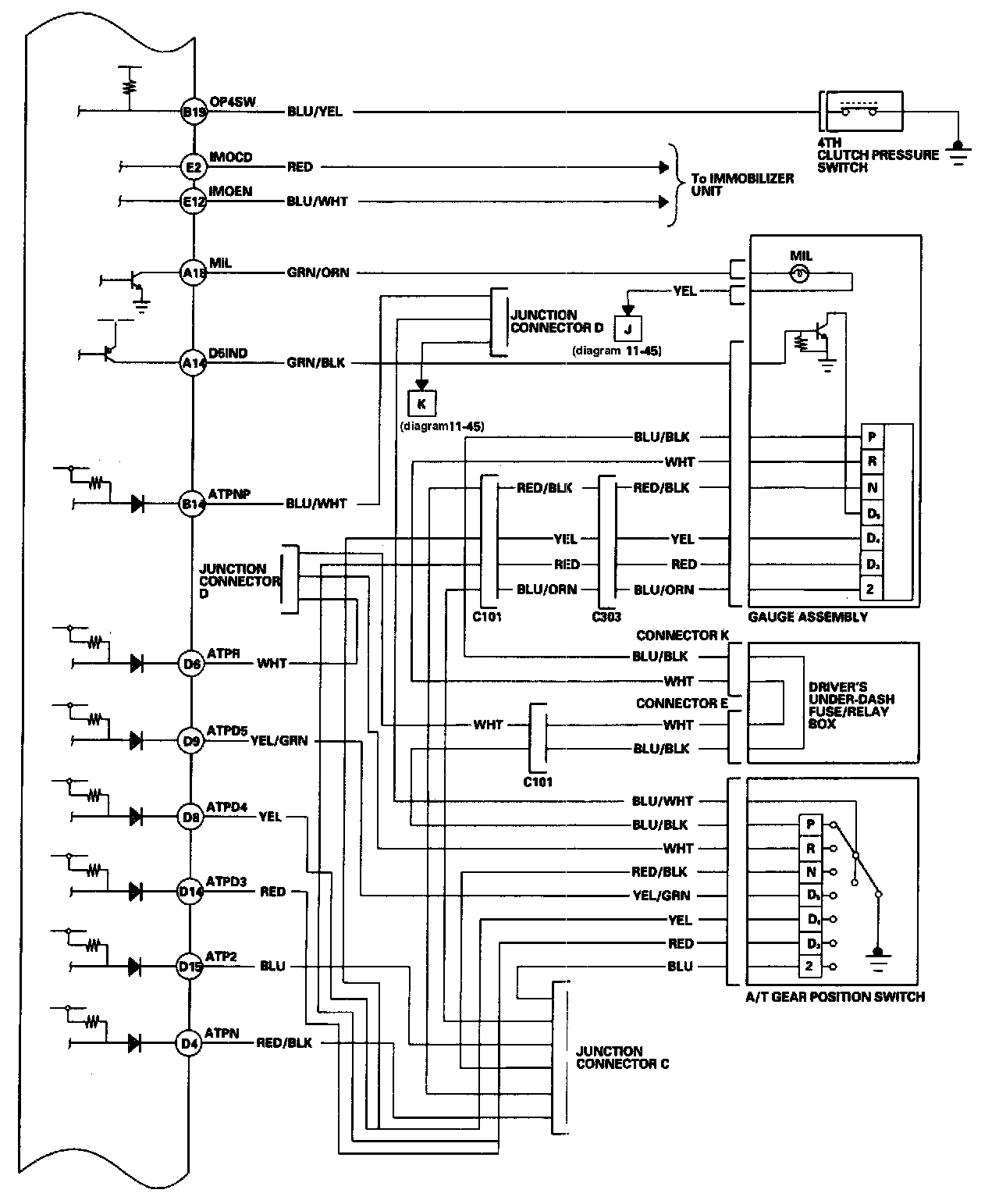

ECM/PCM Circuit Diagram 11-47:




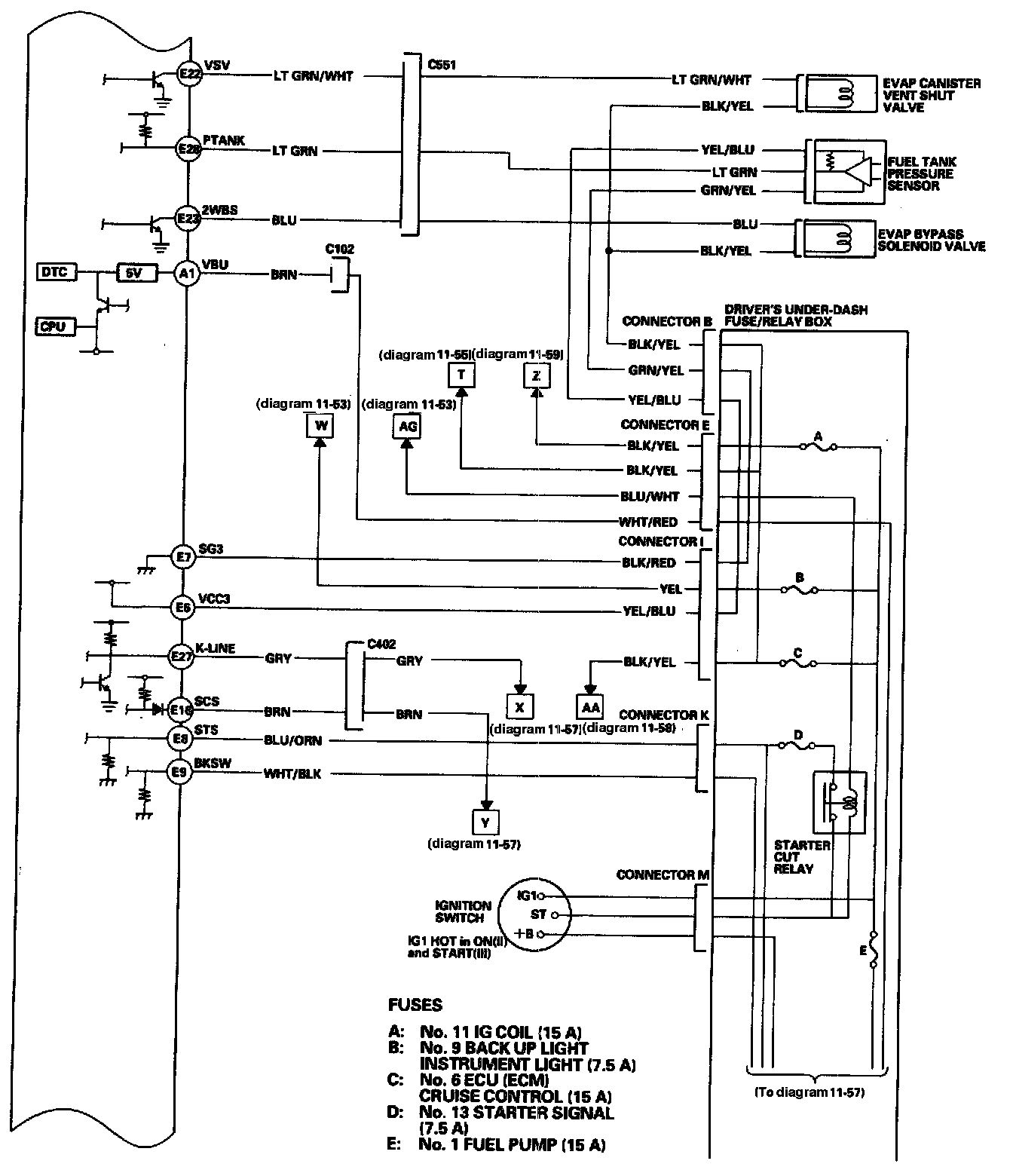

ECM/PCM Circuit Diagram 11-48:




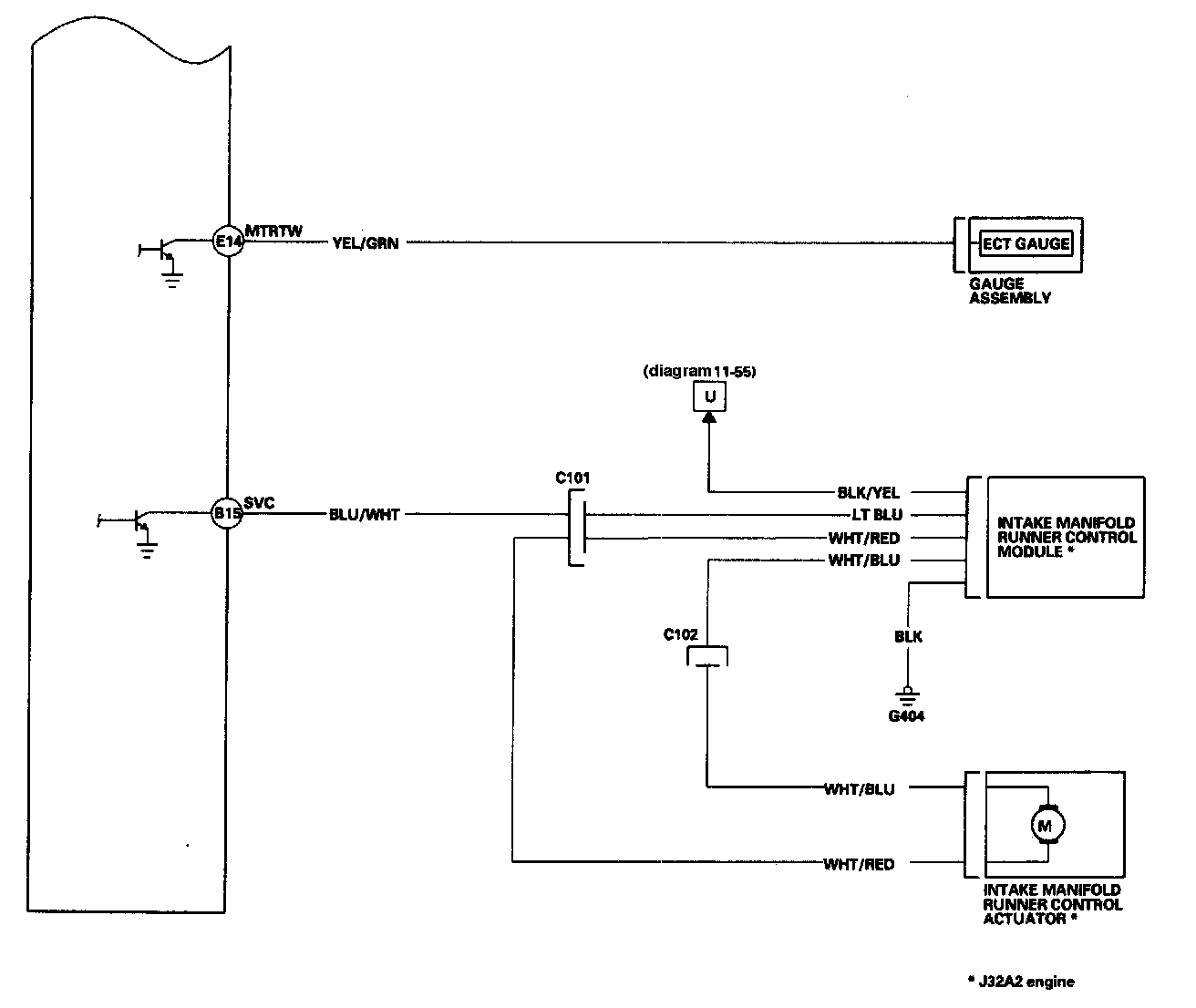

ECM/PCM Circuit Diagram 11-49:




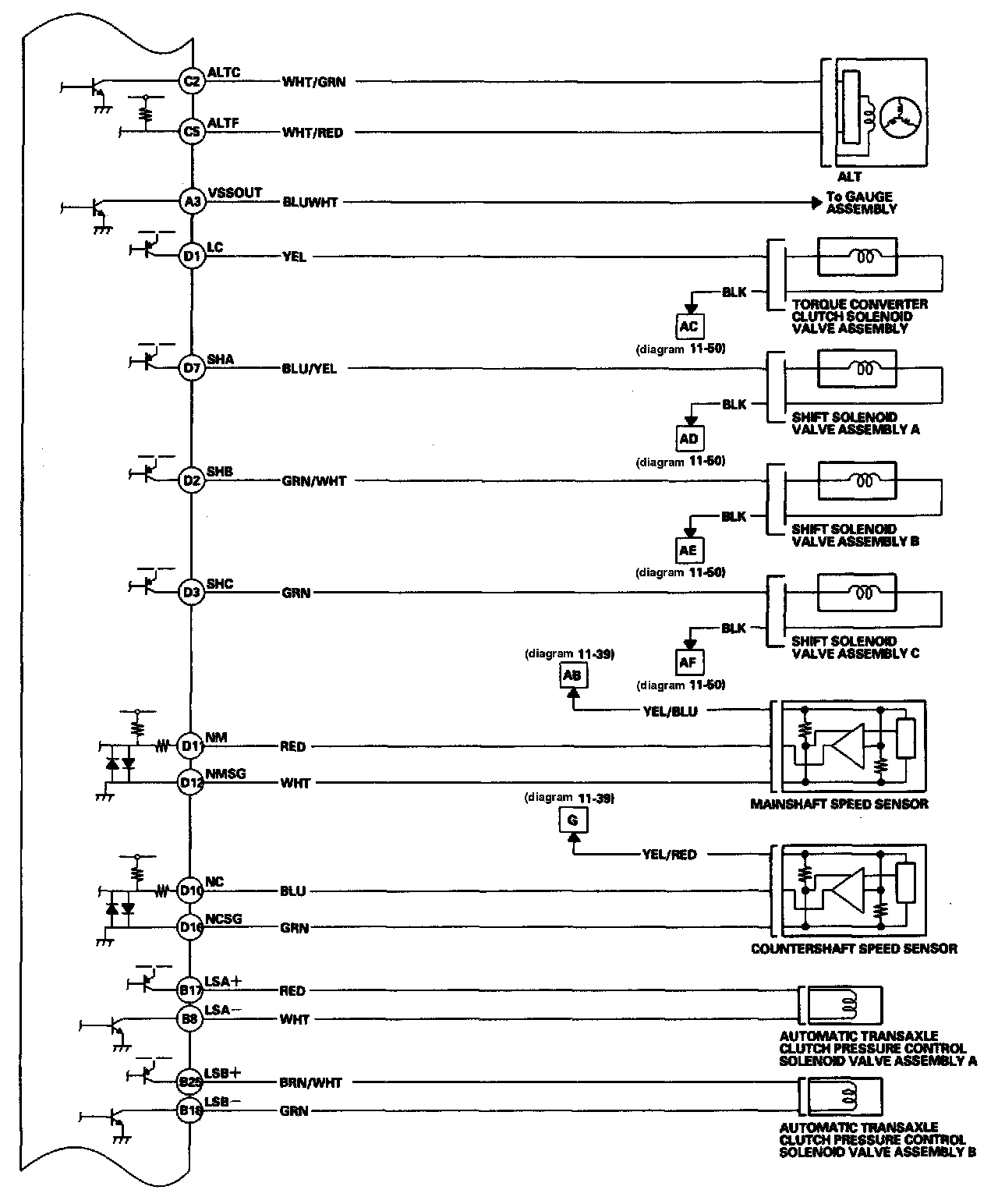

ECM/PCM Circuit Diagram 11-50:




ECM/PCM Circuit Diagram 11-51:




ECM/PCM Circuit Diagram 11-52:




ECM/PCM Circuit Diagram 11-53:




ECM/PCM Circuit Diagram 11-54:




ECM/PCM Circuit Diagram 11-55:




ECM/PCM Circuit Diagram 11-56:




ECM/PCM Circuit Diagram 11-57:




ECM/PCM Circuit Diagram 11-58:




ECM/PCM Circuit Diagram 11-59:




ECM/PCM Circuit Diagram 11-60:
