Fan Control Module Relay

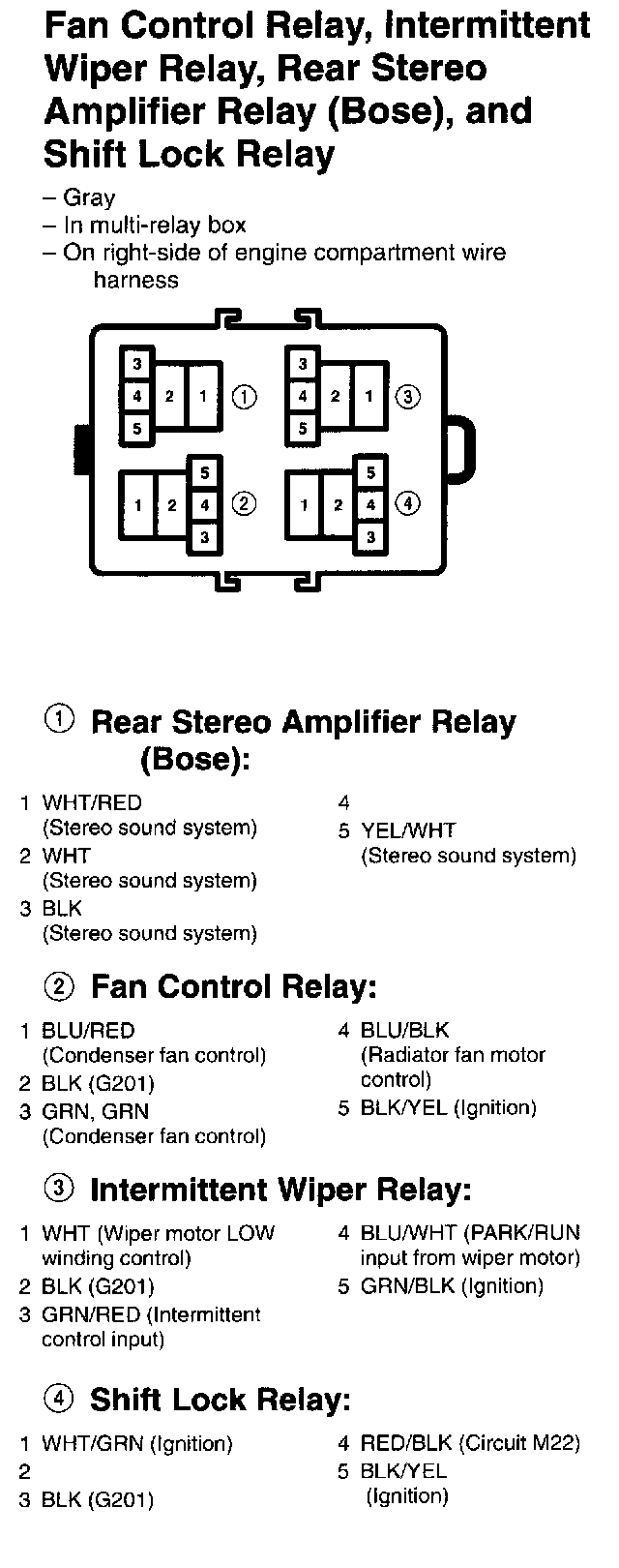

Fan Control Relay, Intermittent Wiper Relay, Rear Stereo Amplifier Relay(Bose), And Shift Lock Relay:
